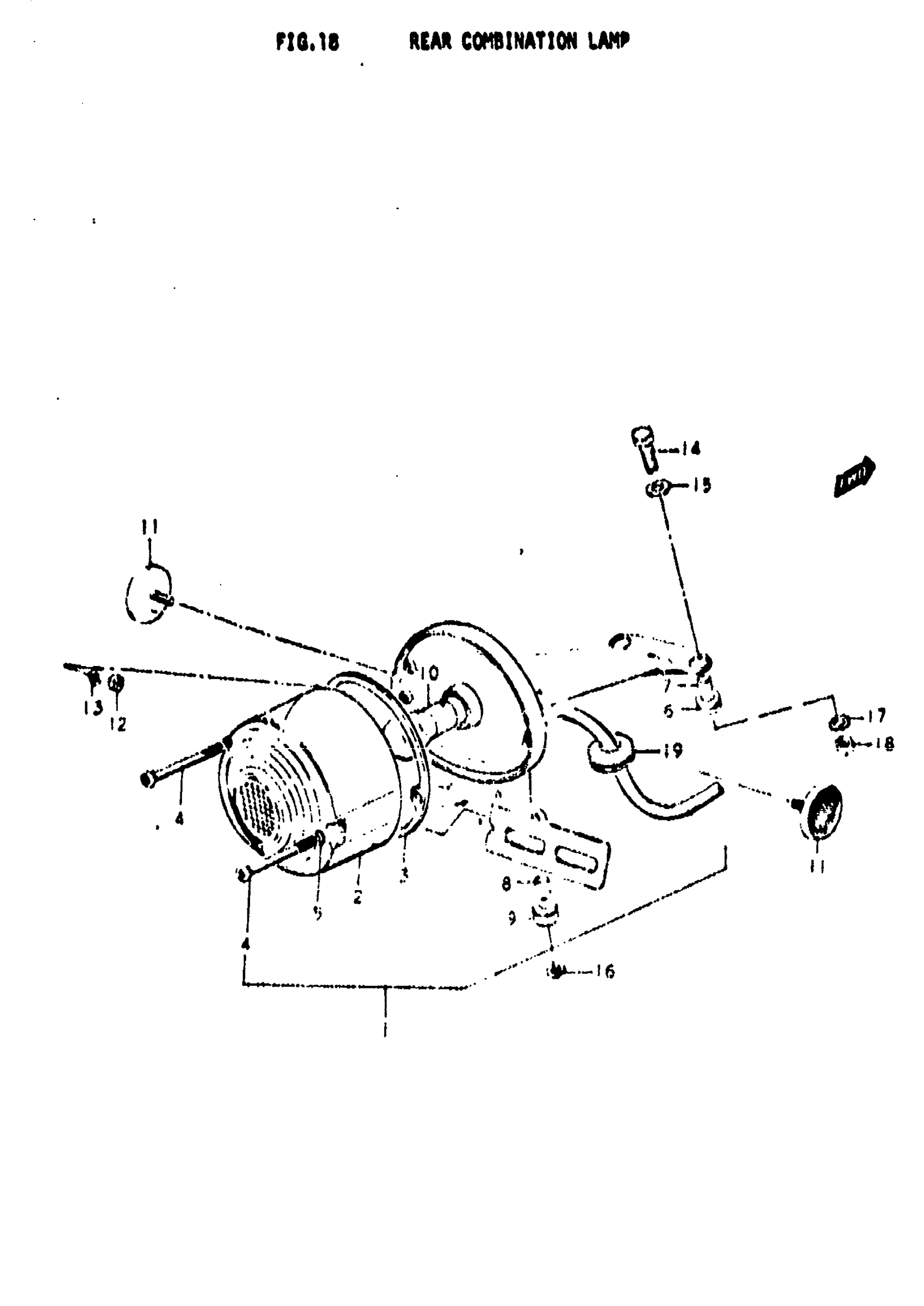

Suzuki TS250 (1972) REAR COMBINATION LAMP (TS250R) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | FROM 35000-30821-999; Includes Item(s) 2 - 10

35712-30010

Unavailable

2

LENS

36712-22610

Unavailable

3

GASKET

35713-15010

Unavailable

4

SCREW

02113-04558

Unavailable

5

WASHER | 4.2x7x0.5

35727-03010

Unavailable

6

CUSHION

35765-15010

Unavailable

7

SPACER | 7x10x8 This part replaces 35766-15010.

35766-37110

$4.97

8

SPACER | 7x10x2 This part replaces 35766-22210.

35766-37120

Unavailable

9

CUSHION

35765-22210

$3.62

10

BULB | 6V, 21/3CP US#1154

09471-06009

$3.66

11

REFLEX REFLECTOR

35970-22611

Unavailable

12

NUT This part replaces 08311-11058.

08310-00057

$1.83

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

14

BOLT, REAR This part replaces 01112-06308.

01500-06307

$3.17

15

WASHER (6.5X20X1.2) | 6.5x20x1.7 This part replaces 09160-06027.

09160-06077

$1.89

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

17

LOCK WASHER This part replaces 08323-21068.

08323-31068

Unavailable

18

.NUT This part replaces 08311-11068.

08310-00067

$1.83

19

GROMMET

09308-07002

$2.13
