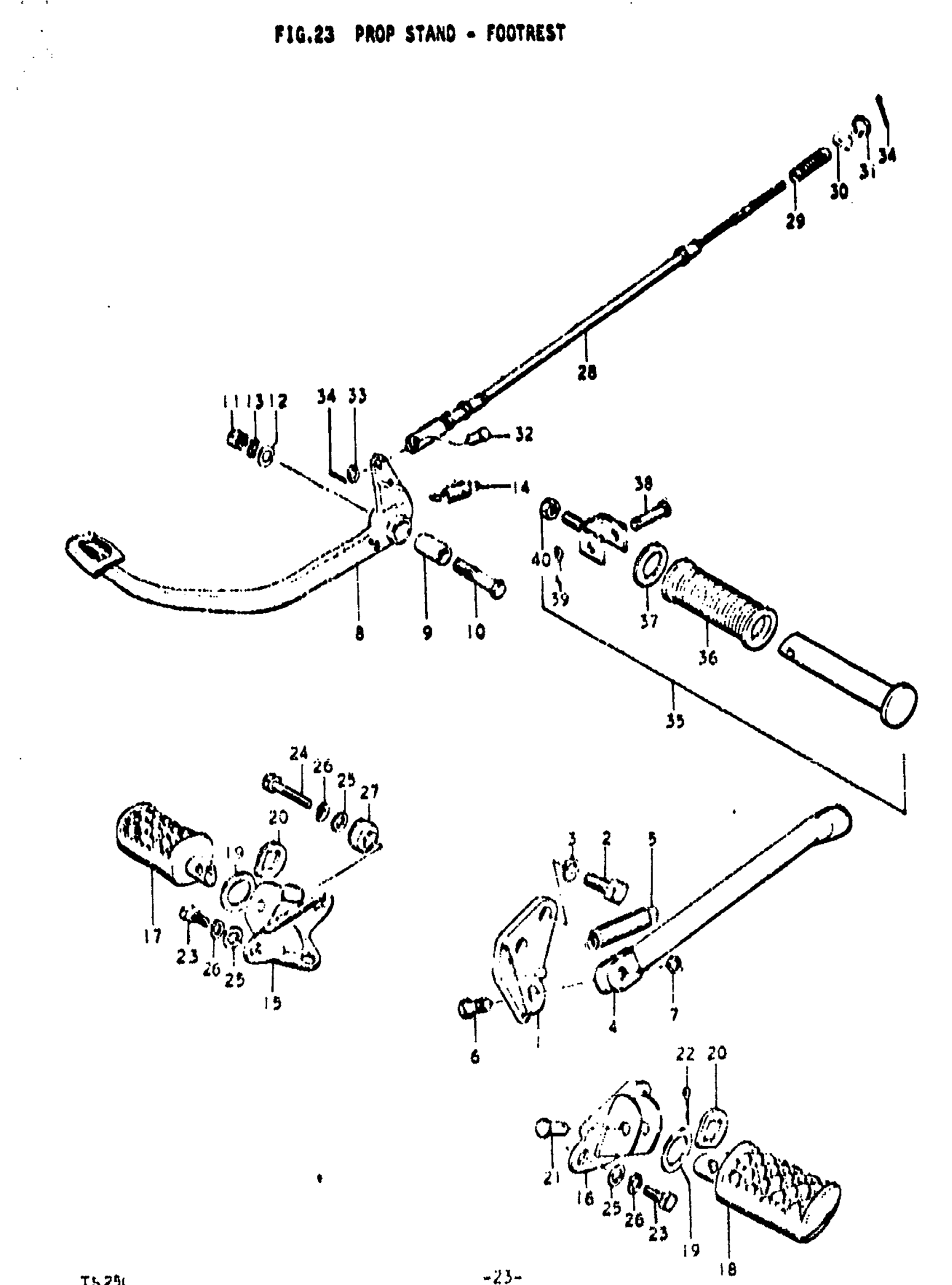

Find the part on the Prop Stand - Footrestbar diagram for your 1972 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS250 Prop Stand - Footrestbar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, PROP STAND

42330-30000

1
Out of stock

2

BOLT This part replaces 01111-10258.

01500-10257

2
Out of stock

3

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

4

STAND, PROP This part replaces 42310-30000.

42310-30001

1
Out of stock

5

SPRING This part replaces 09443-14005.

09443-14017

1
Out of stock

6

BOLT | 10x30

09100-10067

1
Out of stock

7

NUT | R This part replaces 08312-31108.

08310-00107

1
Out of stock

7

NUT | J This part replaces 08312-32108.

08310-00107

1
Out of stock

8

PEDAL, BRAKE

43110-30000

1
Out of stock

9

SPACER | 10.4x16x30

09180-10001

1
Out of stock

10

BOLT | 10x50

09100-10014

1
Out of stock

11

NUT This part replaces 08312-11108.

08310-00107

1
Out of stock

12

WASHER This part replaces 08322-21108.

08322-01107

1
Out of stock

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

14

SPRING

09443-14003

1
Out of stock

15

HOLDER, FOOTREST RH

43510-30000

—
Out of stock

16

HOLDER, FOOTREST LH

43520-30000

—
Out of stock

17

RUBBER, RH | R; TO 43550-25300 CIRCLE SHAPED This part replaces 43550-25000.

43550-25301

1
Out of stock

17

FOOTREST RH | J; FROM 43550-25300 SQUARE SHAPED

43550-25301

1
Out of stock

18

RUBBER, LH | R; TO 43560-25300 CIRCLE SHAPED This part replaces 43560-25000.

43560-25301

1
Out of stock

18

FOOTREST LH | J; FROM 43560-25300 SQUARE SHAPED

43560-25301

1
Out of stock

19

WASHER | R; CIRCLE SHAPED This part replaces 09160-22002.

09160-22033

2
Out of stock

20

WASHER | J; SQUARE SHAPED

43581-25300

2
Out of stock

21

PIN

09200-08002

2
Out of stock

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

23

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

5
Out of stock

24

BOLT This part replaces 01122-08408.

01500-0840A

1
Out of stock

25

WASHER This part replaces 08322-21088.

08322-01087

6
Out of stock

26

6

$2.28

In stock

27

CUSHION, KICK STARTER LEVER

43534-16400

1
Out of stock

28

CABLE ASSY, REAR BRAKE | Includes Item(s) 29 - 31

58500-30000

1
Out of stock

29

BOOT

09287-05001

1
Out of stock

30

.PIN (13X18) This part replaces 09209-13003.

09209-13018

1
Out of stock

31

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

32

PIN

09200-05001

1
Out of stock

33

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

34

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

35

FOOTREST ASSY,P | Includes Item(s) 36 - 40 This part replaces 43600-03001.

43600-09D00

2
Out of stock

36

RUBBER, FOOTREST

43612-03001

2
Out of stock

37

WASHER | 19.5x32x2 This part replaces 09160-19006.

09160-19024

2
Out of stock

38

PIN

09200-06010

2
Out of stock

39

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

40

NUT | R This part replaces 08312-31108.

08310-00107

2
Out of stock

40

NUT | J This part replaces 08312-32108.

08310-00107

2
Out of stock
