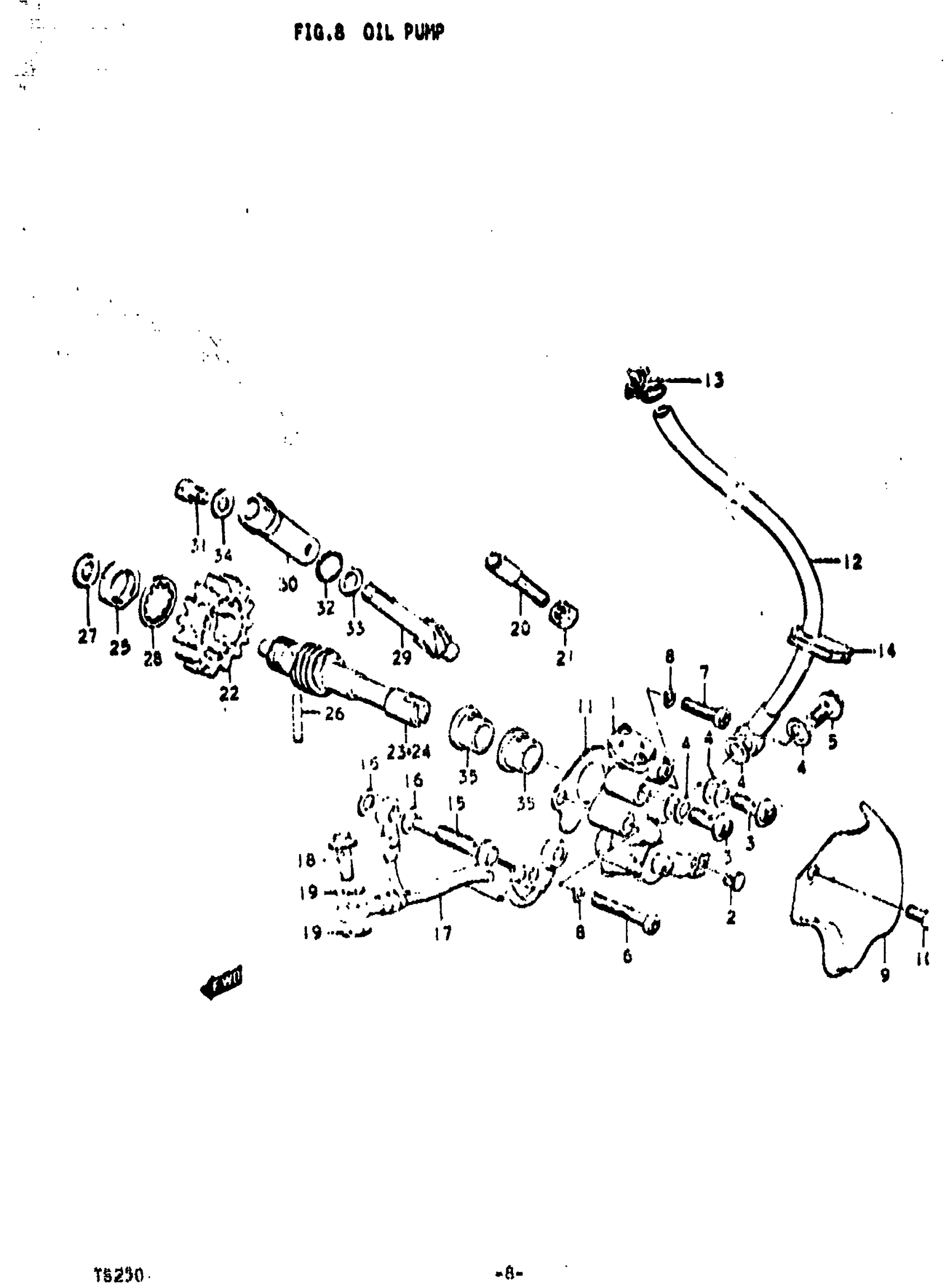

Suzuki TS250 (1972) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP SET | R; TO 16100-30840 INCLUDES REF.NO.245

16002-30804

Unavailable

1

OIL PUMP ASSY | J; FROM 16100-30840

16100-30011

Unavailable

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

3

UNION BOLT | 6x16 FROM 6760-19001

09360-06003

$3.76

4

GASKET | 6x11.6x1.5 This part replaces 09168-06002.

09168-06004

$1.49

5

UNION BOLT | 6x16

09360-06003

$3.76

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

CAP, OIL PUMP INSPECTION

11385-30000

Unavailable

10

SCREW This part replaces 02112-06108.

02112-06107

$1.49

11

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

12

HOSE, OIL INLET

16810-30030

Unavailable

13

OIL HOSE CLAMP | FROM 09400-00107 This part replaces 09400-10301.

09400-10302

Unavailable

14

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

15

UNION BOLT

09360-06009

$6.83

16

GASKET, UNION BOLT | 6.2x10x1

09168-06003

Unavailable

17

HOSE, OIL OUTLET

16820-30030

Unavailable

18

UNION BOLT | 6x16

09360-06003

$3.76

19

GASKET, UNION BOLT | 6.2x10x1

09168-06003

Unavailable

20

BOLT

09119-08014

$3.55

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

GEAR, OIL PUMP DRIVE | NT:15

16321-30030

Unavailable

23

SHAFT, OIL PUMP DRIVE | R; NT:6 TO 16322-30001

16322-30000

Unavailable

24

SHAFT, OIL PUMP DRIVE | J; NT:6, UTED WITH REF.NO.26,27

16322-30001

Unavailable

25

NUT

09140-14012

Unavailable

26

PIN

09261-04005

$1.67

27

THRUST WASHER

08221-08166

Unavailable

28

LOCK WASHER

08323-11149

Unavailable

29

GEAR, TACHO. DRIVEN (NT:9) | NT:9 This part replaces 26431-30000.

26431-30001

Unavailable

30

SLEEVE, TACHOMETER DRIVEN GEAR

26441-30000

Unavailable

31

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

32

O RING | ID:9.6, D:1.3

09280-10001

$2.02

33

WASHER | 8x13.7x1

09160-08003

$2.23

34

WASHER This part replaces 08322-21068.

08322-01067

$2.13

35

BUSHING

09301-12001

Unavailable
