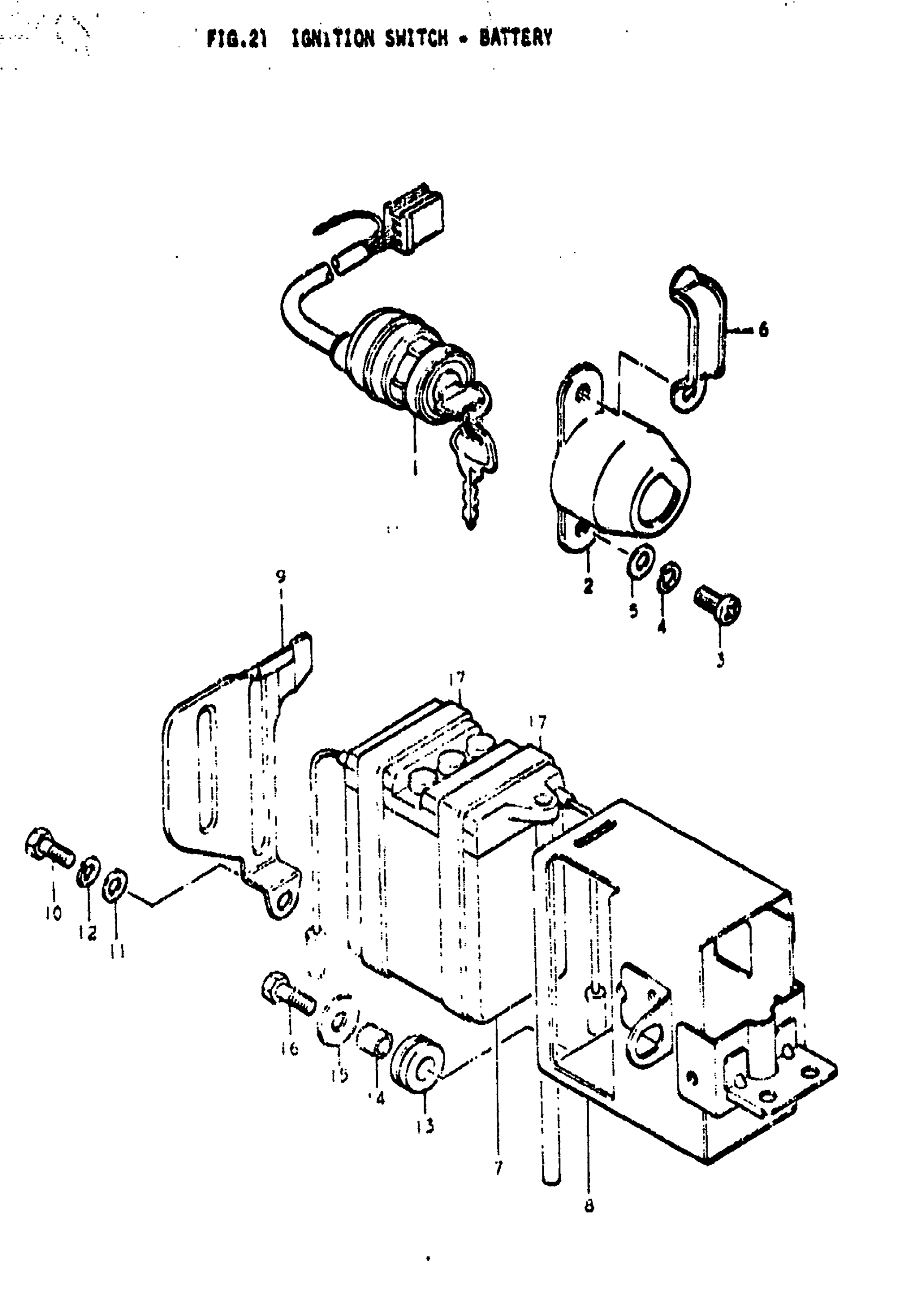

Suzuki TS250 (1972) IGNITION SWITCH - BATTERY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 37110-30610 This part replaces 37110-30611.

37110-30613

Unavailable

2

BRACKET, LGNITION SWITCH

37115-16401

Unavailable

3

SCREW This part replaces 02112-06128.

02112-06127

$1.84

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

CLAMP | FROM 09403-00093 This part replaces 09403-09307.

09403-09328

$1.77

7

NO DESCRIPTION AVAILABLE | 6V, 2AH This part replaces 33610-04010.

33610-04021

Unavailable

8

HOLDER, BATTERY | FROM 41540-16400 This part replaces 41540-30000.

41540-30002

Unavailable

9

PLATE, BATTERY

41561-30000

Unavailable

10

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

14

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

15

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

16

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

17

PROTECTOR, BATTERY

33651-30000

Unavailable
