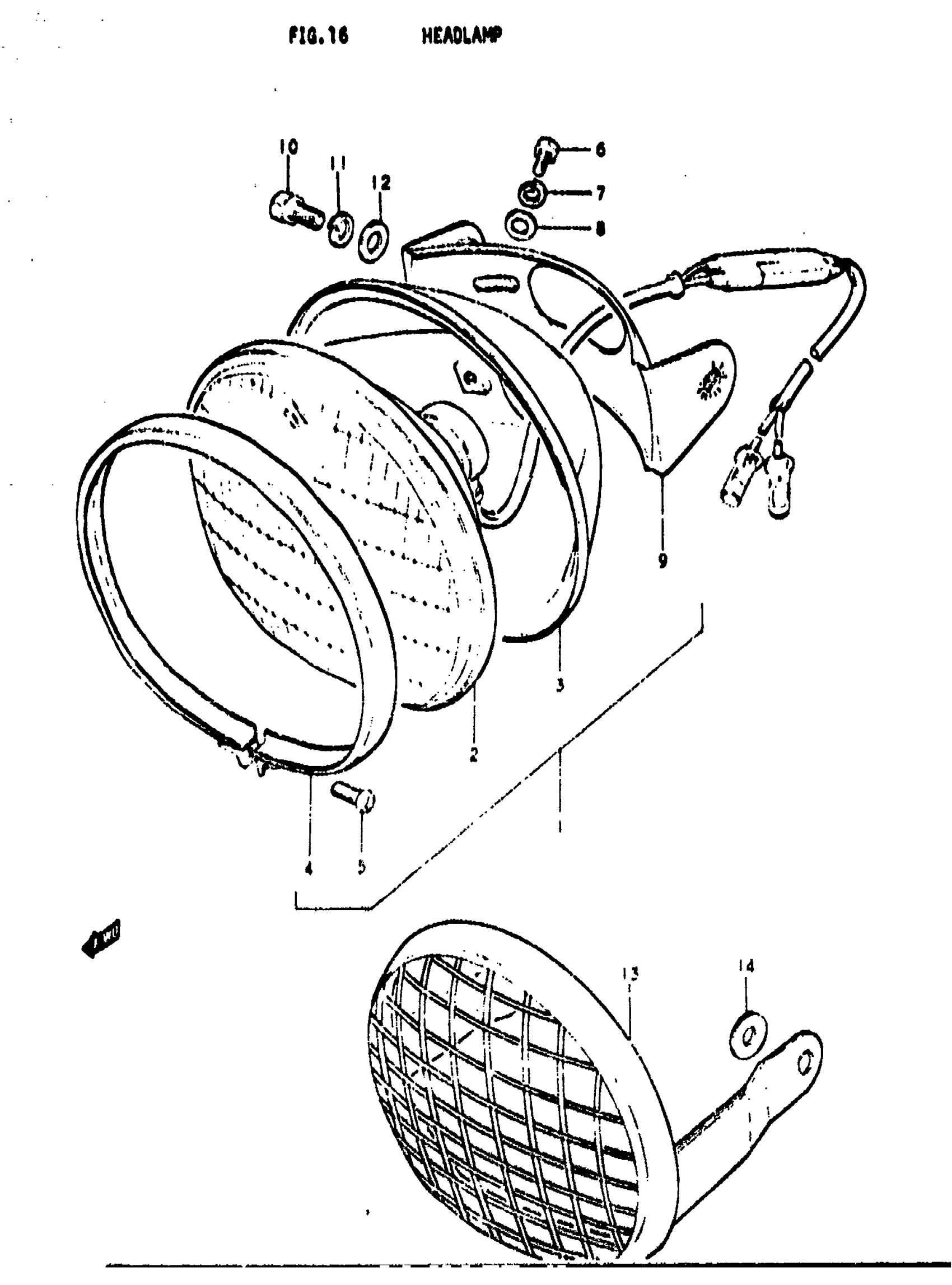

Suzuki TS250 (1972) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-20610

Unavailable

2

UNIT | 6V, 25/25W

35121-20611

Unavailable

3

RIM, UNIT

35131-20610

Unavailable

4

RIM

35127-20610

Unavailable

5

SCREW This part replaces 02111-04107.

02112-04107

$1.55

6

BOLT This part replaces 01112-06108.

01500-06107

$2.06

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

BRACKET, HEADLAMP

35151-20610

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 01221-10207.

01204-10207

Unavailable

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

WASHER This part replaces 08322-21108.

08322-01107

$2.15

13

PROTECTOR, HEADLAMP | OPT

48510-30700

Unavailable

14

WASHER | OPT This part replaces 08322-21108.

08322-01107

$2.15
