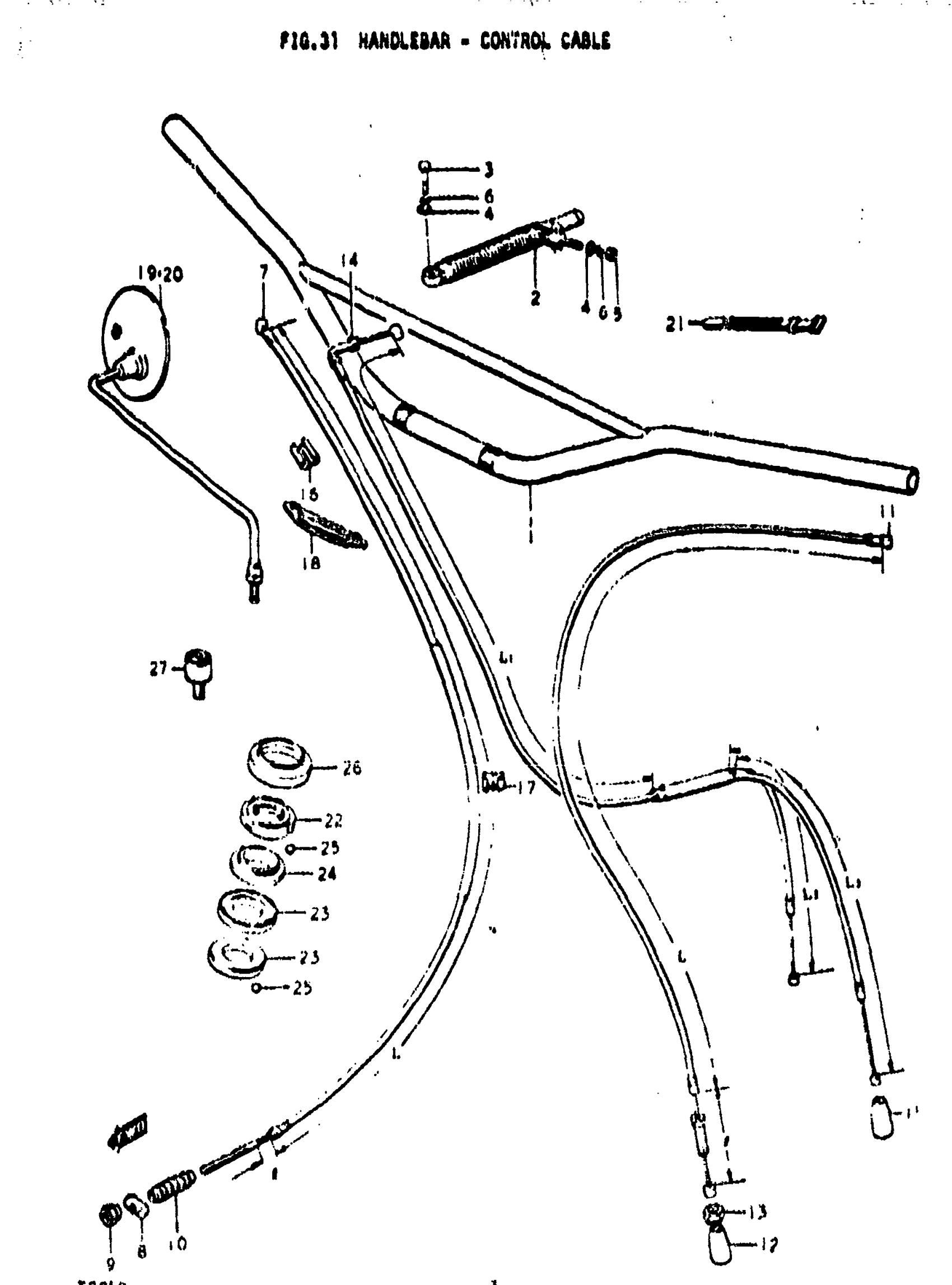

Suzuki TS250 (1972) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLFBAR | FROM 56110-30000

56110-28301

Unavailable

2

DAMPER ASSY, HANDLEBAR

51700-16400

Unavailable

3

BOLT This part replaces 01122-08308.

01500-08307

$3.04

4

WASHER This part replaces 08322-21088.

08322-01087

$2.13

5

NUT This part replaces 08312-21088.

08310-00087

$2.13

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

CABLE, FRONT BRAKE | R; L:1180, L:78 TO 58110-30001 This part replaces 58110-30000.

58110-30002

Unavailable

7

CABLE, FRONT BRAKE | J This part replaces 58110-30001.

58110-30002

Unavailable

8

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

9

.NUT This part replaces 09150-06001.

09150-06010

$3.10

10

DUST SEAL

09287-05001

Unavailable

11

CABLE ASSY, CLUTCH | L:1110, L:106; Includes Item(s) 12 - 13 This part replaces 58200-31000.

58200-31001

Unavailable

12

BOOT

09287-10001

Unavailable

13

NUT This part replaces 08312-11088.

08310-00087

$2.13

14

CABLE,THROTTLE | L1:845, L2:266 L3:463 This part replaces 58300-30000.

58300-30002

Unavailable

15

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

16

CLIP

09408-00001

Unavailable

17

CLIP

09408-00002

$2.30

18

GUIDE, CABLE

58621-28000

Unavailable

19

MIRROR ASSY,RR | 8SCREW This part replaces 56500-19010.

56500-19013

Unavailable

20

MIRROR ASSY,RR | 8SCREW This part replaces 56600-19010.

56600-19013

Unavailable

21

BAND | FROM 09410-00030

09407-12402

$3.04

22

NUT, STEERING STEM

51631-28000

$17.37

23

INNER RACE, STEERING

51611-33002

$13.81

24

OUTER RACE, STEERING

51621-30001

Unavailable

25

STEEL BALL

06111-08003

$1.49

26

DUST SEAL, STEERING

51643-30000

Unavailable

27

CUSHION, REAR VIEW MIRROR

56700-32000

Unavailable
