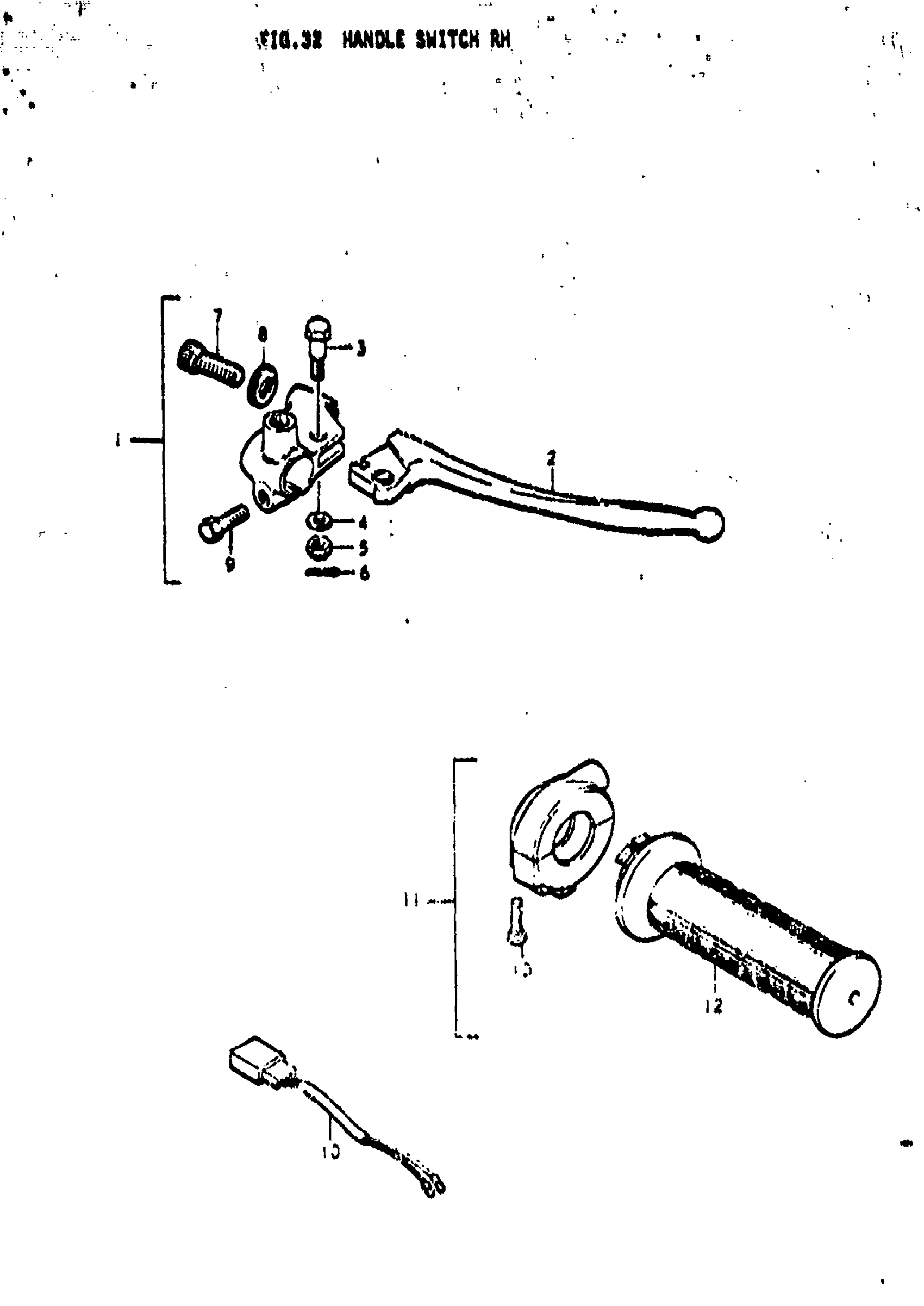

Suzuki TS250 (1972) HANDLE SWITCH RH Diagram

#

Description
Price

1

LEVER ASSY, BRAKE | Includes Item(s) 2 - 9 This part replaces 57300-30011.

57300-30501

Unavailable

2

LEVER, BRAKE | R; TO 57420-33010

57420-15900

Unavailable

2

LEVER, BRAKE | J; TO 57420-33010

57420-18601

Unavailable

2

LEVER, BRAKE | J This part replaces 57420-33010.

57420-18602

Unavailable

3

BOLT This part replaces 57431-11010.

57431-11013

$6.31

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NUT

57433-11010

$5.64

6

PIN This part replaces 04111-16158.

04111-1620A

$1.49

7

ADJUSTER, CABLE

57441-11010

$5.62

8

NUT, CABLE ADJUSTER

57442-11010

$2.79

9

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

10

LEAD CORD

57323-31700

Unavailable

11

GRIP ASSY, THROTTLE | Includes Item(s) 12 - 13

57100-28010

Unavailable

12

GRIP, THROTTLE

57110-28010

$34.76

13

SCREW This part replaces 02111-05207.

02112-05207

$1.97
