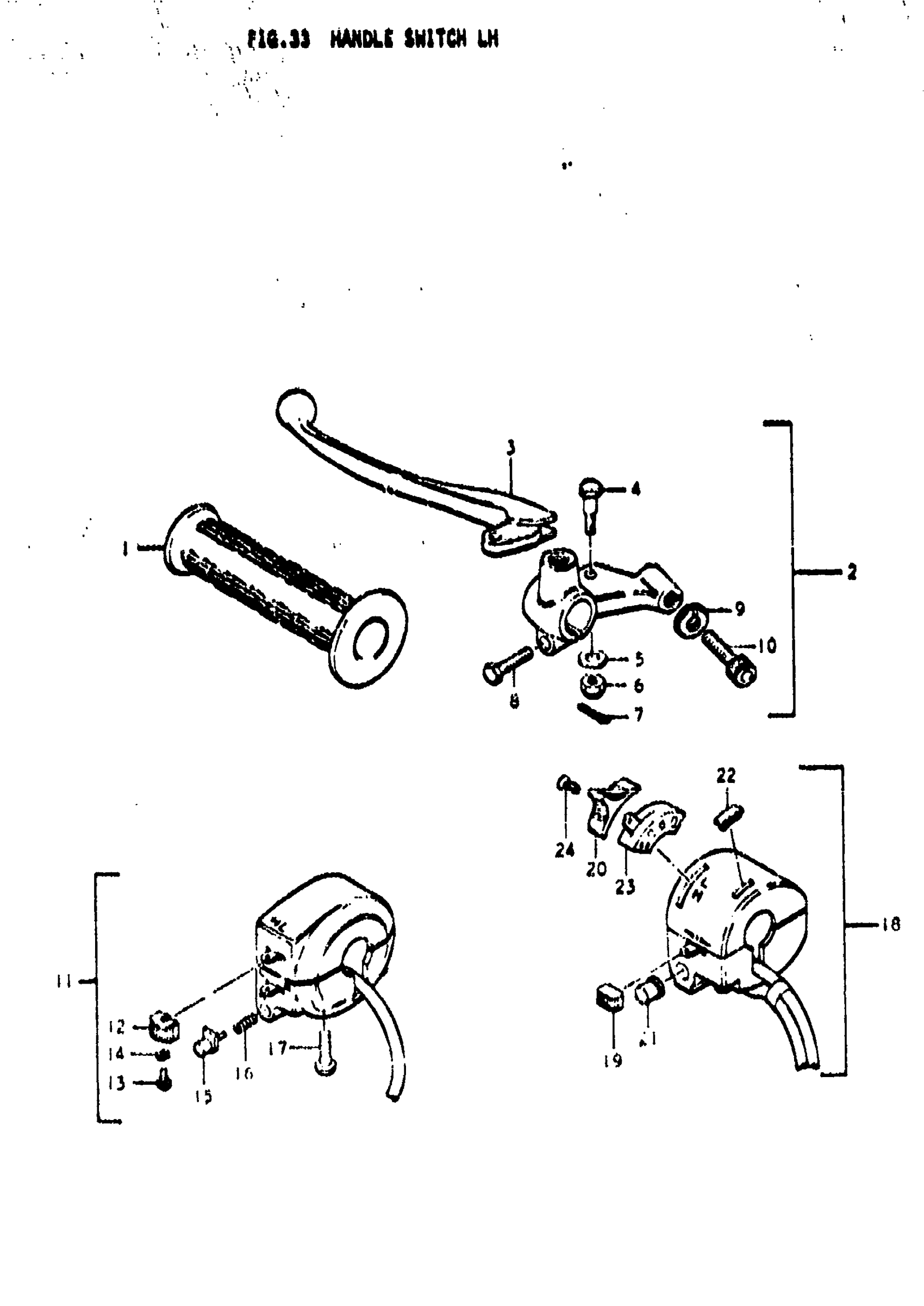

Suzuki TS250 (1972) HANDLE SWITCH LH Diagram

#

Description
Price

1

GRIP, LH

57211-15110

Unavailable

2

LEVER ASSY, CLUTCH | TO 57500-18610

57500-18010

Unavailable

2

LEVER ASSY, CLUTCH | R; TO 57500-08012

57500-18610

Unavailable

2

LEVER ASSY, CLUTCH | J; Includes Item(s) 3 - 10 This part replaces 57500-18012.

57500-30501

Unavailable

3

LEVER, CLUTCH | R; TO 57630-31010

57620-11010

Unavailable

3

LEVER, CLUTCH | J This part replaces 57620-31010.

57620-45010

Unavailable

4

BOLT This part replaces 57431-11010.

57431-11013

$6.31

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

NUT

57433-11010

$5.64

7

PIN This part replaces 04111-16158.

04111-1620A

$1.49

8

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

9

NUT, CABLE ADJUSTER

57442-11010

$2.79

10

ADJUSTER, CABLE

57441-11010

$5.62

11

SWITCH ASSY, HANDLE LH | R; TO 57700-28611 This part replaces 57700-28600.

57700-28611

Unavailable

11

SWITCH ASSY, HANDLE LH | R; Includes Item(s) 12 - 17

57700-28611

Unavailable

12

KNOB, SWITCH | R

57742-26010

Unavailable

13

SCREW | R This part replaces 02111-03067.

02112-0306B

$1.59

14

WASHER,LOCK | R This part replaces 08321-21038.

09162-03001

$1.49

15

BUTTON, HORN | R

57850-31010

Unavailable

16

SPRING, HORN BUTTON | R

57761-26010

Unavailable

17

SCREW | R

09125-05109

Unavailable

18

SWITCH ASSY, HANDLE LH | J; Includes Item(s) 19 - 24 This part replaces 57700-28610.

57700-28611

Unavailable

19

KNOB, SWITCH | J

57742-28050

Unavailable

20

KNOB, DIMMER SWITCH | J; FROM 57712-28050

57712-28051

Unavailable

21

BUTTON, HORN | J

57751-28050

Unavailable

22

CAP, HANDLA SWITCH | J

57715-28610

Unavailable

23

BLOCK, DIMMER SWITCH | J

57353-28050

Unavailable

24

SCREW | J This part replaces 02121-03068.

02122-03067

$1.80
