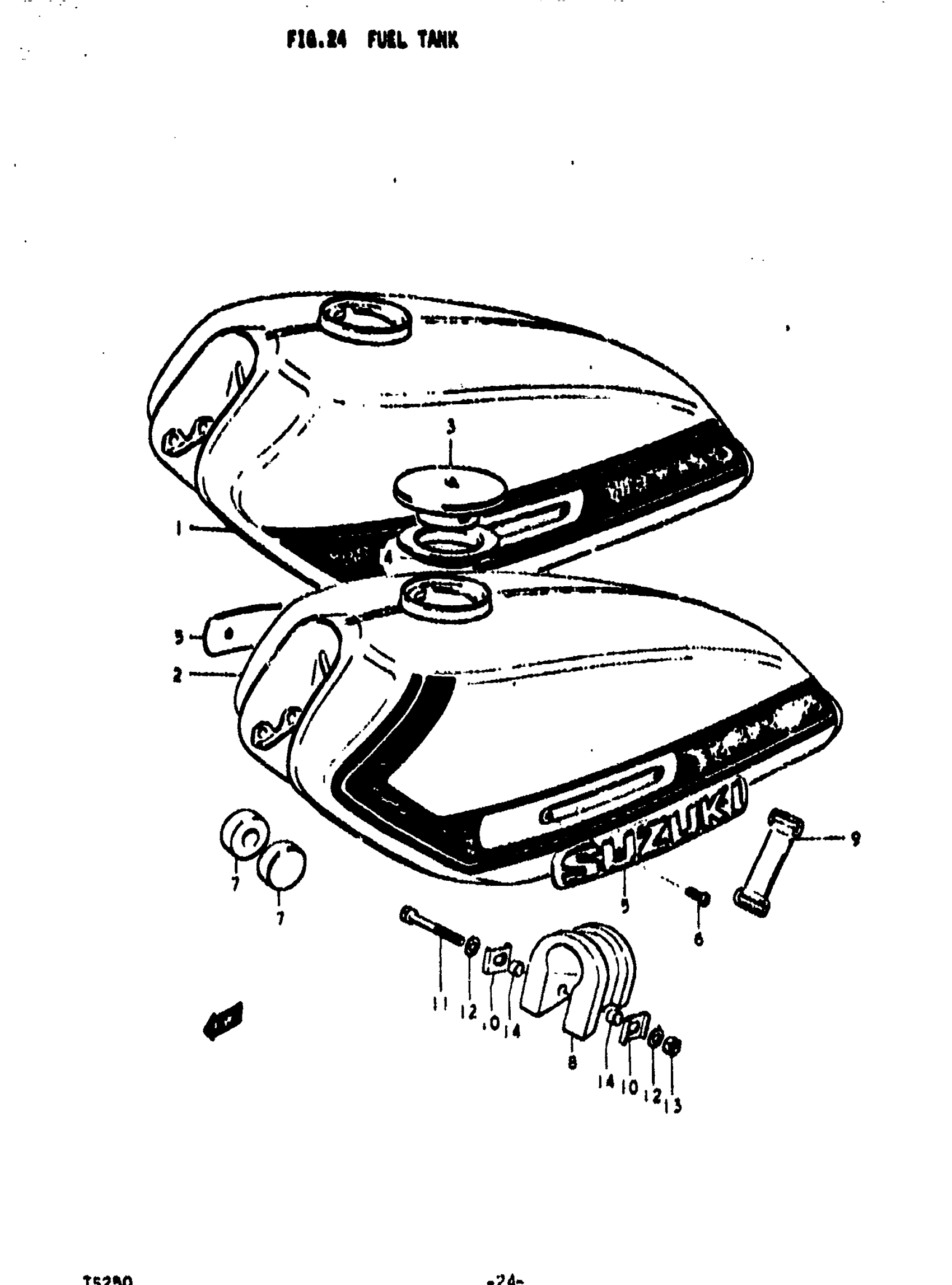

Suzuki TS250 (1972) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | R

44110-30000-565

Unavailable

1

TANK, FUEL | R

44110-30000-567

Unavailable

2

TANK, FUEL | J

44110-30600-544

Unavailable

2

TANK, FUEL | J; FROM 44110-30600-546

44100-30860-546

Unavailable

3

CAP, FUEL TANK | Includes Item(s) 4 This part replaces 44210-11000.

44210-36200

Unavailable

4

GASKET, FUEL TANK CAP

44248-11000

Unavailable

5

EMBLEM, FUEL TANK

68111-18600

Unavailable

6

SCREW This part replaces 02131-03067.

02122-03067

$1.80

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, FUEL TANK REAR

44541-30000

Unavailable

9

BAND | L:140, W:27

09462-00064

Unavailable

10

PLATE, REAR CUSHION

44549-30000

Unavailable

11

BOLT This part replaces 01112-06508.

01500-06507

$3.03

12

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

13

.NUT This part replaces 08311-11068.

08310-00067

$2.13

14

SPACER | 6.1x8x5.2 This part replaces 09180-06032.

09180-06246

$2.12
