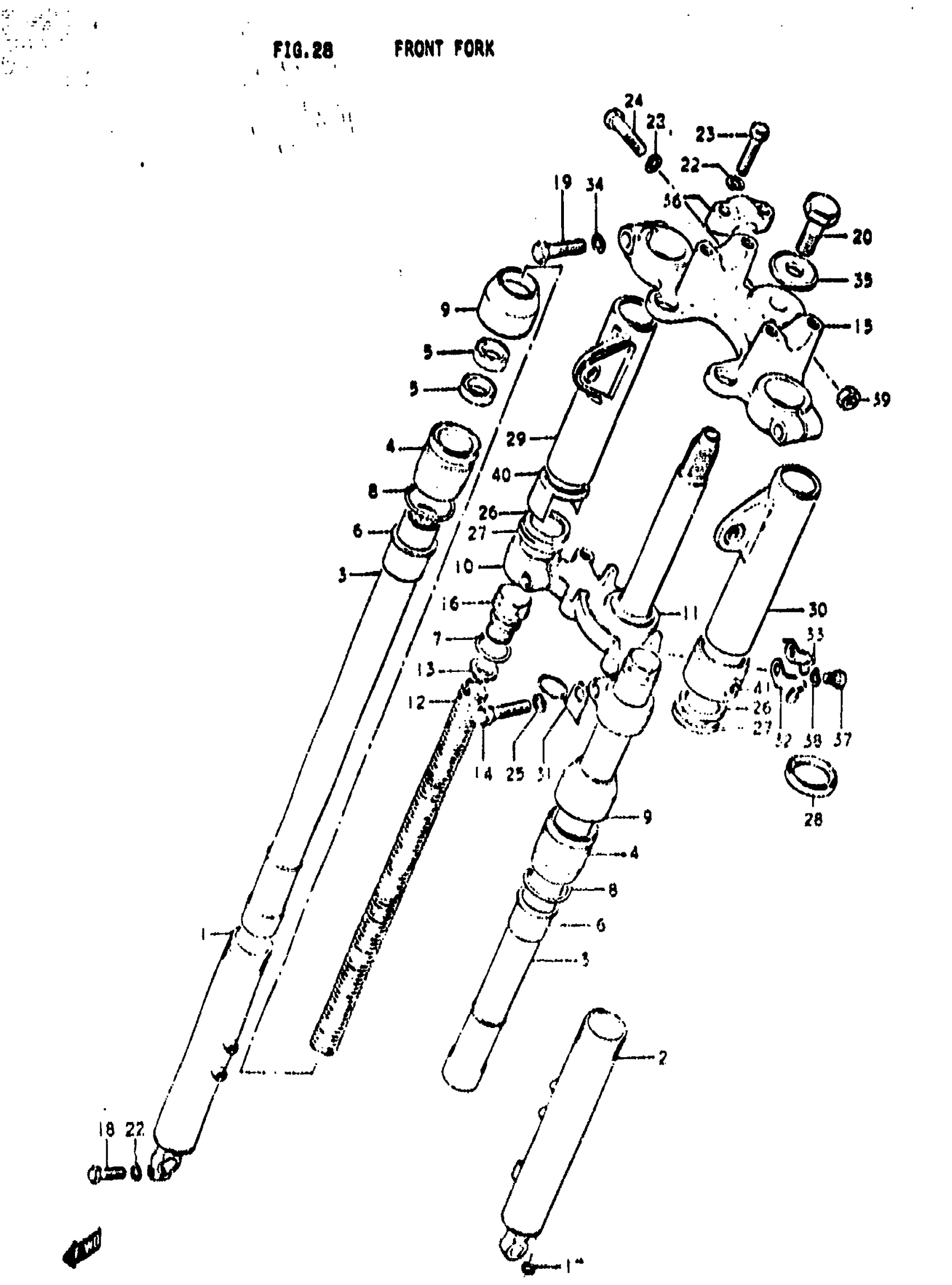

Suzuki TS250 (1972) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | Includes Item(s) 1 - 36

51100-30011

Unavailable

1

OUTER TUBE, RH

51130-30011

Unavailable

2

OUTER TUBE, LH

51140-30011

Unavailable

3

INNER TUBE

51110-30010

Unavailable

4

NUT, OUTER TUBE

51150-16413

Unavailable

5

OIL SEAL | TO 51153-16511 This part replaces 51153-11010.

51153-16511

Unavailable

5

OIL SEAL | FROM 51153-16510

51153-16511

Unavailable

6

GUIDE, INNER TUBE

51152-30010

Unavailable

7

O RING, INNER TUBE

51117-16310

Unavailable

8

O RING, OUTER TUBE

51154-11010

Unavailable

9

DUST SEAL

51173-16411

Unavailable

10

STEERING STEM This part replaces 51410-30010.

51410-30601

Unavailable

11

OUTER RACE

51621-08000

Unavailable

12

SPRING

51171-30010

Unavailable

13

GUIDE, SPRING

51172-30010

Unavailable

14

BOLT, INNER TUBE LOWER | FROM 51451-28011

51451-28012

Unavailable

15

STEERING STEM HEAD | FROM 51311-30011-019

51311-30210-019

Unavailable

16

CAP This part replaces 51351-30010.

51351-40210

Unavailable

17

GASKET, DRAIN PLUG

51183-03010

$2.07

18

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

19

BOLT, INNER TUBE UPPER | L:38 TO 51451-15113

51451-15111

Unavailable

20

BOLT This part replaces 51351-20010.

51351-29400

$31.22

21

SCREW This part replaces 02111-04087.

02112-04087

$1.49

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

BOLT This part replaces 01221-08307.

01204-08307

$1.99

24

BOLT This part replaces 01122-10458.

01500-1045A

$3.04

25

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

26

CUSHION, FORK COVER

51553-11010

Unavailable

27

CUSHION, GULDE

51558-30010

Unavailable

28

GUIDE, BRACKET

51551-30010

Unavailable

29

BRACKET, HEADLAMP RH

51530-30011

Unavailable

30

BRACKET, HEADLAMP LH

51540-30011

Unavailable

31

CLIP, HERNESS

51455-28010

Unavailable

32

CLIP, CABLE | R

51453-30010

Unavailable

33

CLIP, CABLE | J

51453-30011

Unavailable

34

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

35

WASHER, STEERING STEM HEAD

51356-22011

Unavailable

36

HOLDER, HANDLEBER

56211-22011

Unavailable

37

SCREW | Includes Item(s) 38 - 41 This part replaces 02112-06108.

02112-06107

$1.49

38

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

39

NUT This part replaces 08312-11108.

08310-00107

$2.19

40

COVER, STEERING STEM RH | R

51554-30010

Unavailable

40

COVER, STEERING STEM RH | J

51554-30011

Unavailable

41

COVER, STEERING STEM LH | R

51557-30010

Unavailable

41

COVER, STEERING STEM LH | J; FROM 51557-30010

51557-30011

Unavailable
