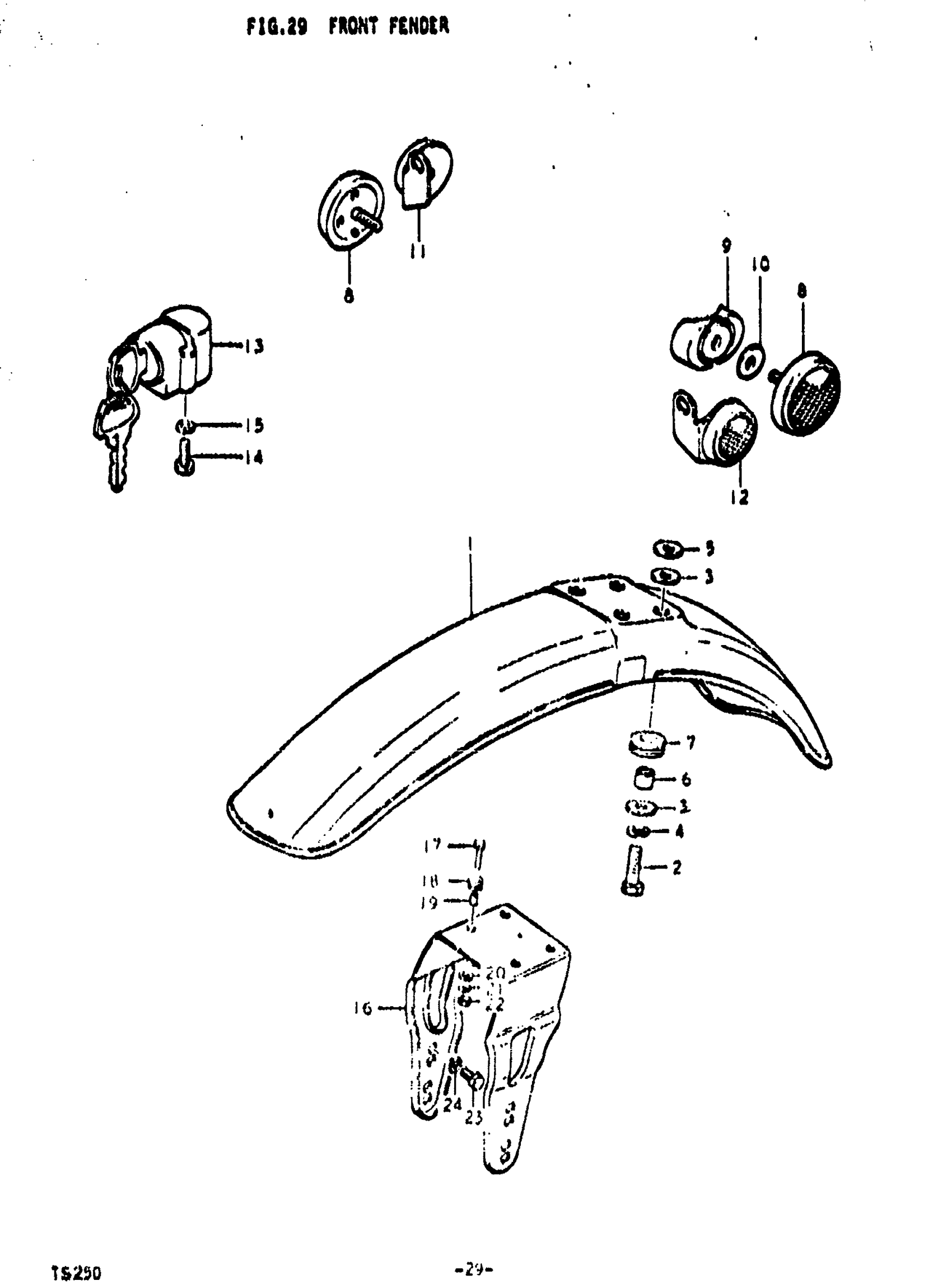

Suzuki TS250 (1972) FRONT FENDER Diagram

NO DESCRIPTION AVAILABLE | R; TO 53111-28300-185 This part replaces 53111-30600-185.

53111-30600-737

Unavailable

NO DESCRIPTION AVAILABLE | R This part replaces 53111-30600-186.

53111-28300-13L

Unavailable

FENDER, FRONT | J

53111-30600-184

Unavailable

FENDER, FRONT | J

53111-30600-137

Unavailable

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

SPACER | 6.5x20x5

09180-06041

Unavailable

SPACER | 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

$2.47

CUSHION

09320-10003

$2.38

REFLEX REFLECTOR FRONT | J This part replaces 35950-31010.

35950-49080

$17.24

SPACER, REFLEX REFLECTOR | J

35995-29000

Unavailable

WASHER (6.5X20X1.2) | J; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

REFLEX REFLECTOR, RH | R

35950-28610

Unavailable

REFLEX REFLECTOR, LH | R

35960-28610

Unavailable

LOCK ASSY, STEERING | R; TO 51900-30830 This part replaces 51900-30010.

51900-30831

Unavailable

LOCK ASSY, STEERING | J This part replaces 51900-30830.

51900-30831

Unavailable

SCREW This part replaces 02112-05128.

02112-05127

$1.97

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

BRACE, FRONT FENDER LOWER | OPT

53211-30700

Unavailable

BOLT | OPT This part replaces 01112-06208.

01500-06207

$2.28

CUSHION (8.5X20X8) | OPT This part replaces 09320-08007.

09320-08510

$1.97

SPACER | OPT

09180-06038

$1.98

WASHER (6.5X20X1.2) | OPT This part replaces 09160-06027.

09160-06077

$1.91

LOCK WASHER | OPT

08321-11068

Unavailable

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

BOLT | OPT This part replaces 01122-08128.

01500-08127

$2.62

.LOCK WASHER | OPT This part replaces 08321-21088.

08321-01087

$2.13
