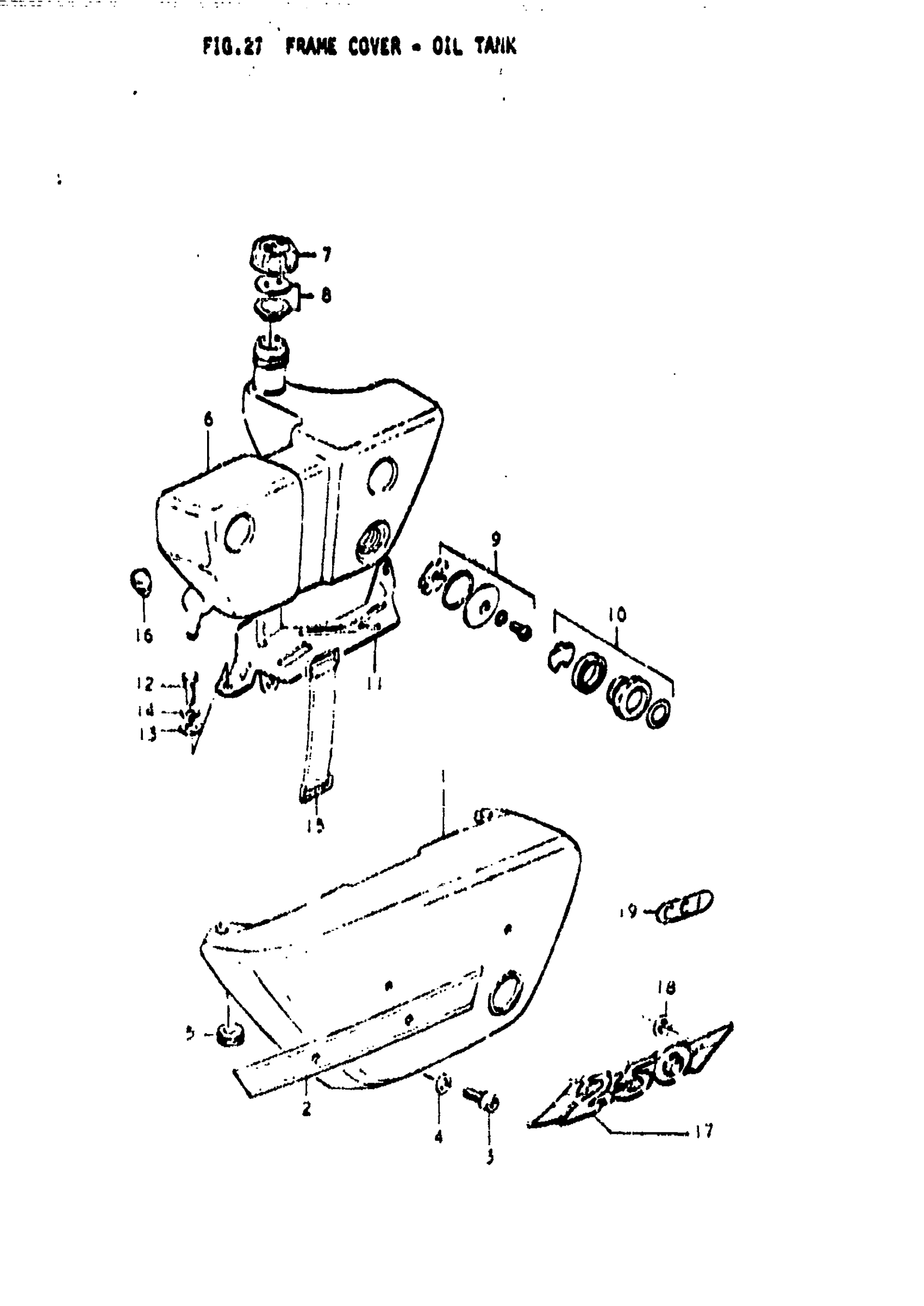

Suzuki TS250 (1972) FRAME COVER - OIL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | R; FROM 47211-30000-126 This part replaces 47211-30601-126.

47211-30601-019

Unavailable

1

NO DESCRIPTION AVAILABLE | J; FROM 47211-30000-137 This part replaces 47211-30601-137.

47211-30601-019

Unavailable

1

COVER, FRAME LH | J; TO 47211-30601-184

47211-30000-184

Unavailable

2

TAPE, LH | J

68146-30000-064

Unavailable

3

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

6

OIL TANK

44611-30001

Unavailable

7

CAP, OIL TANK This part replaces 44651-05000.

44651-05003

$5.05

8

GASKET SET | FROM 44600-35820 This part replaces 44600-35821.

44600-30833

$5.42

9

LENS SET, INSPECTION | R

44640-11844

Unavailable

10

OIL LEVEL INSPE | J This part replaces 44600-31830.

44600-31832

$11.07

11

HOLDER, OIL TANK

44820-30000

Unavailable

12

BOLT This part replaces 01112-06128.

01500-06127

$1.97

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

BAND

09462-00043

$4.11

16

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

17

EMBLEM, FRAME COVER

68141-30000

Unavailable

18

NUT This part replaces 09148-03004.

09148-03011

$1.96

19

EMBLEM | CCI

68171-26000

$3.59
