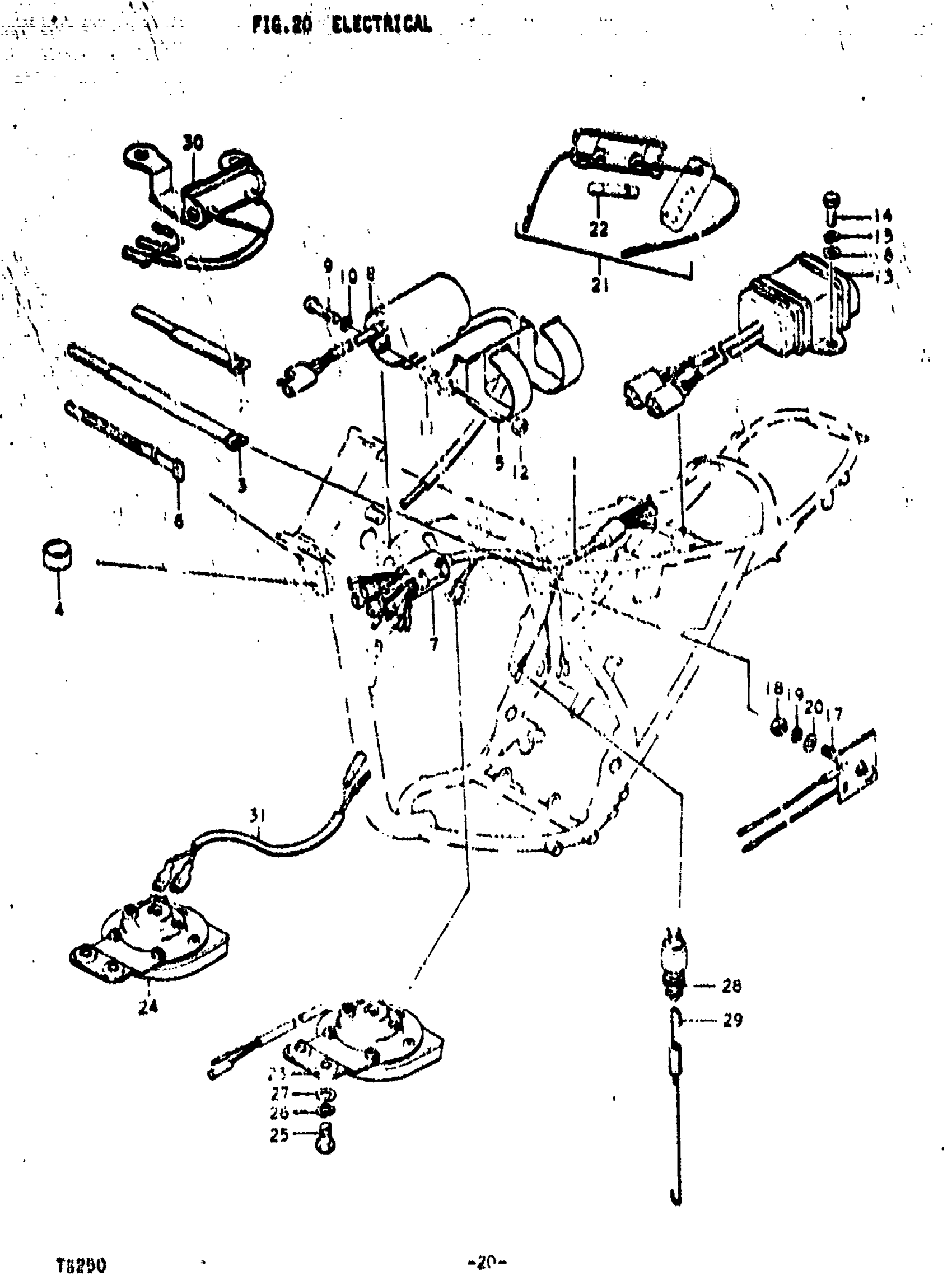

Suzuki TS250 (1972) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS

36610-30601

Unavailable

2

CLAMP | FROM 09410-00014 This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP(L:250) | FROM 09410-00022 This part replaces 09407-25301.

09407-25302

Unavailable

4

BAND, WIRING HARNESS

33881-58001

Unavailable

5

CLAMP, WIRING HARNESS BOLT

36652-30000

Unavailable

6

CLAMP | R; FROM 09410-00030J; FROM 09410-00030

09407-12402

$3.04

7

BOOT This part replaces 36618-30600.

36618-30610

$8.83

8

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$115.17

9

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

SPACER | 5.5x9x10

09180-05008

Unavailable

12

NUT This part replaces 08311-11038.

08310-0003B

$2.83

13

C.O.I. UNIT ASSY

31900-30020

Unavailable

14

FRM CVR,SCREW(6 | R This part replaces 09128-06011.

09128-06092

$1.92

14

BOLT | J This part replaces 09128-06006.

09128-06057

$1.65

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

RECTIFIER ASSY | FROM 32800-16420

32800-16421

Unavailable

18

NUT This part replaces 08311-11058.

08310-00057

$1.84

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

WASHER This part replaces 08322-21058.

08322-01057

$2.13

21

FUSE CASE ASSY | Includes Item(s) 22 This part replaces 36740-15010.

36740-15011

$9.38

22

FUSE | 15A

09481-15001

$2.06

23

HORN | R; TO 38500-16431 This part replaces 38500-16430.

38500-16431

Unavailable

24

HORN ASSY | J

38500-16431

Unavailable

25

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER This part replaces 08322-21088.

08322-01087

$2.13

28

SWITCH ASSY, BRAKE LAMP

37610-53011

$30.75

29

SPRING This part replaces 09443-06021.

09443-06045-XC0

Unavailable

30

RESISTOR ASSY | OPT FROM 36500-30700

36500-30701

Unavailable

31

LEADWIRE, HORN | J

36870-08030

Unavailable
