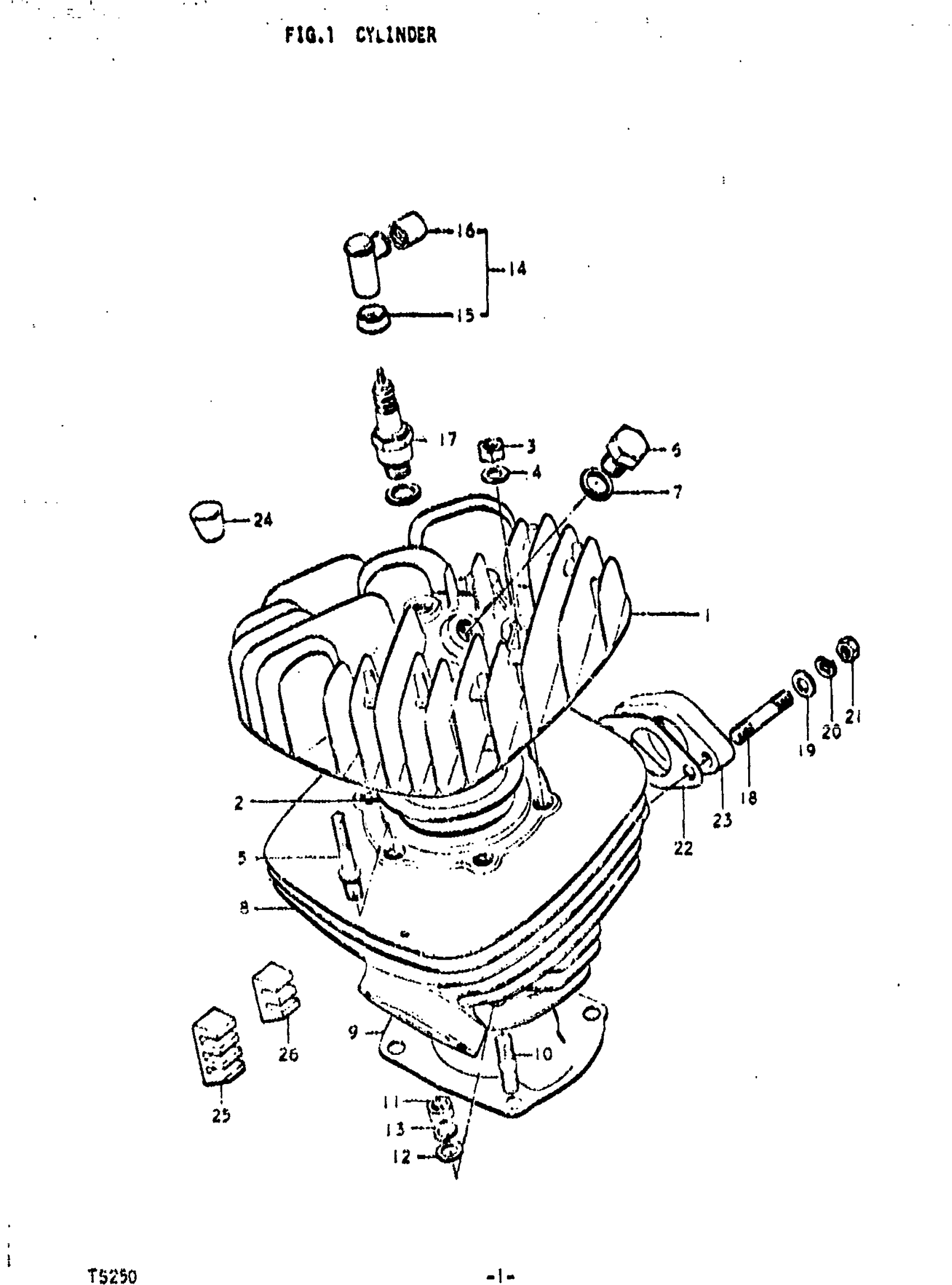

Suzuki TS250 (1972) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-30000

Unavailable

2

GASKET, CYLINDER HEAD

11141-16300

Unavailable

3

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

4

WASHER This part replaces 08322-21088.

08322-01087

$2.13

5

STUD BOLT

09108-08018

$3.18

6

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

7

GASKET | 15.7x19.5x2

09168-14004

$1.83

8

CYLINDER

11210-30000

Unavailable

9

GASKET,CYLINDER This part replaces 11241-30000.

11241-30001

Unavailable

10

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

11

NUT This part replaces 08312-11108.

08310-00107

$2.19

12

WASHER This part replaces 08322-11108.

08322-01107

$2.15

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

CAP SET,SPARK P | FROM 33503-10801; Includes Item(s) 15 - 16 This part replaces 33500-69810.

33500-69811

$22.48

15

SEAL, SPARK PLUG CAP | R; TO 33541-69010

33541-22000

Unavailable

15

SEAL, SPARK PLUG CAP | J

33541-69010

$4.37

16

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

17

SPARK PLUG (NGK,BR7ES) | NGK, B-7ES FROM 09482-00055 This part replaces 09482-00089.

09482-00117

$3.03

17

SPARK PLUG ASSY | ND, W22ES FROM 09482-00046

09482-00090

Unavailable

17

SPARK PLUG | NGK, 8-77EC OPT This part replaces 09482-00029.

09482-00091

$3.01

17

SPARK PLUG ASSY | NGK, B-8ES OPT FROM 09482-00056

09482-00091

$3.01

18

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.29

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

GASKET, CARBURETOR

13125-30000

Unavailable

23

INSULATOR, CARBURETOR

13129-30000

Unavailable

24

PAD, CYLINDER HEAD This part replaces 11151-25000.

11252-25000

$4.52

25

RUBBER PAD, CYLINDER LH This part replaces 11251-16400.

11261-16400

Unavailable

26

PAD, CYLINDER LH

11261-16400

Unavailable
