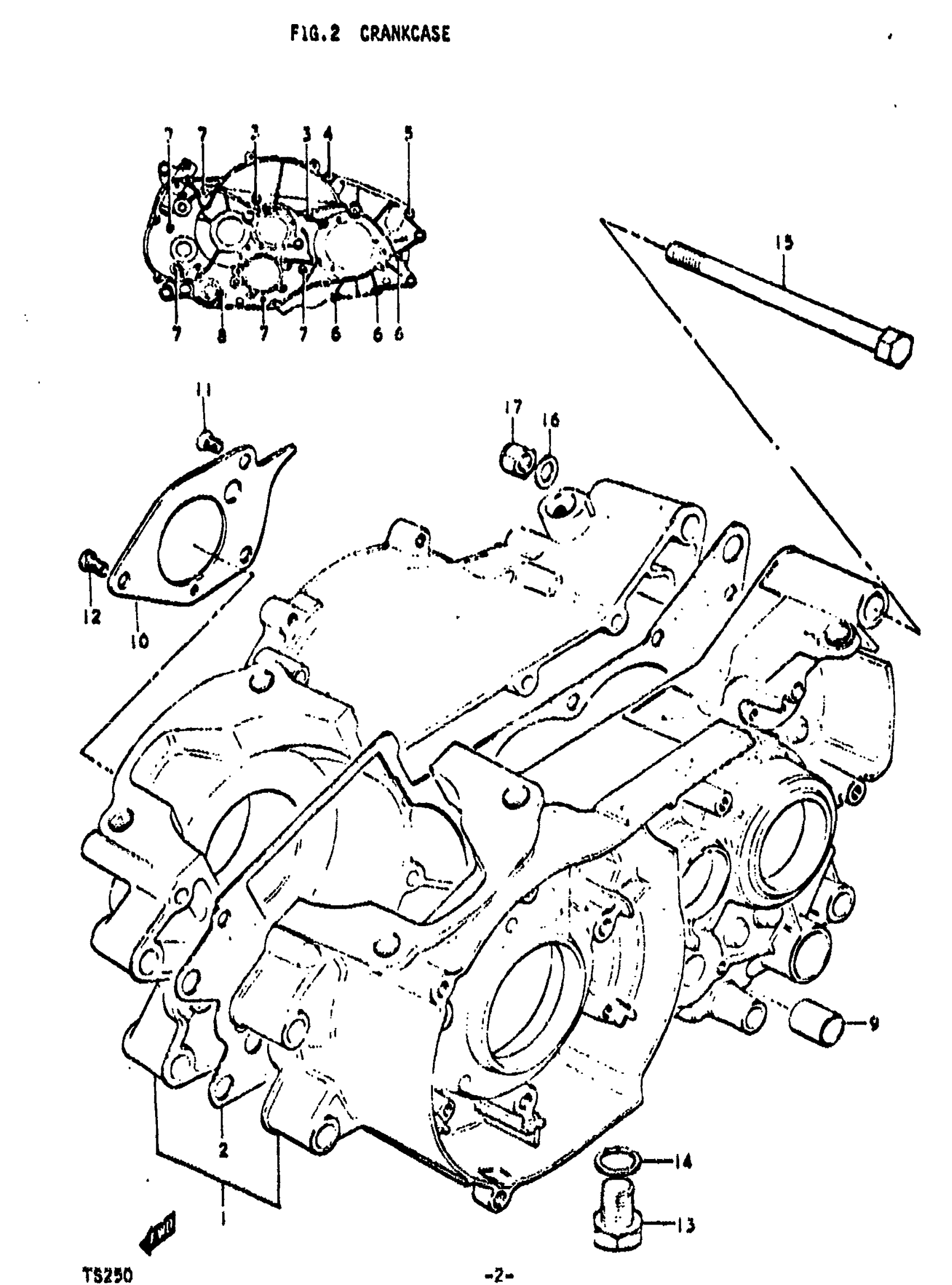

Suzuki TS250 (1972) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | R; TO 11300-30830 This part replaces 11300-30802.

11300-30862

Unavailable

1

CRANKCASE SET | J; Includes Item(s) 2 - 9

11300-30830

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-30000.

11481-30001

Unavailable

3

6 X 75 CROSS SC This part replaces 02122-06758.

02122-0675A

$3.02

4

SCREW This part replaces 02112-06708.

02112-06707

$2.53

5

SCREW

02112-06657

$2.62

6

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

7

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

8

SCREW This part replaces 02112-06358.

02112-06357

$1.78

9

PIN This part replaces 09206-13001.

04211-13189

$2.19

10

PLATE, OIL RESERVOIR | FROM 12561-30001

12521-30001

Unavailable

11

SCREW This part replaces 02122-06168.

02122-06167

$1.49

12

SCREW This part replaces 02112-06168.

02112-06167

$1.49

13

PLUG, DRAIN This part replaces 09247-14010.

09247-14025

$2.79

14

GASKET, DRAIN PLUG | 15.7x19.5x2 FROM 09168-14002

09168-14004

$1.83

15

BOLT | 10x48 This part replaces 09100-10060.

09116-10032

$5.77

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

NUT

09159-10001

Unavailable
