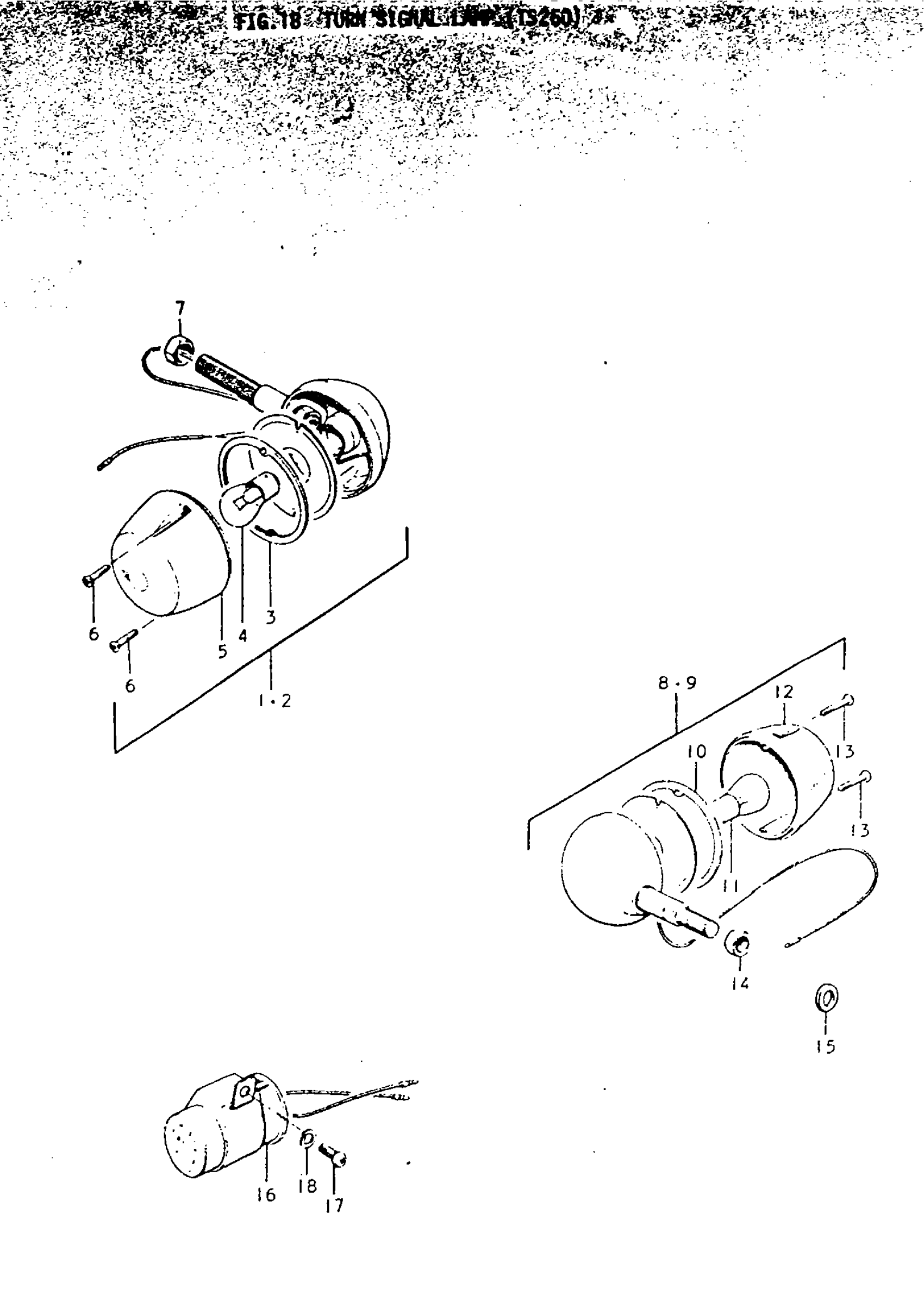

Suzuki TS250 (1970) TURN SIGNAL LAMP (TS260) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL R

35601-16410

Unavailable

2

LAMP ASSY, FRONT TURN SIGNAL L | Includes Item(s) 3 - 7

35602-16410

Unavailable

3

GASKET

35613-03610

$13.34

4

BULB

09471-06011

Unavailable

5

LENS

35612-12611

$12.50

6

SCREW This part replaces 02131-03167.

02132-03167

$1.49

7

NUT This part replaces 08312-31107.

08310-00107

$2.19

8

LAMP ASSY, REAR TURN SIGNAL RH

35603-16610

Unavailable

9

LAMP ASSY, REAR TURN SIGNAL LH | Includes Item(s) 10 - 14

35604-16610

Unavailable

10

GASKET

35613-03610

$13.34

11

BULB

09471-06011

Unavailable

12

LENS | RED

35652-22610

Unavailable

13

SCREW This part replaces 02131-03167.

02132-03167

$1.49

14

NUT This part replaces 08312-31107.

08310-00107

$2.19

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

RELAY ASSY, TURN SIGNAL | TO 38610-16411

38610-16410

Unavailable

17

SCREW This part replaces 02111-06128.

02112-06127

$1.84

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
