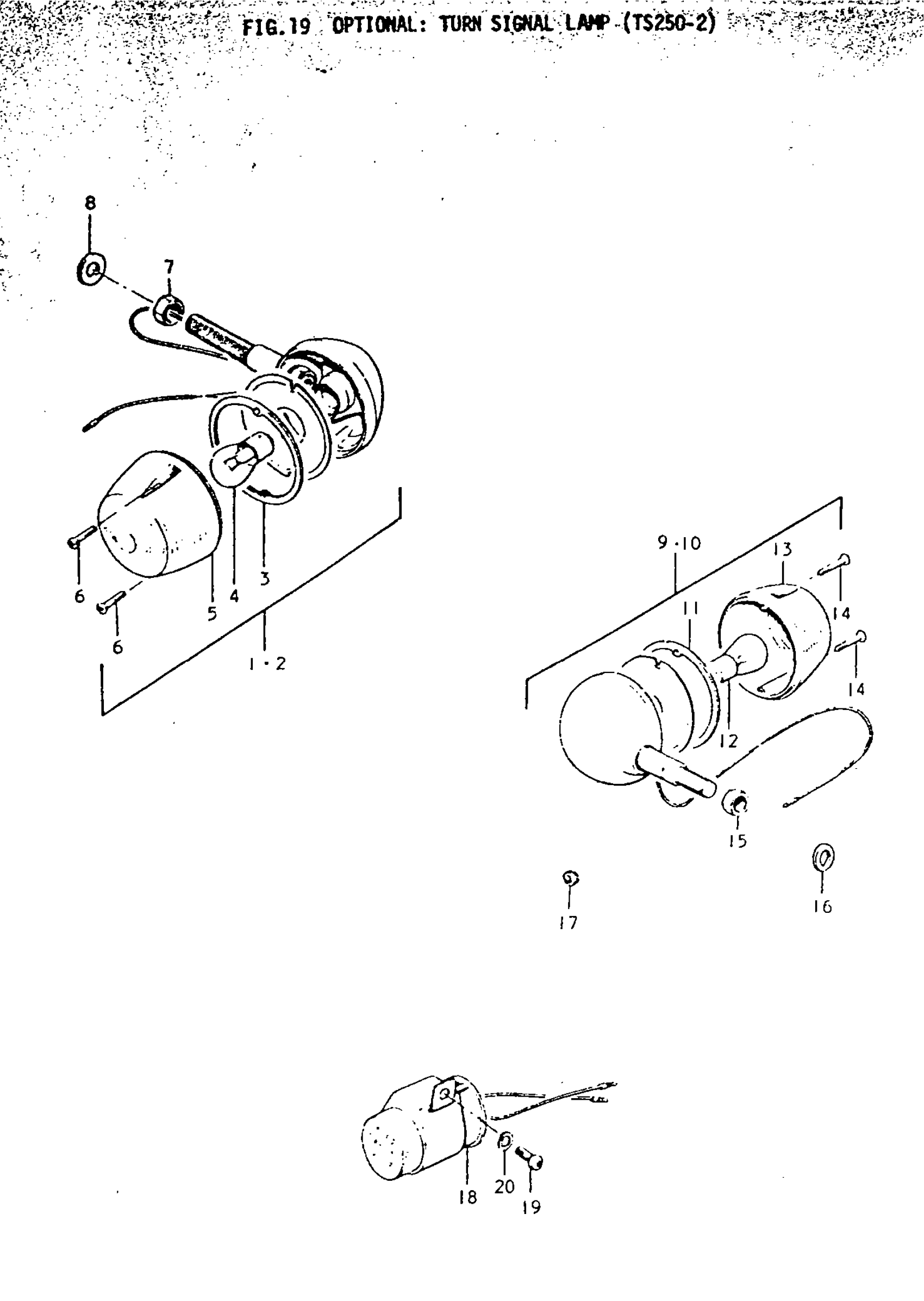

Suzuki TS250 (1970) TURN SIGNAL LAMP (TS250-2) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL R

35601-16410

Unavailable

2

LAMP ASSY, FRONT TURN SIGNAL L | Includes Item(s) 3 - 7

35602-16410

Unavailable

3

GASKET

35613-03610

Unavailable

4

BULB

09471-06011

Unavailable

5

LENS

35612-12611

$11.96

6

SCREW This part replaces 02131-03167.

02132-03167

$1.36

7

NUT This part replaces 08312-31107.

08310-00107

$2.25

8

WASHER This part replaces 08322-11108.

08322-01107

$1.95

9

LAMP ASSY, REAR TURN SIGNAL RH

35603-16610

Unavailable

10

LAMP ASSY, REAR TURN SIGNAL LH | Includes Item(s) 11 - 15

35604-16610

Unavailable

11

GASKET

35613-03610

Unavailable

12

BULB

09471-06011

Unavailable

13

LENS | RED

35652-22610

Unavailable

14

SCREW This part replaces 02131-03167.

02132-03167

$1.36

15

NUT This part replaces 08312-31107.

08310-00107

$2.25

16

WASHER This part replaces 08322-11108.

08322-01107

$1.95

17

GROMMET

09308-06003

Unavailable

18

RELAY ASSY, TURN SIGNAL | TO 38610-16411

38610-16410

Unavailable

19

SCREW This part replaces 02111-06128.

02112-06127

$1.89

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89
