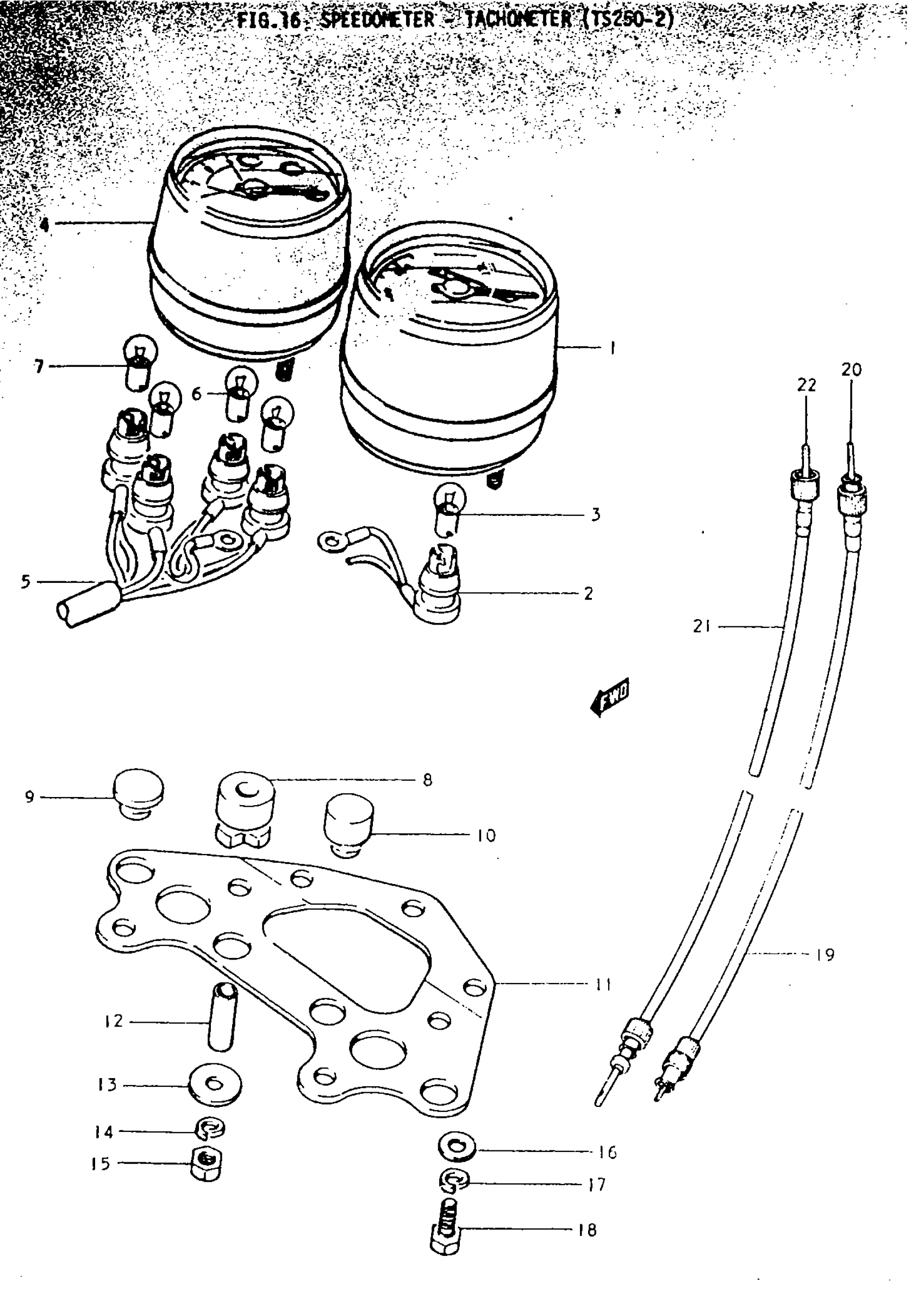

Suzuki TS250 (1970) SPEEDOMETER - TACHOMETER (TS250-2) Diagram

#

Description
Price

1

SPEEDOMETER ASSY | TO 34100-30620-999; Includes Item(s) 2 - 3

34100-16610

Unavailable

2

SOCKET

34173-16600

Unavailable

3

BULB | 6V, 3W

09471-06002

$2.25

4

TACHOMETER ASSY | Includes Item(s) 5 - 7

34200-16421

Unavailable

5

SOCKET ASSY

34270-16420

Unavailable

6

BULB | 6V, 3W

09471-06002

$2.25

7

BULB | 6V, 1.7W

09471-06001

$2.18

8

CUSHION NO. 1

34955-16420

$4.43

9

CUSHION NO. 2

34956-16420

Unavailable

10

CUSHION NO. 3

34957-16420

Unavailable

11

BRACKET, METER

34950-16420

Unavailable

12

SPACER

34972-16420

Unavailable

13

WASHER | 5.5x18x1.6 This part replaces 09160-06006.

09160-06084

$1.78

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

BOLT

01111-06128

Unavailable

19

CABLE SPEEDOMET | Includes Item(s) 20 This part replaces 34910-15130.

34910-44401

$26.05

20

CABLE, INNER

34911-16430

Unavailable

21

CABLE ASSY,TACH | Includes Item(s) 22 This part replaces 34940-16430.

34940-04721

Unavailable

22

CABLE, INNER

34941-16430

Unavailable
