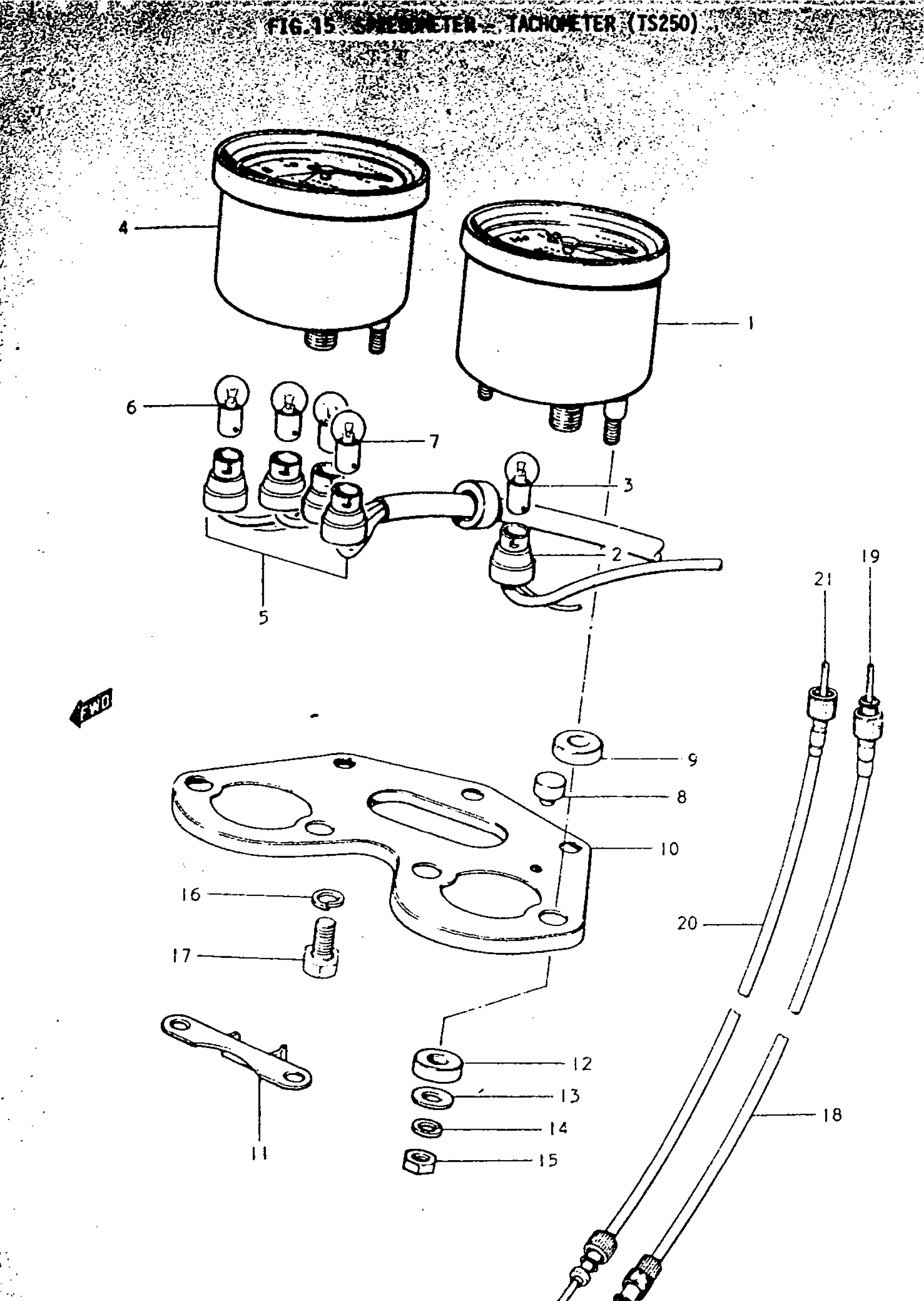

Suzuki TS250 (1970) SPEEDOMETER - TACHOMETER (TS250) Diagram

#

Description
Price

1

SPEEDOMETER ASSY | Includes Item(s) 2 - 3

34100-16600

Unavailable

2

SOCKET

34173-16600

Unavailable

3

BULB | 6V, 3W

09471-06002

$2.25

4

TACHOMETER ASSY | Includes Item(s) 5 - 7

34200-16700

Unavailable

5

SOCKET ASSY

34270-16420

Unavailable

6

BULB | 6V, 3W

09471-06002

$2.25

7

BULB | 6V, 1.7W

09471-06001

$2.18

8

CUSHION (A)

34957-05100

Unavailable

9

CUSHION (B)

34955-20000

Unavailable

10

BRACKET, METER

51391-16400

Unavailable

11

CLAMP

34183-16400

Unavailable

12

CUSHION | 8x17x5 This part replaces 09320-08004.

09320-08010

$1.99

13

WASHER,5.5X18X1 | 5.5x18x1.6 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

NUT This part replaces 08311-11058.

08310-00057

$1.84

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

BOLT This part replaces 01112-06128.

01500-06127

$1.97

18

CABLE ASSY, SPEEDOMETER | Includes Item(s) 19

34910-16430

Unavailable

19

CABLE, INNER

34911-16430

Unavailable

20

CABLE ASSY,TACH | Includes Item(s) 21 This part replaces 34940-16430.

34940-04721

Unavailable

21

CABLE, INNER

34941-16430

Unavailable
