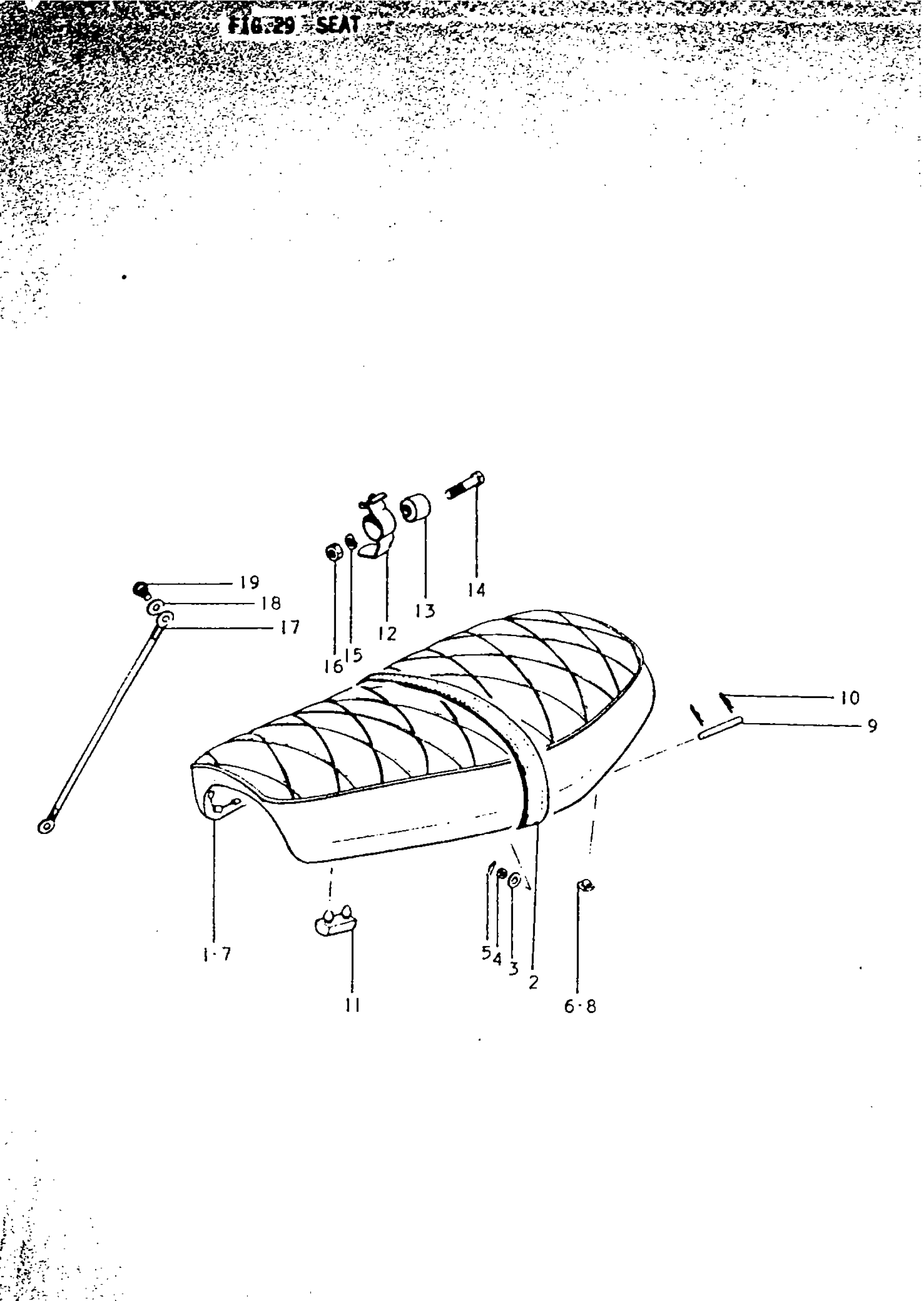

Suzuki TS250 (1970) SEAT Diagram

#

Description
Price

1

SEAT ASSY | 1; Includes Item(s) 2 - 6

45100-16401

Unavailable

2

STRAP, PASSENGER | 1

45180-16400

Unavailable

3

WASHER | 1 This part replaces 08322-21088.

08322-01087

$2.13

4

NUT | 1 This part replaces 08311-31088.

08310-00087

$2.13

5

CLIP | 1

09385-06001

$3.10

6

CUSHION | 1

09329-10001

$2.12

7

SEAT ASSY | 2; Includes Item(s) 8

45100-16402-369

Unavailable

8

CUSHION | 2

09329-10001

$2.12

9

PIN | OD:8, L:75

09200-06017

Unavailable

10

CLIP

09385-06001

$3.10

11

CUSHION This part replaces 09321-08004.

09321-08006

$2.90

12

CLAMP, SEAT

45210-16401

Unavailable

13

CUSHION, CLAMP | 8x20x28

09319-08007

Unavailable

14

BOLT This part replaces 01121-08408.

01500-0840A

$2.60

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT This part replaces 08312-11088.

08310-00087

$2.13

17

CABLE, SEAT

45250-16401

Unavailable

18

WASHER This part replaces 08322-11058.

08322-01057

$2.13

19

SCREW

09139-05102

Unavailable
