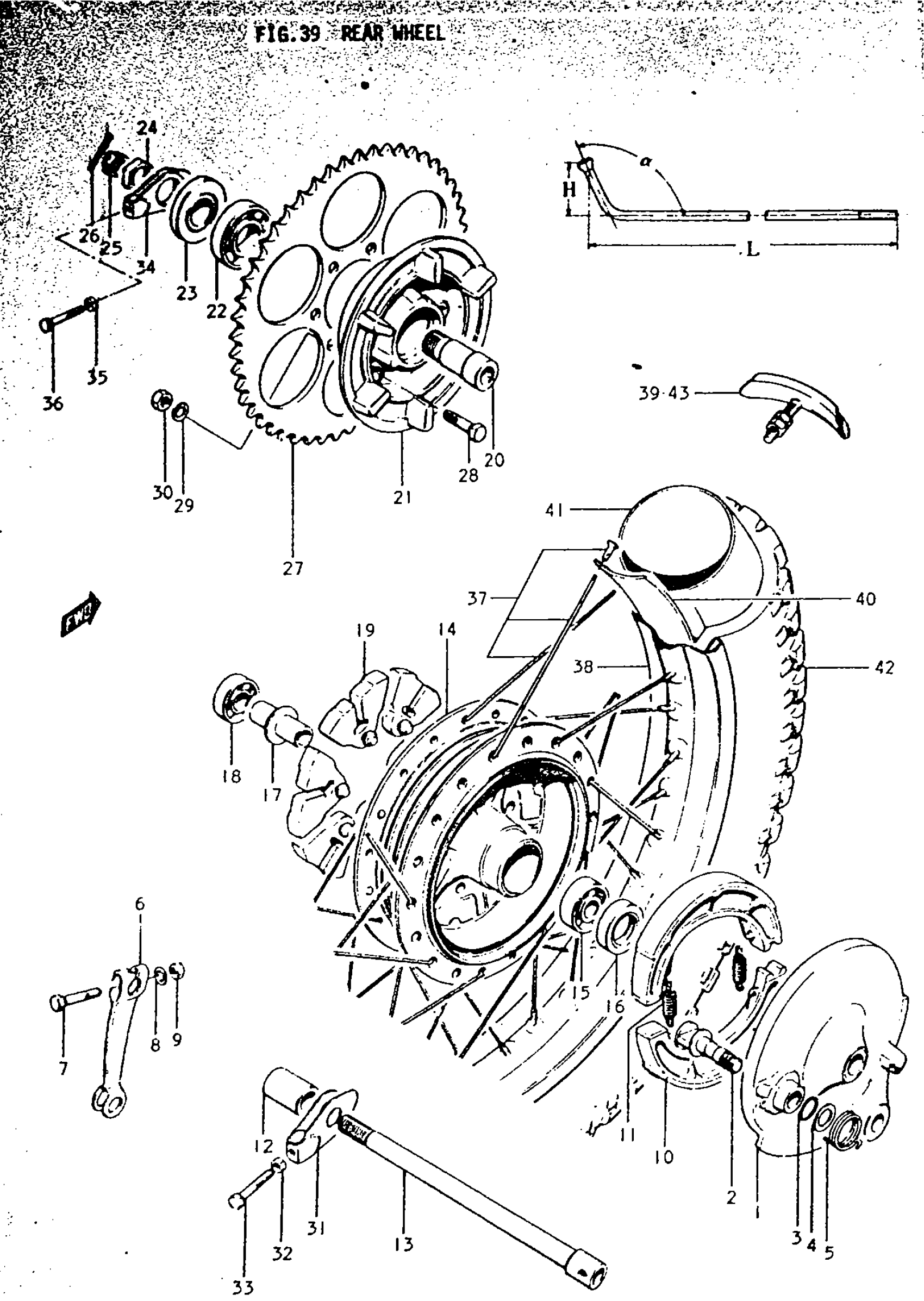

Suzuki TS250 (1970) REAR WHEEL Diagram

#

Description
Price

1

PANEL, REAR BRAKE

64210-10001

Unavailable

2

SHAFT, CAM

64440-10000

Unavailable

3

O RING (ID:14.8,D:2.40) | ID:14.8, D:2.4 This part replaces 09280-15001.

09280-15003

$1.76

4

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

5

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

6

LEVER, BRAKE CAM

64451-10000

Unavailable

7

BOLT

01111-06408

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

SHOE, BRAKE

54410-08000

Unavailable

11

SPRING, BRAKE SHOE | TO 55420-30000

09443-10001

Unavailable

12

SPACER, AXLE | 17.5x28x33.25

09180-17002

Unavailable

13

AXLE,REAR This part replaces 64711-16400.

64711-3300V

Unavailable

14

DRUM, REAR HUB

64110-16400

Unavailable

15

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

16

SEAL,OIL | 24x40x6 This part replaces 09285-25001.

09285-25007

$7.05

17

SPACER, BEARING

64730-18400

Unavailable

18

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

19

CUSHION

64651-16400

Unavailable

20

SHAFT, SPROCKET DRUM

64761-16400

Unavailable

21

DRUM, SPROCKET MOUNTING

64611-16400

Unavailable

22

BEARING

08123-62050

Unavailable

23

SPACER

64770-16400

Unavailable

24

NUT This part replaces 09140-24002.

09140-24010

Unavailable

25

NUT

08314-31167

Unavailable

26

COTTER PIN

04111-40358

Unavailable

27

SPROCKET, REAR | 1; NT:50

64511-16400

Unavailable

27

SPROCKET, REAR | 1; NT:48 OPT

64511-16750

Unavailable

27

SPROCKET, REAR | 1; NT:52 OPT

64511-16760

Unavailable

27

SPROCKET, REAR | 2; NT:41

64511-11000

Unavailable

27

SPROCKET, REAR | 2; NT:40 OPT

64511-11720

Unavailable

27

SPROCKET, REAR | 2; NT:42 OPT

64511-11730

Unavailable

28

BOLT | 10x35 This part replaces 09119-10002.

09105-10001

$2.87

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

30

NUT This part replaces 08312-31108.

08310-00107

$2.19

31

ADJUSTER, CHAIN RH

61410-15002

Unavailable

32

NUT This part replaces 08312-11088.

08310-00087

$2.13

33

BOLT (8X50) | 8x50 This part replaces 09104-08006.

09104-08034

$3.04

34

ADJUSTER, CHAIN LH

61420-15002

Unavailable

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

BOLT (8X50) | 8x50 This part replaces 09104-08006.

09104-08034

$3.04

37

SPOKE SET

65300-16805

Unavailable

38

RIM, WHEEL | 1; 2.15Bx18

65311-15020

Unavailable

38

RIM, WHEEL | 2; 2.15Bx18

65311-16420

Unavailable

39

STOPPER, BEAD | 2

65270-16400

Unavailable

40

IN TUBE PROTECT | 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

41

TUBE, INNER | 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

42

TIRE, REAR | 4.00-18 TO 65100-16411

65100-16410

Unavailable

43

STOPPER, BEAD | 1; OPT

65270-16400

Unavailable
