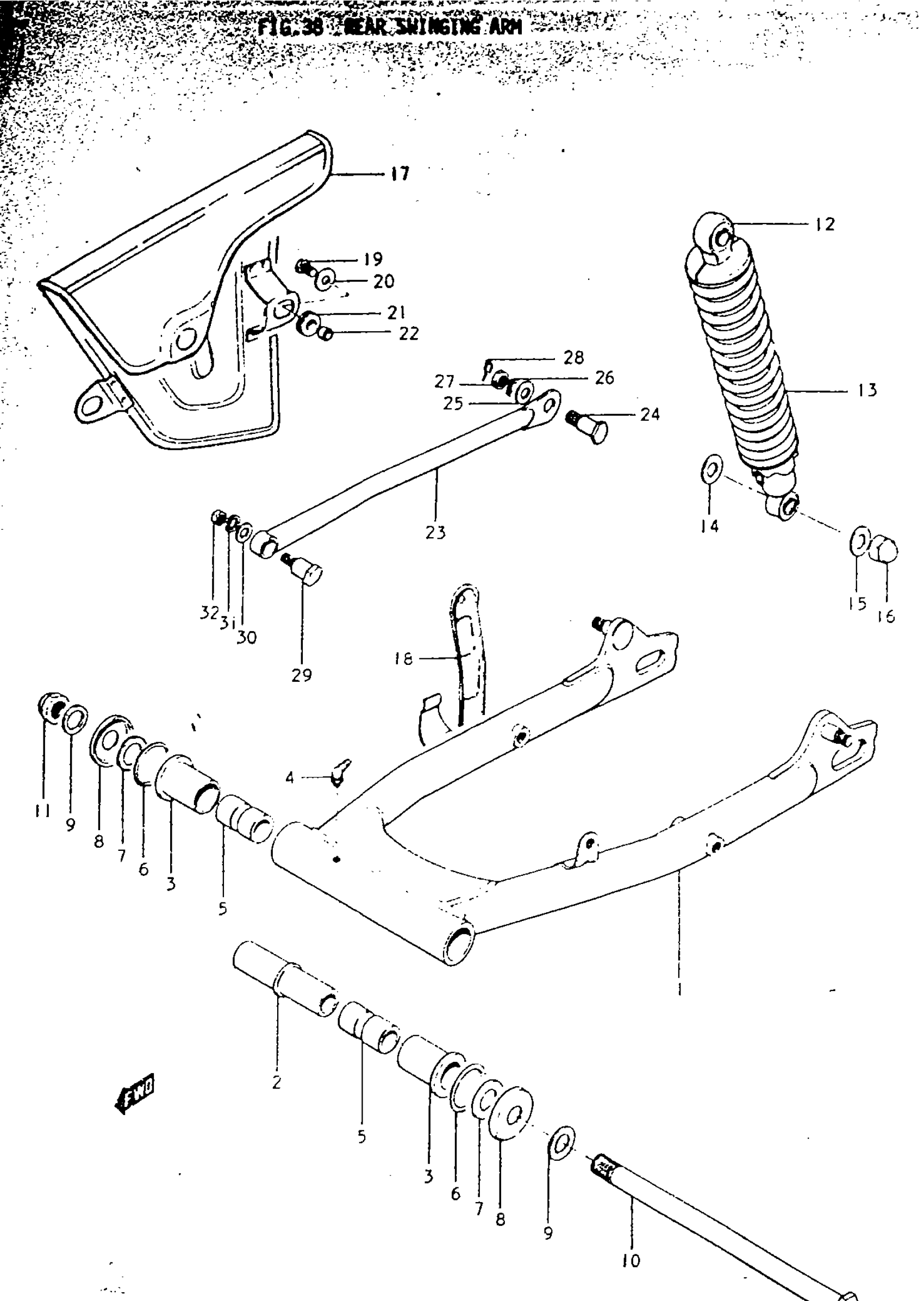

Suzuki TS250 (1970) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM ASSY | Includes Item(s) 2 - 3

61100-16806-019

Unavailable

2

SPACER

61280-15000

Unavailable

3

BUSHING | ID:22 TO 09307-22002

09301-22001

Unavailable

4

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

5

SPACER This part replaces 61251-15000.

61251-15001

Unavailable

6

.O RING (D:3,ID:29.5) | ID:29.5, D:3

09280-30001

$1.72

7

THRUST WASHER | 14.5x29x2.3

09160-14009

$2.82

8

COVER, DUST SEAL

61262-15000

$93.03

9

WASHER This part replaces 08322-11148.

08322-01147

$1.91

10

SHAFT, PIVOT

61211-15003

Unavailable

11

NUT This part replaces 09159-14002.

09159-14003

Unavailable

12

ABSORBER ASSY, REAR SHOCK

62100-16411

Unavailable

12

ABSORBER ASSY, REAR SHOCK | OPT, FOR RACING; Includes Item(s) 13

62100-16710

Unavailable

13

SPRING

62211-16411

Unavailable

14

WASHER This part replaces 08322-11128.

08322-01127

$1.84

15

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

16

NUT This part replaces 08313-11107.

08313-10107

$2.50

17

CASE, CHAIN | CHROME-PLANTED

61310-18400

Unavailable

18

GUIDE, CHAIN

61340-16400

Unavailable

19

SCREW | 6x16 This part replaces 09128-06005.

02162-0616B

$2.03

20

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

21

CUSHION (8.5X20X8) | 8.5x20x8 This part replaces 09320-08007.

09320-08510

$1.97

22

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

23

TORQUE LINK, REAR

64310-16400

Unavailable

24

BOLT | TO 09111-10009 WITH 09385-10001

09119-10001

Unavailable

25

WASHER | 10.5x24x2.3 This part replaces 09160-12004.

09160-12088

$2.00

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

NUT This part replaces 08311-31108.

08310-00107

$2.19

28

CLIP

09384-08001

Unavailable

29

BOLT

09111-08002

Unavailable

30

WASHER This part replaces 08322-11088.

08322-01087

$2.13

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

NUT This part replaces 08311-11088.

08310-00087

$2.13
