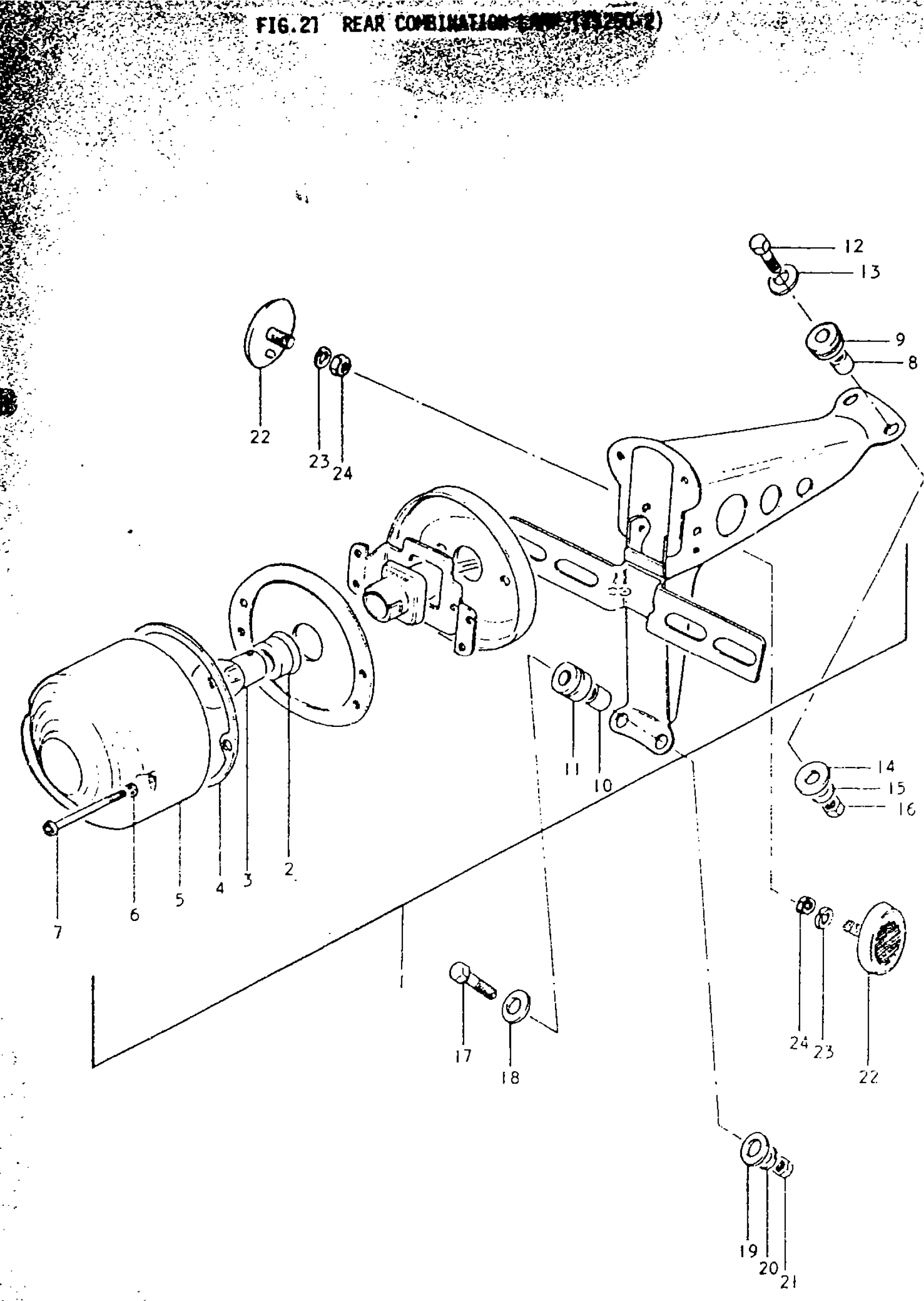

Suzuki TS250 (1970) REAR COMBINATION LAMP (TS250-2) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 11

35710-16610

Unavailable

2

CUSHION

35716-15010

Unavailable

3

BULB | 6V, 21/3CP

09471-06009

$3.99

4

GASKET, LENS

35713-15010

Unavailable

5

LENS, RR COMB L This part replaces 35712-22610.

35712-06112

$35.16

6

WASHER, LENS | 4.2x7x0.5

35727-03010

Unavailable

7

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

8

SPACER | 7x10x8 This part replaces 35766-15010.

35766-37110

$5.28

9

CUSHION | 10x20x8

35765-15010

Unavailable

10

SPACER | 7x10x12 This part replaces 35766-22210.

35766-37120

Unavailable

11

CUSHION | 10x20x12

35765-22210

$3.84

12

BOLT This part replaces 01111-06208.

01500-06207

$2.28

13

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

.NUT This part replaces 08311-11068.

08310-00067

$2.13

17

BOLT

01111-66258

Unavailable

18

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

.NUT This part replaces 08311-11068.

08310-00067

$2.13

22

REFLEX REFLECTOR, REAR | TO 35970-22611

35970-22610

Unavailable

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

24

NUT This part replaces 08311-11058.

08310-00057

$1.84
