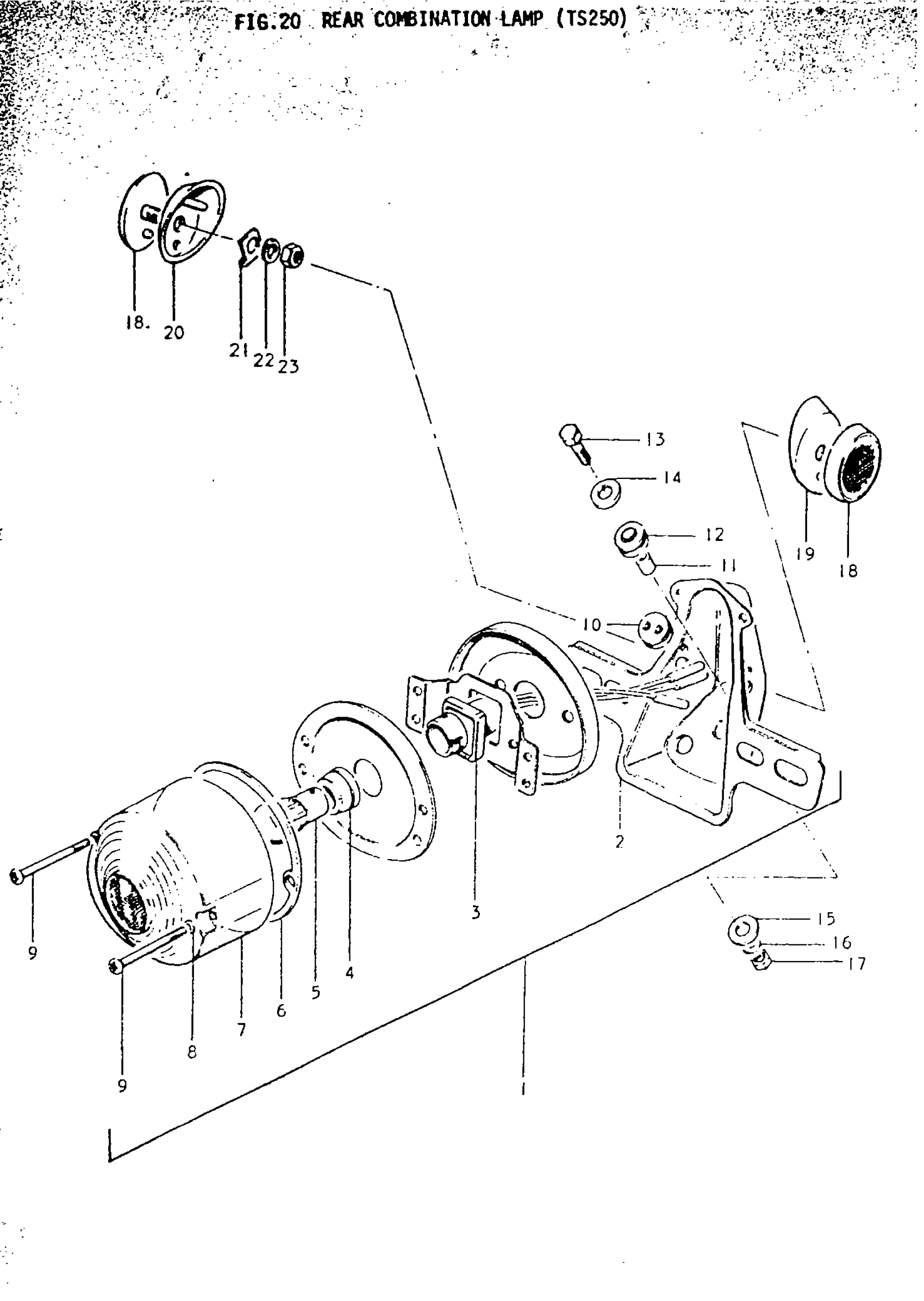

Suzuki TS250 (1970) REAR COMBINATION LAMP (TS250) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | TO 35710-05610-999; Includes Item(s) 2 - 12

35710-20601

Unavailable

2

BRACKET

35726-18600

Unavailable

3

SOCKET This part replaces 35718-05610.

35718-05611

Unavailable

4

CUSHION

35716-15010

Unavailable

5

BULB | 6V, 21/3CP

09471-06009

$3.99

6

GASKET, LENS

35713-15010

Unavailable

7

LENS, RR COMB L This part replaces 35712-15011.

35712-06112

$35.16

8

WASHER, LENS | 4.2x7x0.5

35727-03010

Unavailable

9

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

10

GROMMET

35728-18610

Unavailable

11

SPACER | 7x10x8 This part replaces 35766-15010.

35766-37110

$5.28

12

CUSHION | 10x20x8

35765-15010

Unavailable

13

BOLT This part replaces 01111-06208.

01500-06207

$2.28

14

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

REFLEX REFLECTOR, REAR

35950-18612

Unavailable

19

SPACER, RH

35995-18600

Unavailable

20

SPACER, LH

35996-18600

Unavailable

21

WASHER, REFLECTOR

35997-18600

Unavailable

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

NUT This part replaces 08311-11058.

08310-00057

$1.84
