1970 Suzuki TS250 Prop Stand - Footrest Diagram

← All diagrams

Find the part on the Prop Stand - Footrest diagram for your 1970 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

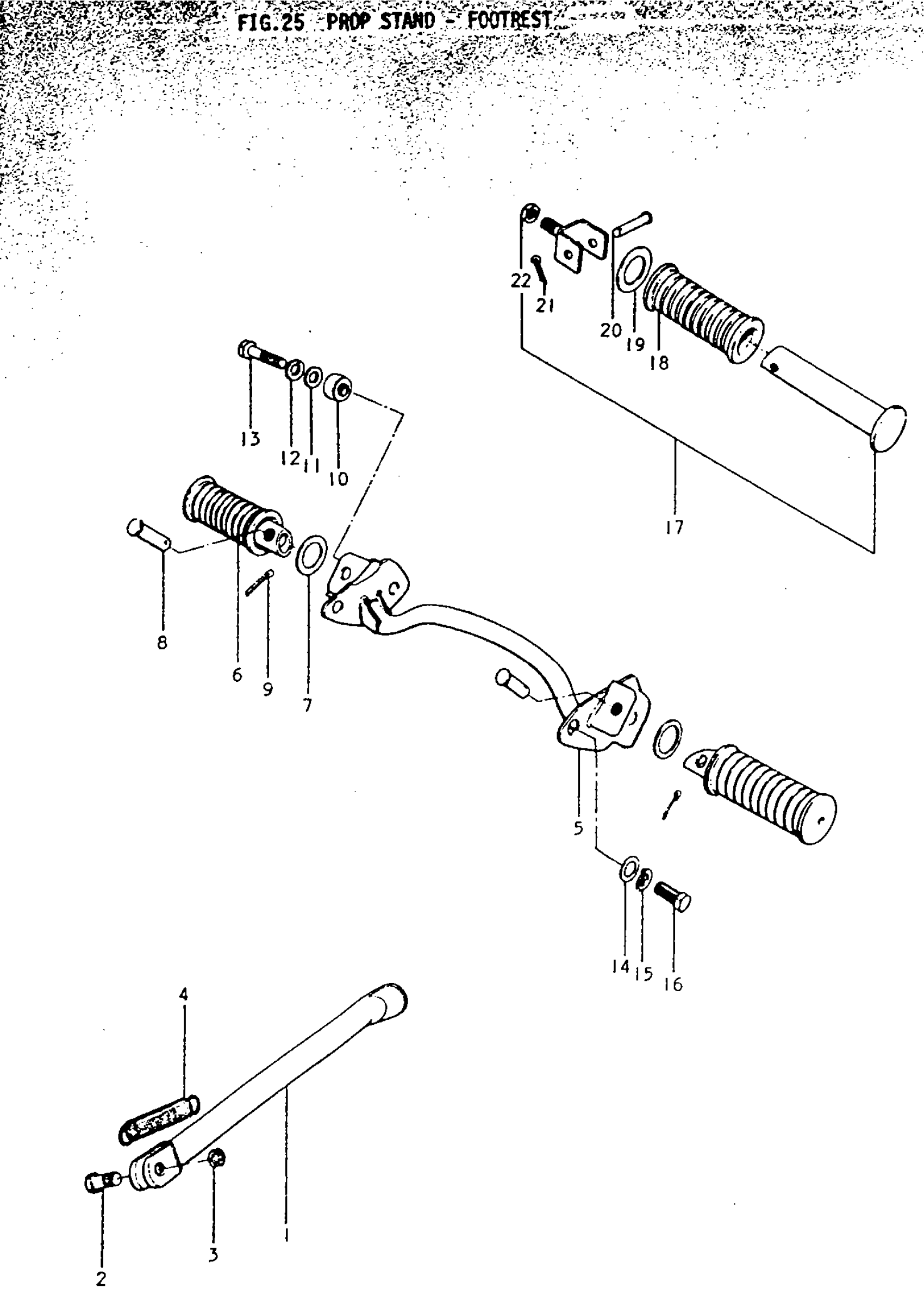

1970 Suzuki TS250 Prop Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-16400

—
Out of stock

2

BOLT | 10x27 This part replaces 09100-10007.

09100-10287

1
Out of stock

3

NUT This part replaces 08312-31108.

08310-00107

1
Out of stock

4

SPRING This part replaces 09443-14005.

09443-14017

1
Out of stock

5

BAR, FOOTREST

43510-16400

1
Out of stock

6

RUBBER, FOOTREST

43550-16400

2
Out of stock

7

WASHER | 22.5x36x2.3 This part replaces 09160-22002.

09160-22033

2
Out of stock

8

PIN

09200-08002

2
Out of stock

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

10

CUSHION, KICK STARTER LEVER

43534-16400

1
Out of stock

11

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

12

1

$2.28

In stock

13

BOLT This part replaces 01122-08408.

01500-0840A

1
Out of stock

14

WASHER This part replaces 08322-21088.

08322-01087

3
Out of stock

15

3

$2.28

In stock

16

BOLT, REAR This part replaces 01122-08208.

01500-08207

3
Out of stock

17

FOOTREST ASSY,P | Includes Item(s) 18 - 22 This part replaces 43600-03001.

43600-09D00

2
Out of stock

18

RUBBER

43612-03001

2
Out of stock

19

WASHER | 19.5x32x2 This part replaces 09160-19006.

09160-19024

2
Out of stock

20

PIN

09200-06010

2
Out of stock

21

COTTER PIN

04111-20188

—
Out of stock

22

NUT This part replaces 08312-31108.

08310-00107

2
Out of stock
