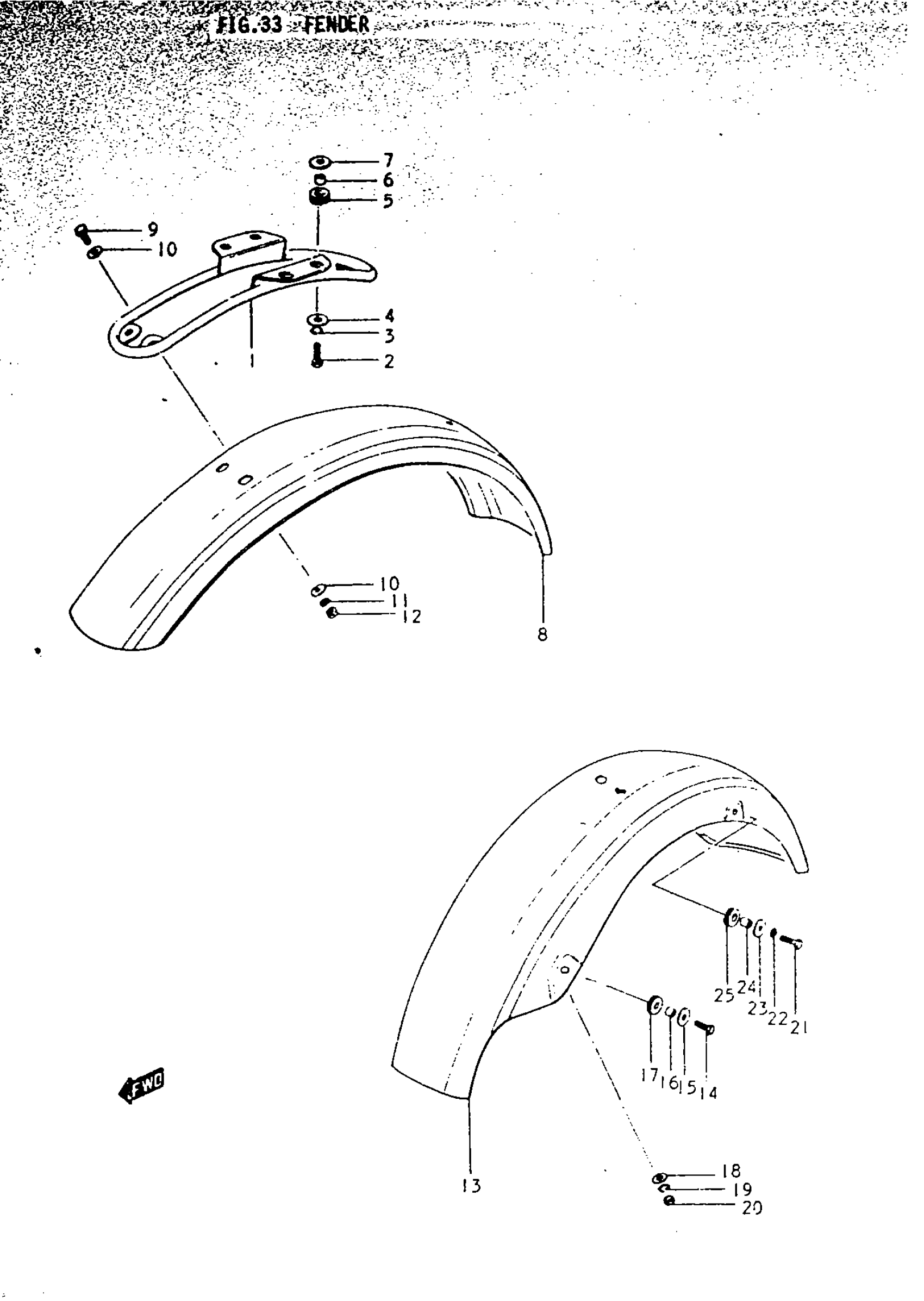

Suzuki TS250 (1970) FENDER Diagram

#

Description
Price

1

BRACE, FRONT FENDER

53210-16400

Unavailable

2

BOLT | 6x20 This part replaces 09128-06006.

09128-06057

$1.64

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.89

5

CUSHION (8.5X20X8) | 8.5x20x8 This part replaces 09320-08007.

09320-08510

$1.70

6

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.46

7

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.89

8

FENDER, FRONT | CHROME-PLANTED

53110-16400

Unavailable

9

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

10

WASHER This part replaces 08322-21068.

08322-01067

$1.86

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

12

.NUT This part replaces 08311-11068.

08310-00067

$1.83

13

FENDER, REAR | 1; CHROME-PLANTED

63110-16400

Unavailable

13

FENDER, REAR | 2; CHROME-PLANTED TO 63110-30@00

63110-16401

Unavailable

14

BOLT This part replaces 01111-06208.

01500-06207

$1.99

15

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.89

16

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.46

17

CUSHION (8.5X20X8) | 8.5x20x8 This part replaces 09320-08007.

09320-08510

$1.70

18

WASHER This part replaces 08322-21068.

08322-01067

$1.86

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

20

.NUT This part replaces 08311-11068.

08310-00067

$1.83

21

BOLT

01111-06168

Unavailable

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

23

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.89

24

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.46

25

CUSHION (8.5X20X8) | 8.5x20x8 This part replaces 09320-08007.

09320-08510

$1.70
