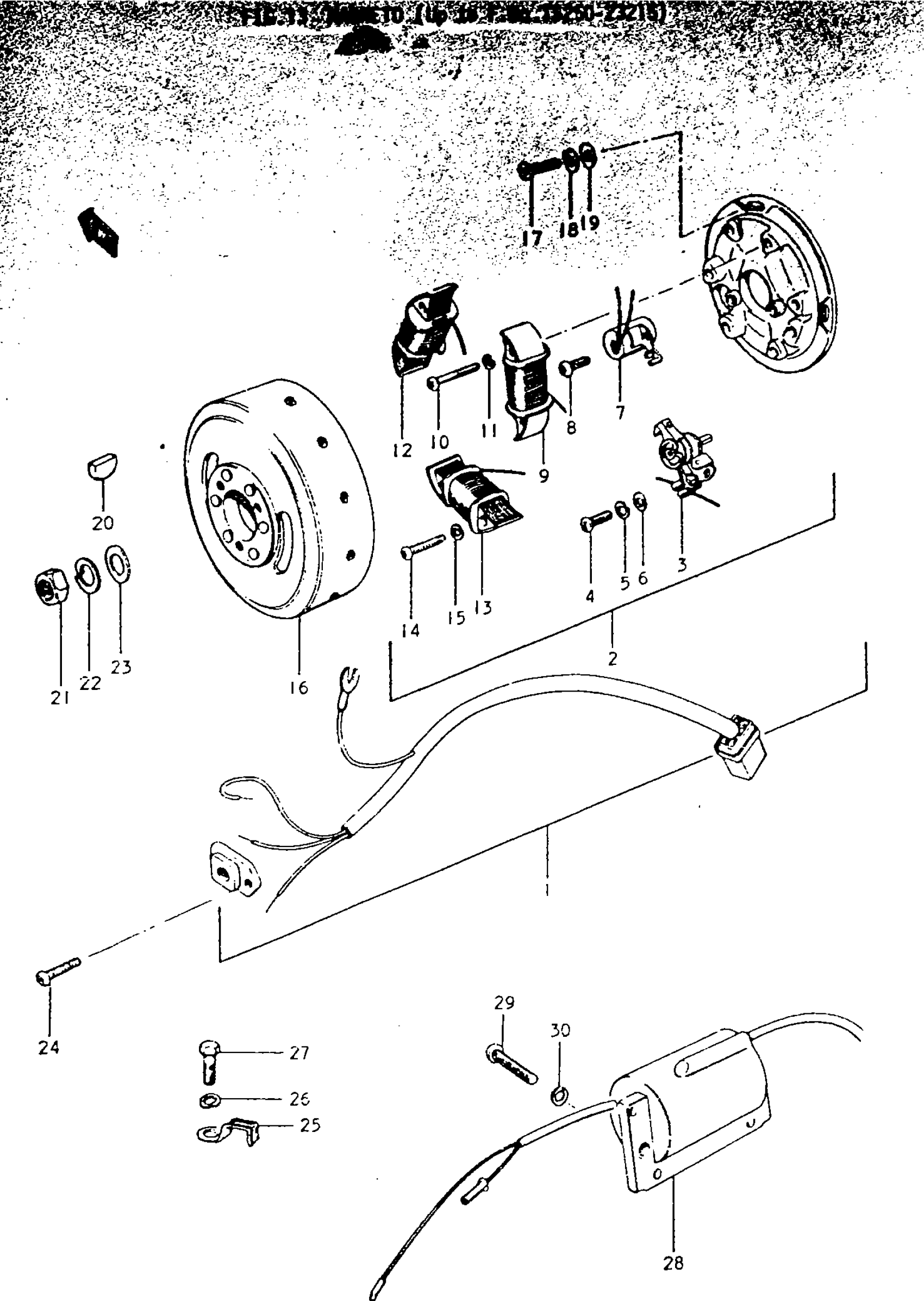

Suzuki TS250 (1970) MAGNETO (UP TO F.NO. 23250-23215) Diagram

#

Description
Price

1

MAGNETO, ASSY | Includes Item(s) 2 - 16

32100-16420

Unavailable

2

STATOR ASSY

32101-16420

Unavailable

3

POINT ASSY, CONTACT

32240-07022

Unavailable

4

SCREW

02311-05108

Unavailable

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

WASHER This part replaces 08322-21058.

08322-01057

$2.13

7

CONDENSER

32341-07020

Unavailable

8

SCREW This part replaces 02111-05108.

02112-05107

$1.49

9

COIL, PRIMARY

32140-07020

Unavailable

10

SCREW

32351-07021

Unavailable

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

COIL, LIGHTING (A)

32120-16420

Unavailable

13

COIL, LIGHTING (B)

32130-16420

Unavailable

14

SCREW

02111-05308

Unavailable

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

ROTOR

32102-07612

Unavailable

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

KEY This part replaces 08341-31049.

09420-04008

$3.42

21

NUT, MAGNETO

09140-12105

Unavailable

22

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

23

WASHER

09160-12005

$2.38

24

SCREW

02111-06108

Unavailable

25

CLAMP, MAGNETO LEAD WIRE

09403-00042

Unavailable

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

BOLT

01111-06108

Unavailable

28

COIL ASSY, IGNITION

33410-16420

Unavailable

29

SCREW

02111-06208

Unavailable

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
