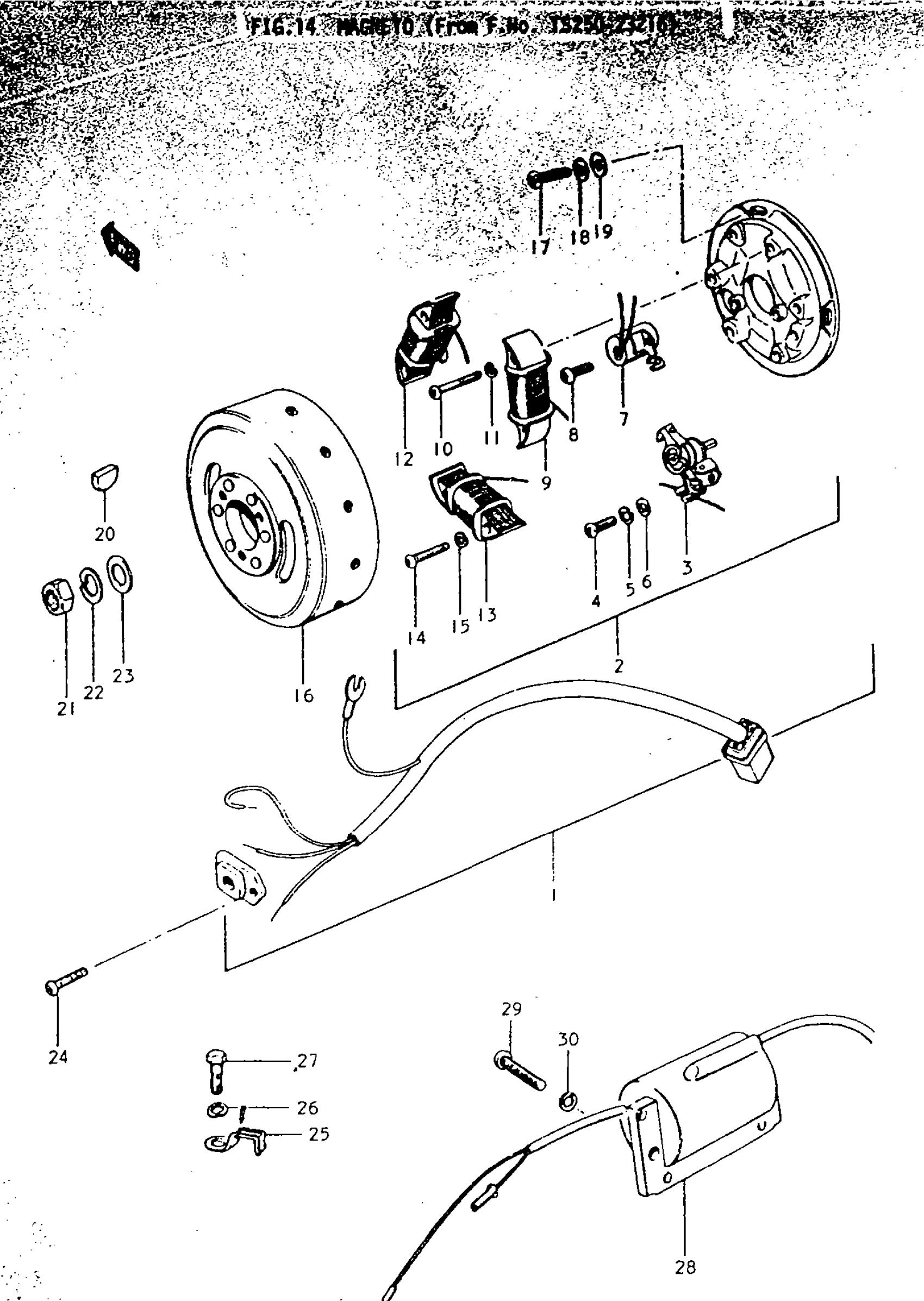

Suzuki TS250 (1970) MAGNETO (FROM F.NO. TS250-23216) Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 16

32100-16421

Unavailable

2

STATOR ASSY

32101-16421

Unavailable

3

POINT ASSY,CONT This part replaces 32240-12020.

32240-07610

Unavailable

4

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

WASHER This part replaces 08322-21048.

08322-01047

$1.86

7

CONDENSER This part replaces 32341-12021.

32341-25690

Unavailable

8

SCREW

02111-04108

Unavailable

9

COIL, PRIMARY

32140-07020

Unavailable

10

SCREW

32351-07021

Unavailable

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

COIL, LIGHTING (A)

32120-16420

Unavailable

13

COIL, LIGHTING (B)

32130-16420

Unavailable

14

SCREW

02111-05308

Unavailable

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

ROTOR

32102-16421

Unavailable

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

KEY This part replaces 08341-31049.

09420-04008

$3.42

21

NUT, MAGNETO

09140-14011

Unavailable

22

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

23

WASHER

09160-14015

Unavailable

24

SCREW

02111-06108

Unavailable

25

CLAMP, MAGNETO LEAD WIRE

09403-00042

Unavailable

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

BOLT

01111-06108

Unavailable

28

COIL ASSY, IGNITION

33410-16420

Unavailable

29

SCREW

02111-06208

Unavailable

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
