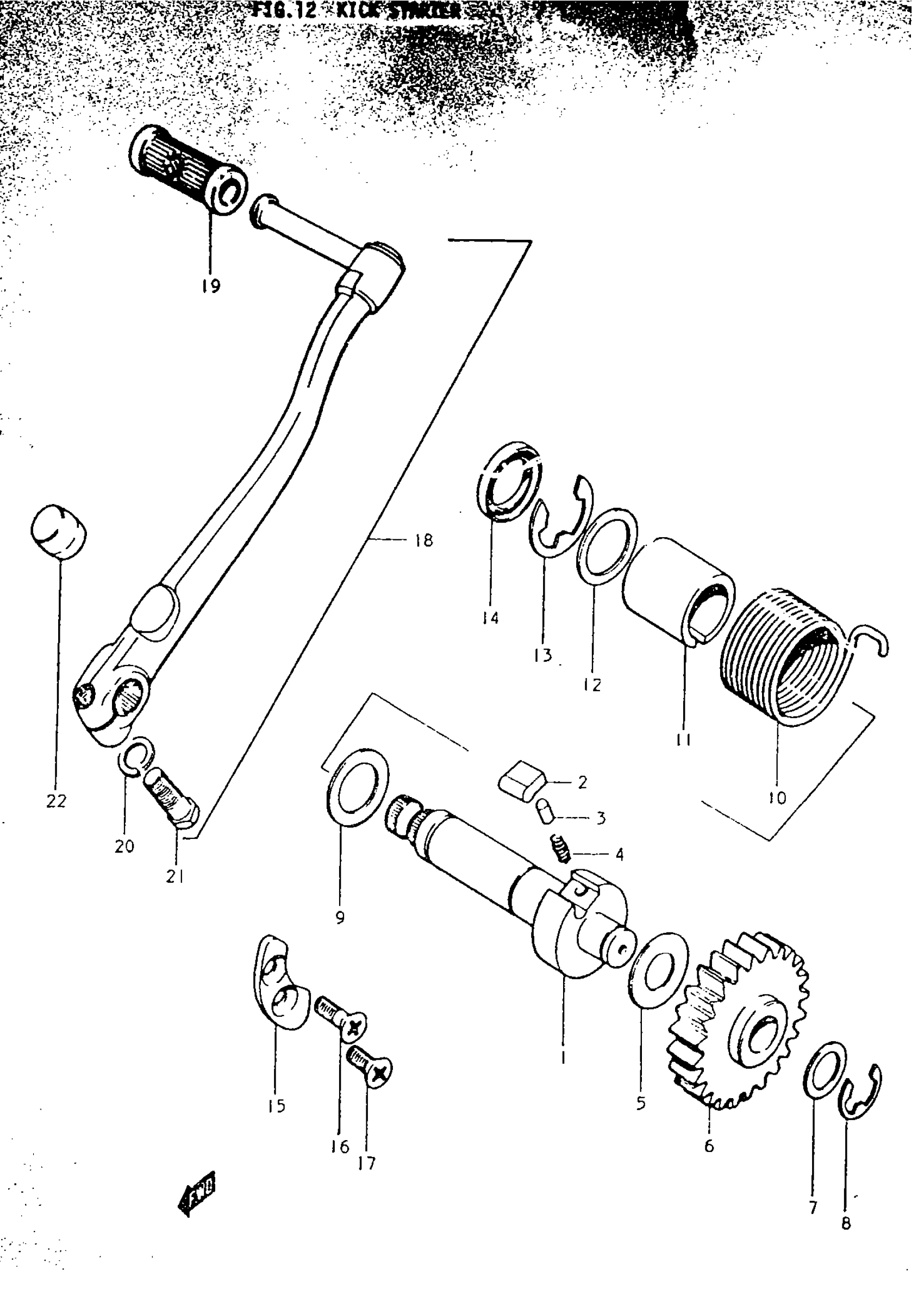

Suzuki TS250 (1970) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-16400

Unavailable

2

PAWL, KICK STARTER | TO 26231-20000

26231-16400

Unavailable

3

PIN

09209-05011

$2.20

4

SPRING

09440-04013

Unavailable

5

THRUST WASHER | 16x30.5x1

09160-16003

$2.92

6

GEAR, KICK STARTER DRIVE | 1; NT:24

26241-16400

Unavailable

6

GEAR, KICK STARTER DRIVE | 1; NT:24

26241-16401

Unavailable

7

THRUST WASHER | 16x23x1.5

09160-16007

Unavailable

8

E-RING This part replaces 08332-11129.

08332-1112A

$2.15

9

THRUST WASHER | FROM 09160-22007

08211-22341

$3.85

10

SPRING

09448-45001

Unavailable

11

GUIDE, SPRING

26221-16401

Unavailable

12

THRUST WASHER | FROM 09160-22007

08211-22341

$3.85

13

E RING

08332-11199

Unavailable

14

OIL SEAL | 21x35x7

09285-21001

Unavailable

15

LIFTER, PAWL

26232-16400

Unavailable

16

SCREW This part replaces 02121-06168.

02122-06167

$1.49

17

SCREW

09139-06002

$2.38

18

LEVER ASSY, KICK STARTER | Includes Item(s) 19 - 21

26300-16401

Unavailable

19

RUBBER,KICK STA | 1; ID:10, L:58 This part replaces 26352-01000.

26352-01020

$3.25

19

RUBBER | ID:12, L:62

26352-16400

Unavailable

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

BOLT This part replaces 01122-10308.

01500-1030A

$3.16

22

CUSHION

26381-16400

Unavailable
