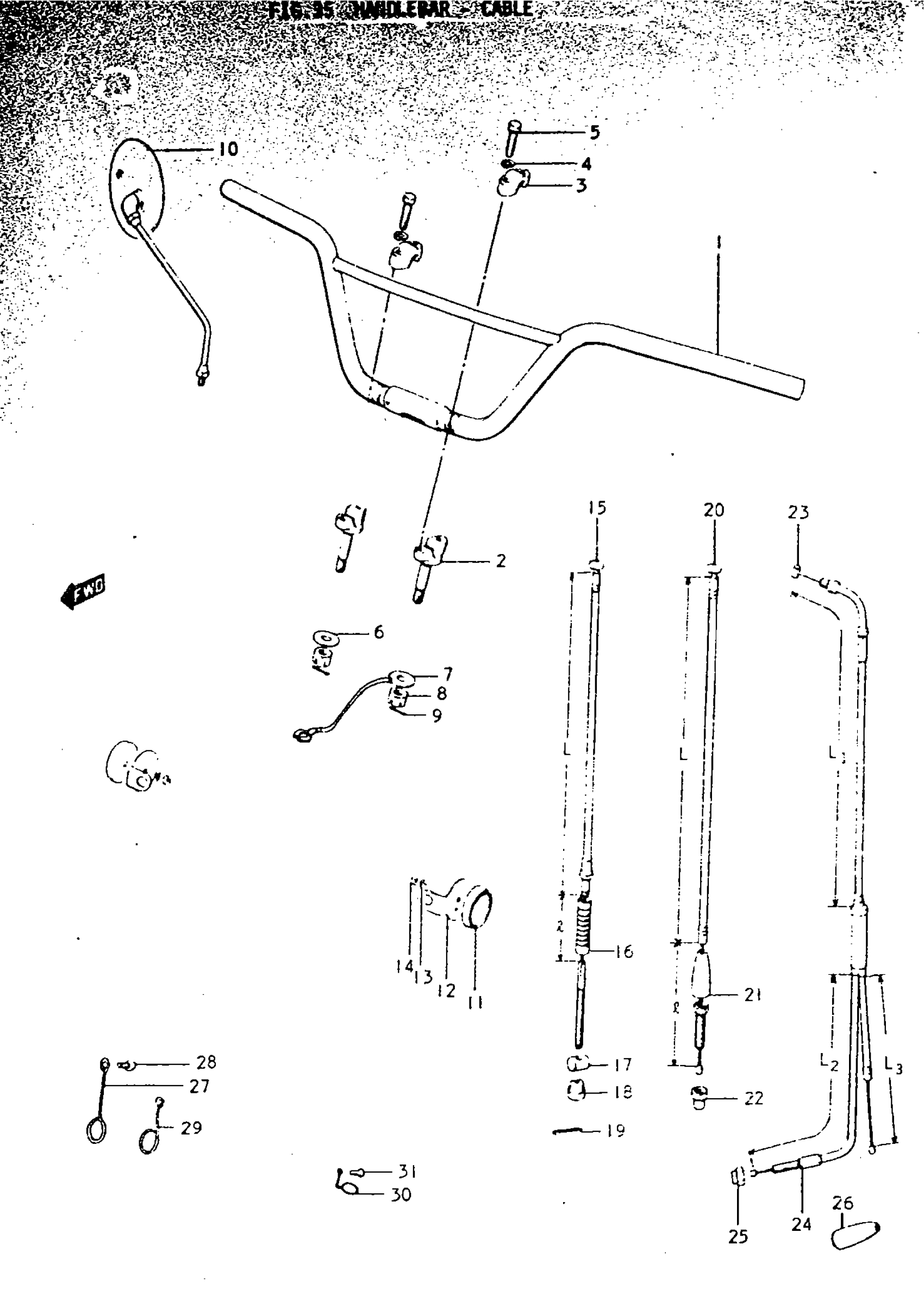

Suzuki TS250 (1970) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR | 1 This part replaces 56110-15102.

56111-15103

Unavailable

1

HANDLEBAR | 2

56110-16400

Unavailable

1

HANDLEBAR | 2

56110-16401

Unavailable

2

CLAMP, HANDLEBAR LOWER This part replaces 56221-15000.

56221-33000

Unavailable

3

CLAMP, HANDLEBAR UPPER This part replaces 56211-15000.

56211-33000

Unavailable

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

BOLT This part replaces 01221-08307.

01204-08307

$1.99

6

WASHER, LOWER RH | 10.5x28x2.3

09160-10035

$1.78

7

WASHER, LOWER LH

56290-18000

Unavailable

8

NUT This part replaces 08314-11108.

08314-3110A

$1.99

9

COTTER PIN

04111-20258

Unavailable

10

MIRROR ASSY,REA This part replaces 56500-19600.

56500-35611

$189.20

11

REFLEX REFLECTOR, FRONT | TO 35950-18612

35950-18611

Unavailable

12

BRACKET, REFLECTOR

35954-16400

Unavailable

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

CABLE ASSY, FRONT BRAKE | L:1247, L:76.5; Includes Item(s) 16 - 18

58100-15000

Unavailable

16

BOOT

09287-05001

Unavailable

17

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

18

.NUT This part replaces 09150-06001.

09150-06010

$3.10

19

COTTER PIN

04111-20128

Unavailable

20

CABLE,CLUTCH | L:1080, L:116; Includes Item(s) 21 - 22 This part replaces 58200-15100.

58200-33601

Unavailable

21

BOOT

09287-10001

Unavailable

22

NUT | FROM 09159-08007 This part replaces 08312-11088.

08310-00087

$2.13

23

CABLE ASSY, THROTTLE | L1:765, L2:498, L3:31.5; Includes Item(s) 24 - 25

58300-16400

Unavailable

24

ADJUSTER, CABLE | FROM 09119-08003

09119-08014

$3.55

25

NUT | FROM 09159-08003 This part replaces 08312-21088.

08310-00087

$2.13

26

BOOT, THROTTLE CABLE | TO 09287-07002

09287-10003

Unavailable

27

CLIP, TACHOMETER CABLE (A)

34948-16400

Unavailable

28

SCREW

02111-06108

Unavailable

29

CLIP, TACHOMETER CABLE (B) | TO 34949-30000

34949-16400

Unavailable

30

CLIP, SPEEDOMETER CABLE | TO 51455-22200

51455-20000

Unavailable

31

SCREW

02111-06108

Unavailable
