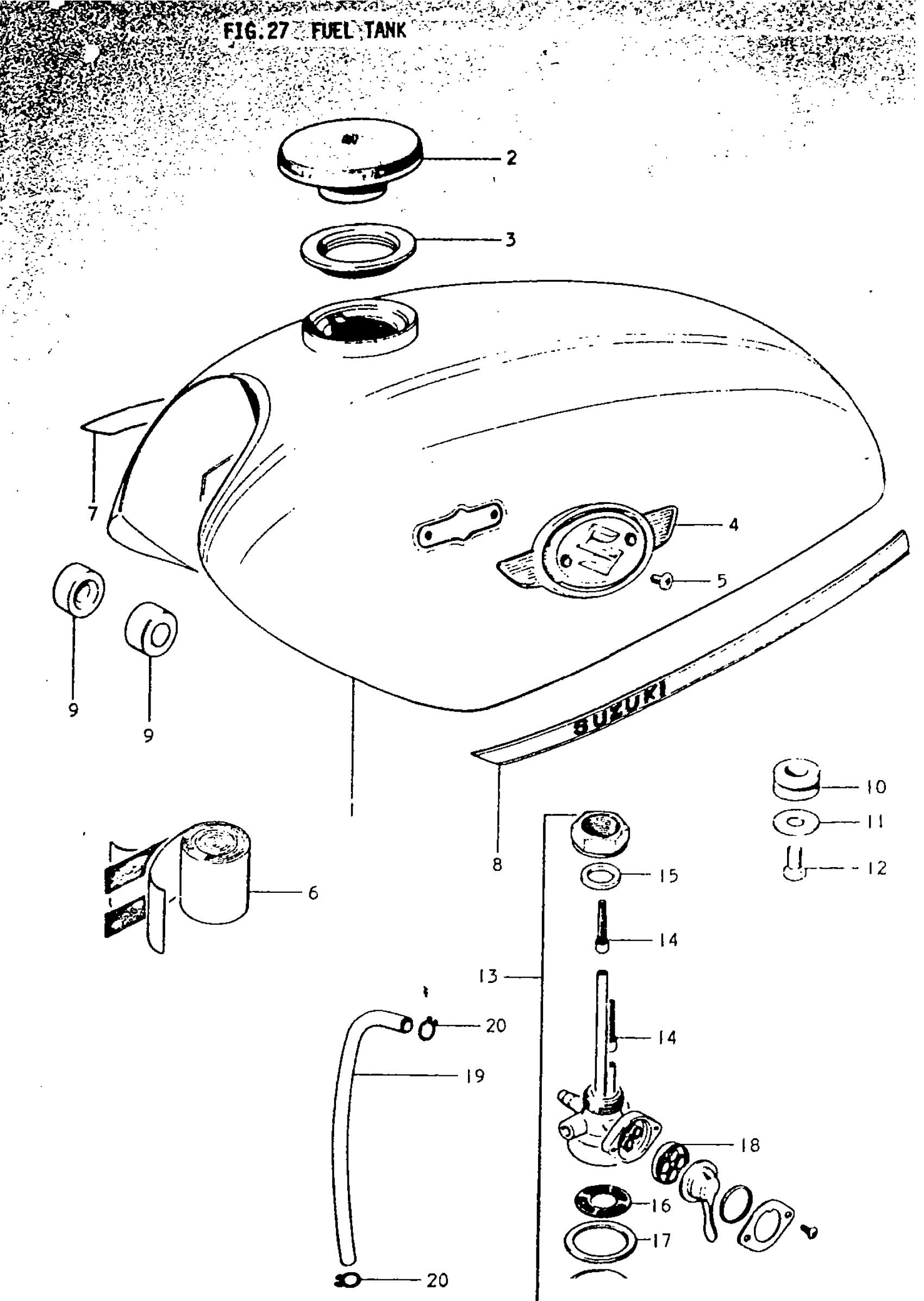

Suzuki TS250 (1970) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL | 1

44110-16400-662

Unavailable

1

TANK ASSY, FUEL | 1

44110-16400-661

Unavailable

1

NO DESCRIPTION AVAILABLE | 2 This part replaces 44110-16401-163.

44110-16401-737

Unavailable

1

NO DESCRIPTION AVAILABLE | 2 This part replaces 44110-16401-184.

44110-16401-737

Unavailable

2

CAP, FUEL TANK This part replaces 44210-11000.

44210-36200

Unavailable

3

GASKET, FUEL TANK

44248-11000

Unavailable

4

FUEL TANK EMBLEM This part replaces 68111-18100.

68111-22200

Unavailable

5

SCREW | 4x6

09125-04108

Unavailable

6

TAPE, STRIPING | 1; L:1500

99000-78280

Unavailable

6

TAPE, STRIPING | 1; L:1500, OPT

99000-78290

Unavailable

7

TAPE, STRIPING RH | 2

68115-16400

Unavailable

8

TAPE, STRIPING LH | 2

68125-16400

Unavailable

9

CUSHION, FRONT | OD:27, W:16

09329-10005

$2.11

10

CUSHION, REAR | 11.5x28x14

09320-11001

Unavailable

11

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

12

BOLT

01121-08128

Unavailable

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 18 This part replaces 44300-16410.

44300-16X00

Unavailable

14

FILTER SET This part replaces 44322-08210.

44300-28818

$10.50

15

GASKET (A)

44348-08210

Unavailable

16

NET, FILTER (B)

44344-08210

Unavailable

17

GASKET (B)

44346-08210

Unavailable

18

GASKET (C)

44341-05110

Unavailable

19

HOSE,5X10X600 | ID:5, L:220 This part replaces 09343-05031.

44421-13ER0

$10.06

20

CLIP

09386-08001

Unavailable
