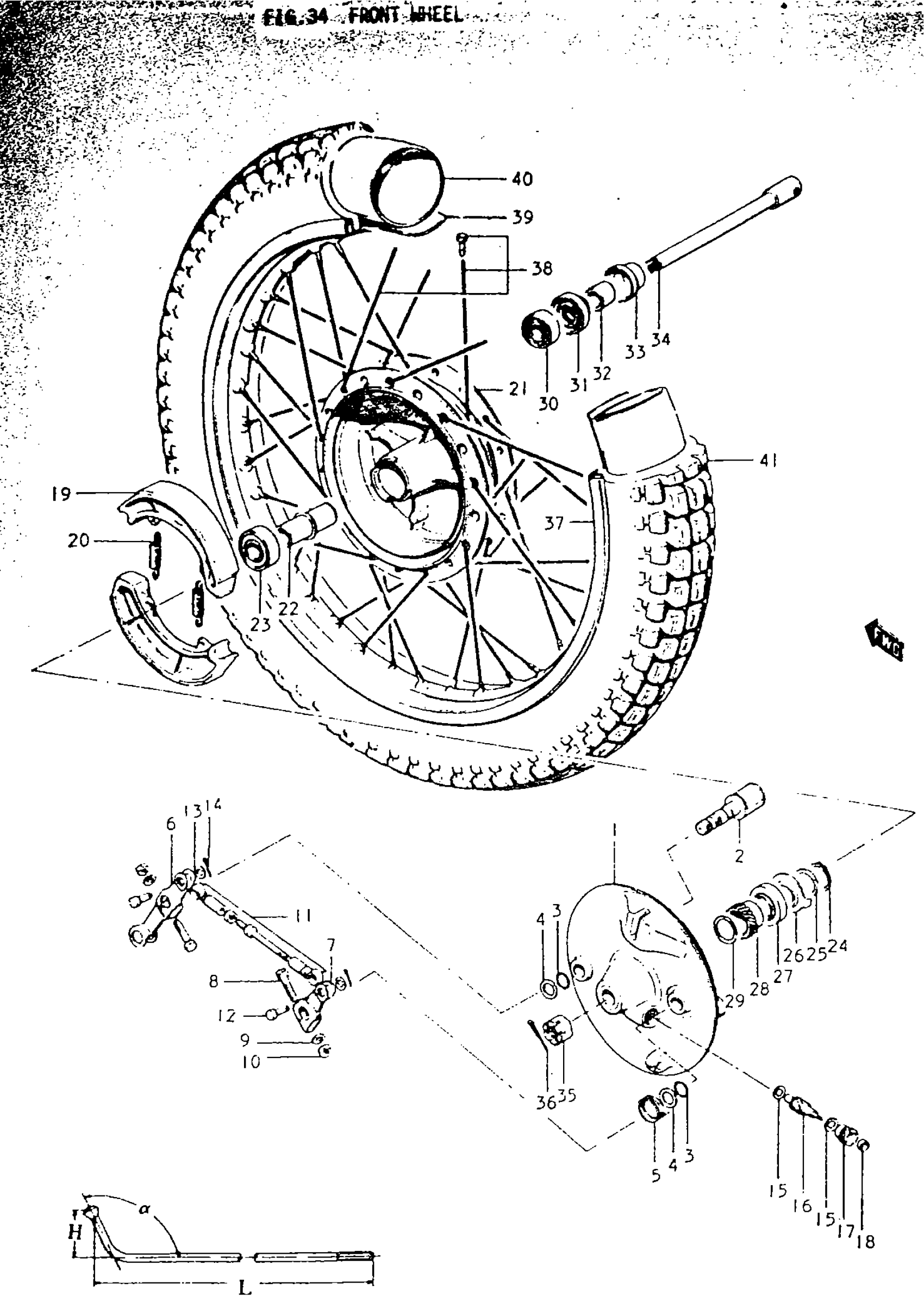

Suzuki TS250 (1970) FRONT WHEEL Diagram

#

Description
Price

1

PANEL, FRONT BRAKE

54210-08100

Unavailable

2

SHAFT, BRAKE CAM

54440-11002

Unavailable

3

O RING (ID:14.8,D:2.40) | ID: 14.8, D:2.4 This part replaces 09280-15001.

09280-15003

$1.76

4

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

5

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

6

LEVER, BRAKE CAM NO. 1

54450-11000

Unavailable

7

LEVER, BRAKE CAM NO.2

54461-11000

Unavailable

8

BOLT, ADJUSTER | 6x25 This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

NO DESCRIPTION AVAILABLE This part replaces 54400-10819.

54400-18830

Unavailable

12

PIN

09200-06001

Unavailable

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

PIN This part replaces 04111-12108.

04111-1210A

$1.50

15

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

16

GEAR, SPEEDOMETER DRIVEN | NT:9

54621-11000

Unavailable

17

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

18

OIL SEAL

09289-06001

$4.58

19

SHOE, BRAKE

54410-08100

Unavailable

20

SPRING | TO 55420-30000

09443-10001

Unavailable

21

DRUM, FRONT HUB

54110-08100

Unavailable

22

SPACER, BEARING

54730-08100

Unavailable

23

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

24

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

25

WASHER | 22.5x27x1

09160-22001

$2.47

26

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

27

SEAL,OIL(26X38X | 26x38x6 This part replaces 09285-26001.

09285-26005

Unavailable

28

GEAR, SPEEDOMETER DRIVE | NT:27

54611-15000

Unavailable

29

WASHER | 22.5x27x1

09160-22001

$2.47

30

BEARING

08113-60020

$16.01

31

OIL SEAL | 22x33x10

09284-22001

Unavailable

32

SPACER | 15x22x25.4

09180-15001

Unavailable

33

DUST SEAL

54892-11000

Unavailable

34

AXLE, FRONT | TO 54711-08100

54710-08100

Unavailable

35

NUT

09141-14001

$4.60

36

COTTER PIN

04111-30358

Unavailable

37

RIM, WHEEL | 1.85Bx19

55311-15020

Unavailable

38

SPOKE SET

55300-16811

Unavailable

39

PROTECTOR, WHEEL INNER TUBE FRONT | 22x19 This part replaces 55261-15010.

55261-15020

$3.15

40

TUBE | 3.25x19 This part replaces 55200-15010.

55200-44611

$33.73

41

TIRE | 3.25x19 TO 55100-16411

55100-16410

Unavailable
