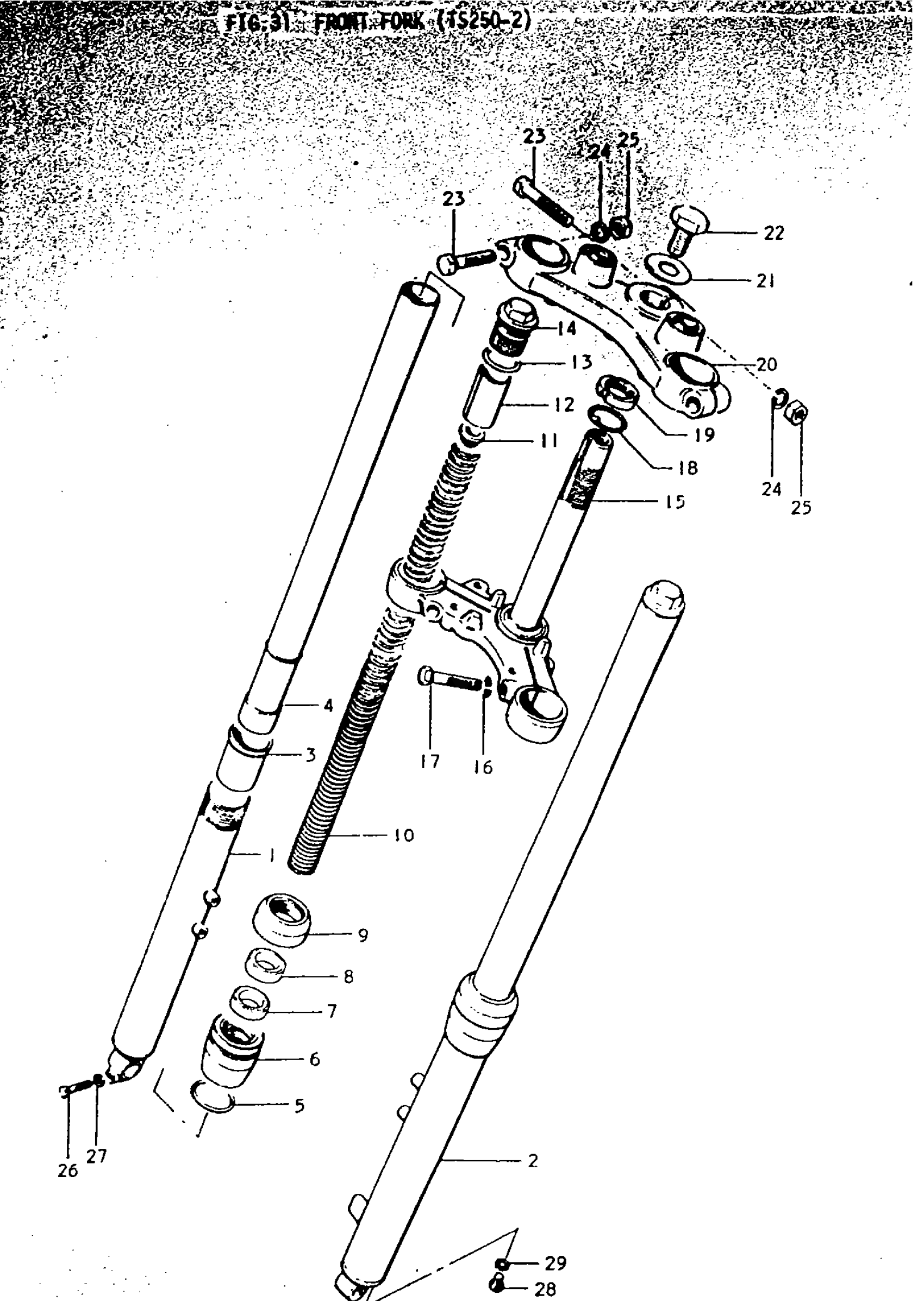

Suzuki TS250 (1970) FRONT FORK (TS250-2) Diagram

#

Description
Price

0

FRONT FORK ASSY | Includes Item(s) 1 - 29

51100-16411-019

Unavailable

1

TUBE, OUTER RH | CHROME-PLANTED

51130-16411

Unavailable

2

TUBE, OUTER LH | CHROME-PLANTED

51140-16411

Unavailable

3

GUIDE, INNER TUBE

51152-11010

Unavailable

4

TUBE, INNER

51110-16411

Unavailable

5

O RING

51154-11010

Unavailable

6

NUT, OUTER TUBE | FROM 51150-16412

51150-16413

Unavailable

7

OIL SEAL This part replaces 51153-11010.

51153-16511

Unavailable

8

OIL SEAL This part replaces 51153-16510.

51153-16511

Unavailable

9

DUST SEAL

51173-16411

Unavailable

10

SPRING

51171-16410

Unavailable

11

GUIDE, SPRING

51172-16410

Unavailable

12

SPACER, SPRING

51176-16410

Unavailable

13

O RING

51117-16310

Unavailable

14

BOLT, FORK FITTING

51351-16411

Unavailable

15

STEM, STEERING

51410-16411

Unavailable

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

BOLT | TO 51451-18630

51451-15010

Unavailable

18

WASHER, STEERING STEM

51641-08010

Unavailable

19

NUT, STEERING STEM | TO 51632-01600

51632-01000

Unavailable

20

HEAD, STEERING STEM

51310-16413-019

Unavailable

21

WASHER, STEERING STEM

51356-16410

Unavailable

22

NUT, STEERING STEM

51352-16410

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 01221-10508.

01204-10508

Unavailable

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

NUT

08312-21108

Unavailable

26

BOLT

01121-08308

Unavailable

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

SCREW

02111-04088

Unavailable

29

GASKET, DRAIN PLUG

51183-03010

$2.07
