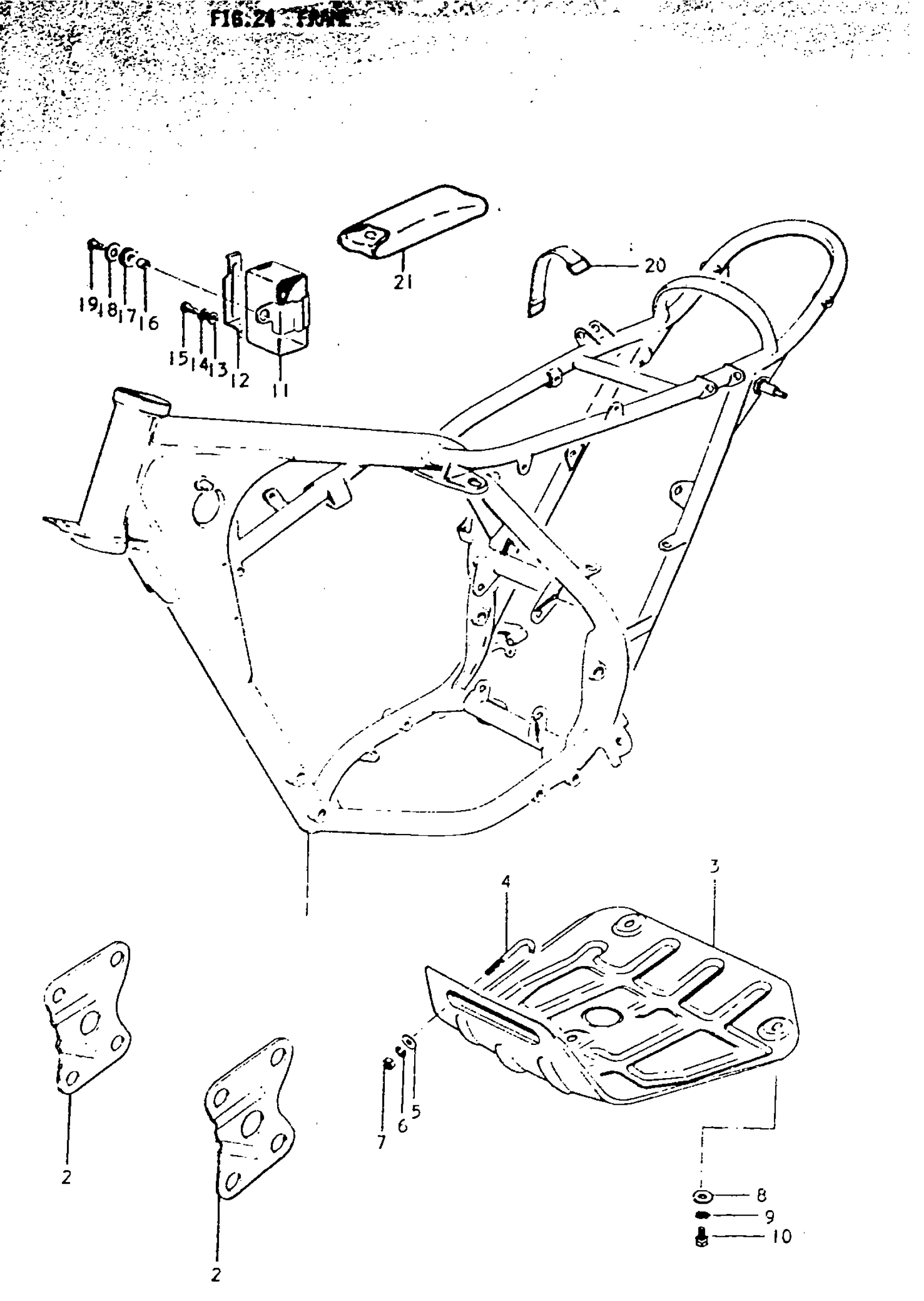

Suzuki TS250 (1970) FRAME Diagram

#

Description
Price

1

FRAME | 1

41100-16400-019

Unavailable

1

FRAME | 2

41100-16401-019

Unavailable

2

PLATE, ENGINE PROTECTOR

11611-16401

Unavailable

3

PROTECTOR, ENGINE

11911-16400

Unavailable

4

HOOK

11921-16400

Unavailable

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

.NUT This part replaces 08311-11068.

08310-00067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

BOLT This part replaces 01112-06128.

01500-06127

$1.97

11

HOLDER, BATTERY

41540-16400

Unavailable

12

PLATE, BATTERY HOLDER | TO 41561-30000

41561-16400

Unavailable

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

SCREW (6X10) | 6x12 This part replaces 09128-06004.

09128-06044

$1.49

16

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

17

CUSHION (8.5X20X8) | 8.5x20x8 This part replaces 09320-08007.

09320-08510

$1.97

18

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

19

SCREW | 6x6 This part replaces 09128-06005.

02162-0616B

$2.03

20

BAND, TOOL

09462-00033

$3.20

21

TOOL

09800-00112

Unavailable
