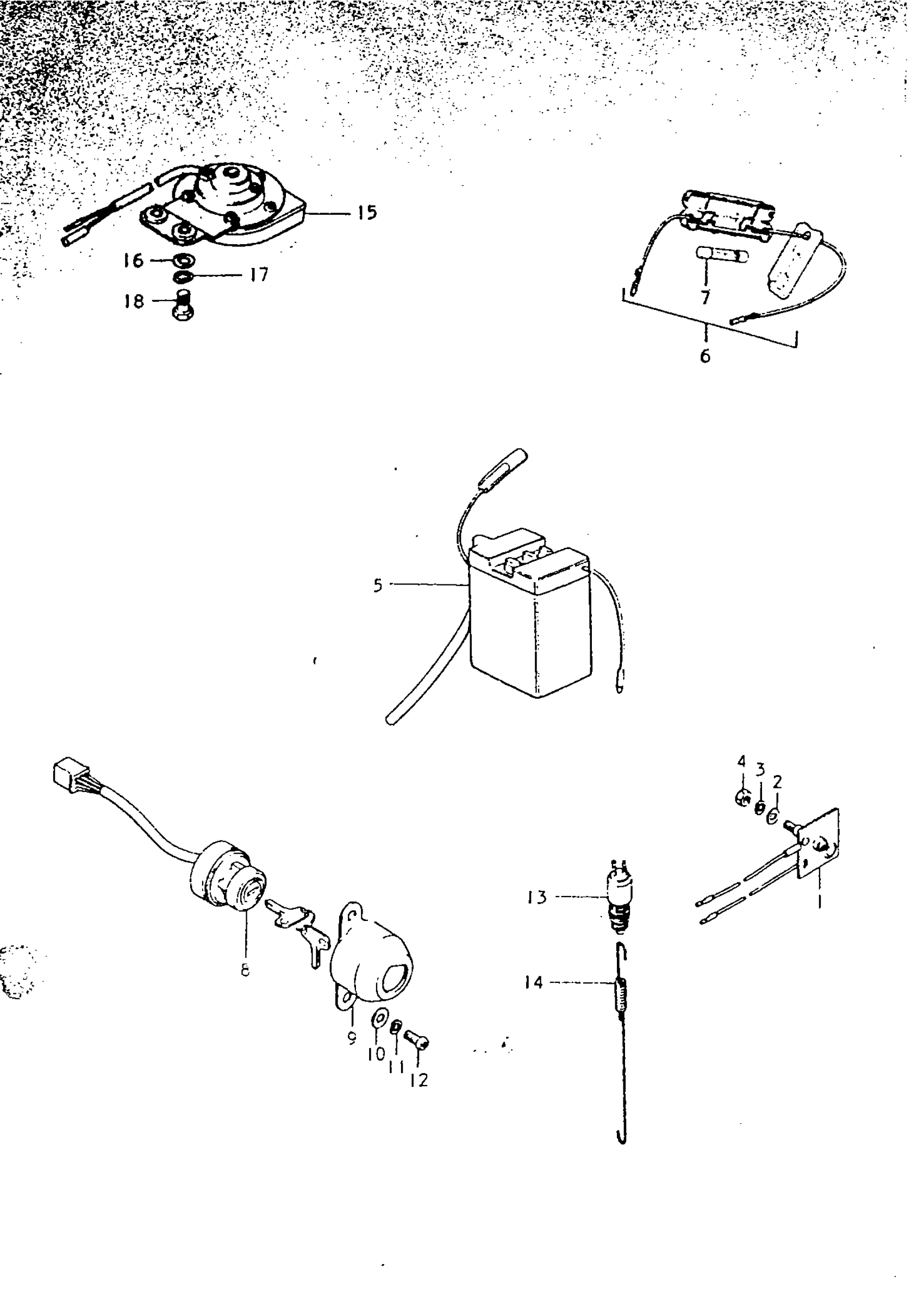

Suzuki TS250 (1970) ELECTRICAL (2) Diagram

#

Description
Price

1

RECTIFIER This part replaces 32800-16420.

32800-16421

Unavailable

2

WASHER This part replaces 08322-21058.

08322-01057

$2.13

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

NUT This part replaces 08311-11058.

08310-00057

$1.84

5

NO DESCRIPTION AVAILABLE | 6V, 2AH This part replaces 33610-04010.

33610-04021

Unavailable

6

FUSE CASE ASSY | Includes Item(s) 7 This part replaces 36740-15010.

36740-15011

$9.38

7

FUSE | 15A

09481-15001

$2.06

8

SWITCH ASSY, IGNITION | 1

37110-16410

Unavailable

8

SWITCH ASSY, IGNITION | 2

37110-16411

Unavailable

9

BRACKET, IGNITION SWITCH | 1

37115-16400

Unavailable

9

BRACKET, IGNITION SWITCH | 2

37115-16401

Unavailable

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SCREW This part replaces 02111-06128.

02112-06127

$1.84

13

SWITCH ASSY, BRAKE LAMP

37610-53011

$30.75

14

SPRING | TO 09443-06021

09443-06014

Unavailable

15

HORN This part replaces 38500-16430.

38500-16431

Unavailable

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

BOLT

01121-08258

Unavailable
