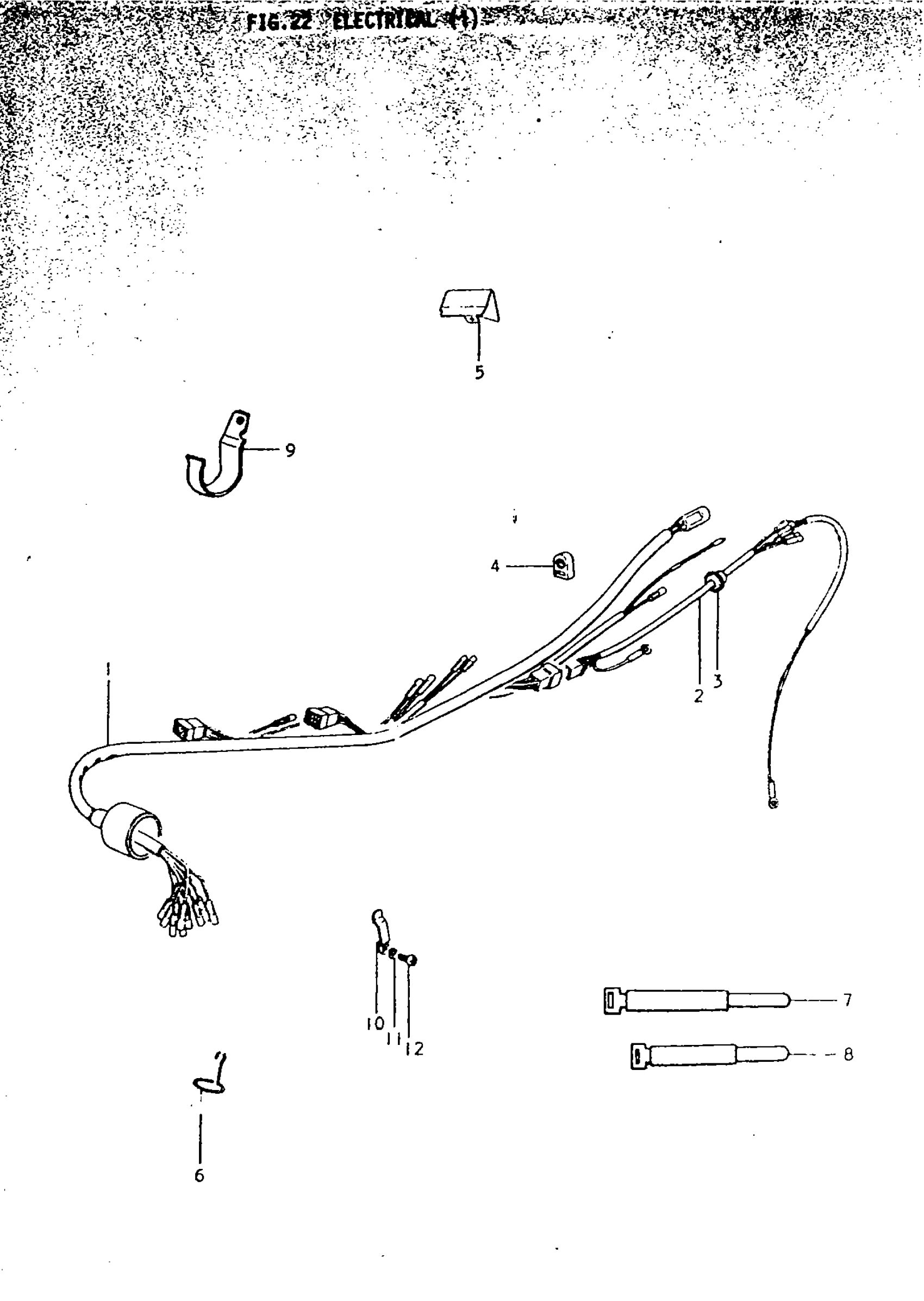

Suzuki TS250 (1970) ELECTRICAL (1) Diagram

#

Description

Price

1

WIRING HARNESS (A) | 1

36610-16400

Unavailable

1

WIRING HARNESS | 2

36610-16401

Unavailable

2

WIRING HARNESS (B) | 1

36620-16400

Unavailable

3

CROMMET | 1

09308-06001

Unavailable

4

BAND

33881-58001

Unavailable

5

PROTECTOR | 2

36651-16400

Unavailable

6

CLIP

36619-16400

Unavailable

7

CLAMP

09410-00014

Unavailable

8

CLAMP | FROM 09410-00006

09410-00023

Unavailable

9

CLAMP | 2

09403-00055

Unavailable

10

CLAMP, CABLE This part replaces 09403-00003.

09403-06301

Unavailable

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SCREW This part replaces 02111-06128.

02112-06127

$1.84
