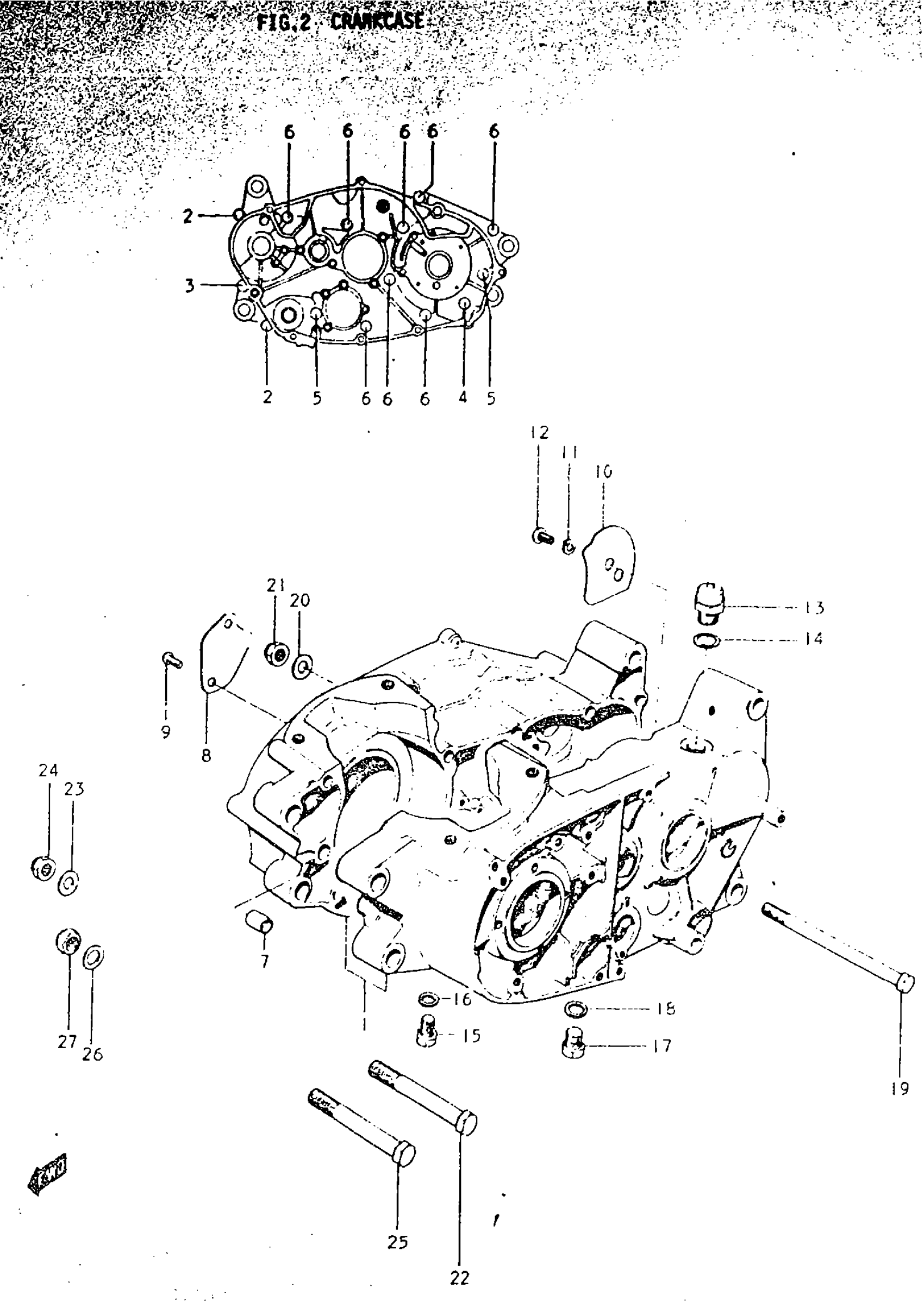

Suzuki TS250 (1970) CRANKCASE Diagram

#

Description
Price

1

CRANCASE ASSY | Includes Item(s) 2 - 7

11300-16808

Unavailable

2

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

3

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

4

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW This part replaces 02112-06608.

02112-06607

$2.57

6

SCREW This part replaces 02112-06708.

02112-06707

$2.53

7

DOWEL PIN

04211-11129

$1.76

8

PLATE, OIL RESERVOIR

12561-16400

Unavailable

9

SCREW This part replaces 02111-06128.

02112-06127

$1.84

10

PLATE, BREATHER

24822-16400

Unavailable

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SCREW

02111-06108

Unavailable

13

PLUG, BREATHER

24821-10000

Unavailable

14

GASKET, BREATHER PLUG

09168-14002

$2.26

15

PLUG, DRAIN | 1; 10 SCREW

09247-10001

$2.20

16

GASKET, DRAIN PLUG

09168-10002

$2.13

17

PLUG, DRAIN | 2; 12 SCREW This part replaces 09247-12102.

09247-12104

$2.73

18

GASKET, DRAIN PLUG

09168-12003

$1.71

19

BOLT 10X125 | 2; 10x125 This part replaces 09100-10051.

09100-10274

$7.15

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

NUT | 2; TO 09159-10011

09159-10001

Unavailable

22

BOLT This part replaces 01122-10808.

01500-1080B

$4.68

23

WASHER This part replaces 08322-11108.

08322-01107

$2.15

24

NUT | 4; TO 09159-100112; TO 09159-10011

09159-10001

Unavailable

25

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

26

WASHER This part replaces 08322-11088.

08322-01087

$2.13

27

NUT This part replaces 09159-08001.

09159-08020

$1.78
