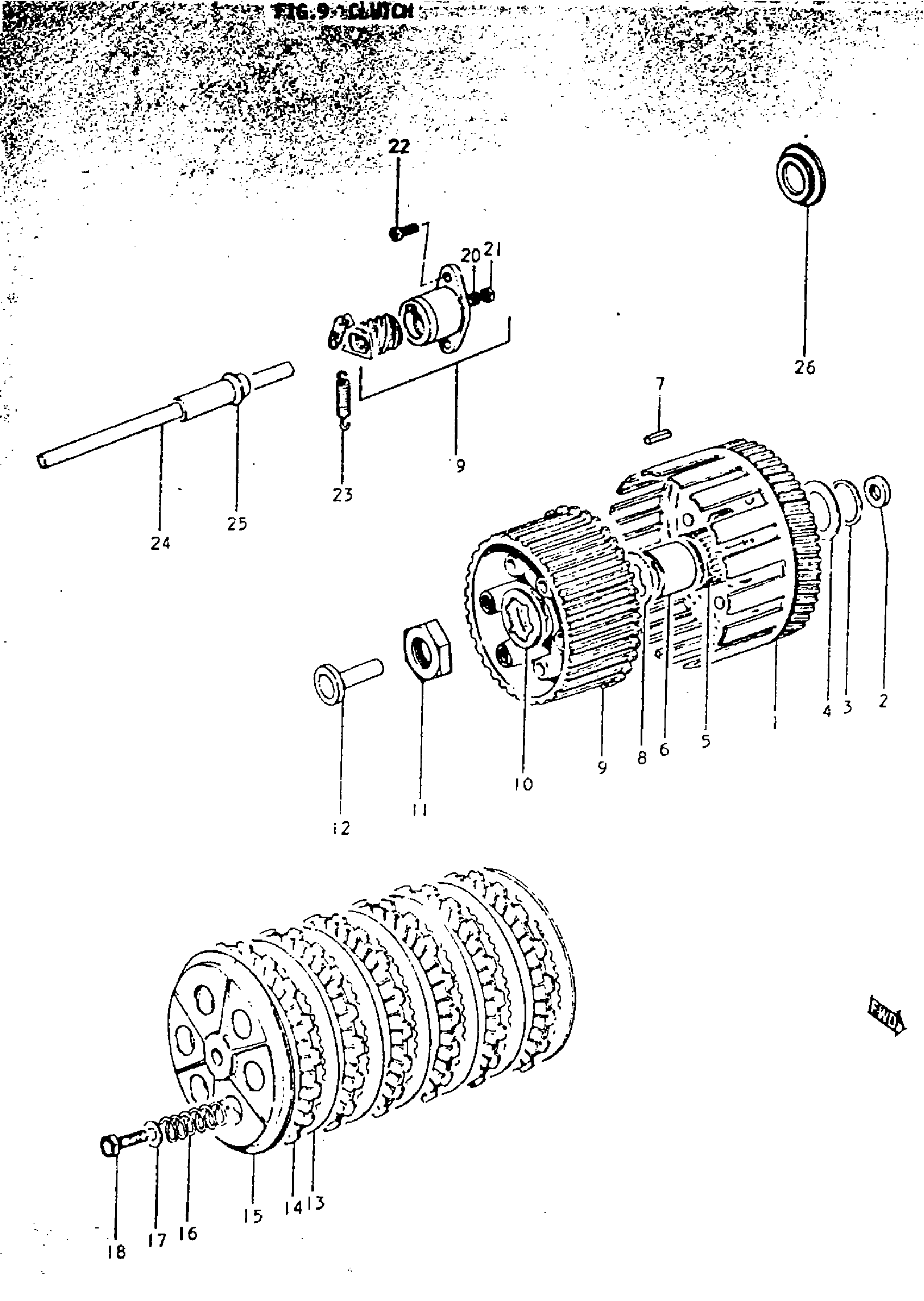

Suzuki TS250 (1970) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | 1

21200-16401

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | 2; NT:63

21200-16402

Unavailable

2

OIL SEAL

09284-08001

$2.42

3

WASHER | 25x35x1:FROM 09160-25005

09160-25013

Unavailable

4

WASHER | FROM 09160-25006

08211-25443

Unavailable

5

BEARING

09263-32002

Unavailable

6

SPACER | 1; 23x32x26

09180-25021

Unavailable

6

SPACER | 2

09180-25027

Unavailable

7

KEY | 2

09421-04001

Unavailable

8

WASHER | 1; 20x44x3

09160-20015

$5.88

8

WASHER | 2

09167-22008

Unavailable

9

HUB, CLUTCH SLEEVE | 1 This part replaces 21411-18000.

21411-18001

Unavailable

9

HUB, CLUTCH SLEEVE | 2

21411-16400

Unavailable

10

WASHER | 1; FROM 09167-20006

09167-20001

Unavailable

10

WASHER | 2

09167-22005

$2.11

11

NUT | 1; 20 SCREW

09140-20001

$3.37

11

NUT | 2; 22 SCREW

09140-22003

Unavailable

12

ROD, CLUTCH RELEASE | TO 23121-03010

23121-10000

Unavailable

13

PLATE, CLUTCH DRIVEN This part replaces 21451-15000.

21451-31000

$10.40

14

PLATE, CLUTCH DRIVE

21441-15000

Unavailable

15

PLATE, CLUTCH PRESSURE

21462-15000

Unavailable

16

SPRING

09440-19004

$2.50

17

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

18

BOLT

01111-06168

Unavailable

19

SCREW ASSY, RELEASE | 1 This part replaces 23200-15000.

23200-15001

Unavailable

19

SCREW ASSY, RELEASE | 2; Includes Item(s) 20 - 21

23200-16400

Unavailable

20

SCREW | 8x25

09134-08006

Unavailable

21

NUT This part replaces 08312-31088.

08310-00087

$2.13

22

SCREW This part replaces 02111-06128.

02112-06127

$1.84

23

SPRING

09443-08001

$2.92

24

ROD, PUSH | OD:8, L:112.5

23111-16400

Unavailable

25

DUST SEAL

09287-09001

Unavailable

26

PLUG, CLUTCH RELEASE

09250-30003

$3.89
