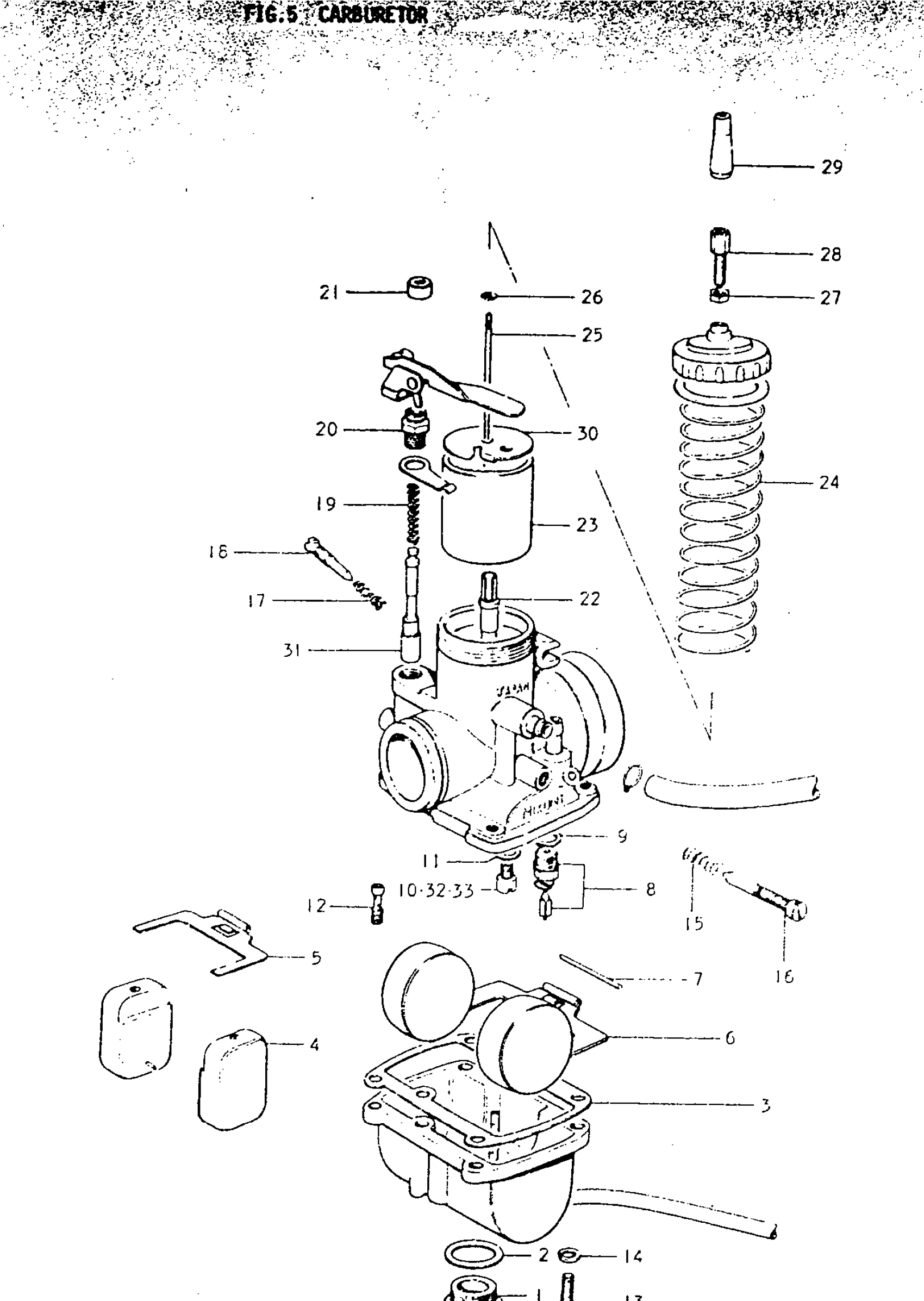

Suzuki TS250 (1970) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | 1; TO 15200-16601

13200-16600

Unavailable

1

CARBURETOR ASSY | 2; Includes Item(s) 1 - 31

13200-16601

Unavailable

1

PLUG, DRAIN

13247-16600

Unavailable

2

GASKET, DRAIN PLUG

13249-16600

Unavailable

3

GASKET, FLOAT CHAMBER

13251-16600

Unavailable

4

FLOAT | 1

13252-16600

$27.77

5

ARM, FLOAT | 1

13253-16600

Unavailable

6

FLOAT | 2

13252-16601

Unavailable

7

PIN, FLOAT

13254-11010

Unavailable

8

VALVE ASSY, NEEDLE | 1

13370-16600

Unavailable

8

VALVE,NEEDLE | 2 This part replaces 13370-18010.

13370-41500

Unavailable

9

GASKET, NEEDLE VALVE

13392-16600

$1.94

10

JET, MAIN (115) | 1; #115 This part replaces 09491-23002.

09491-23011

$9.63

10

JET, MAIN (117.5) | 2; #117.5 This part replaces 09491-23004.

09491-23017

$11.83

11

GASKET

13382-03110

$2.80

12

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

$9.55

13

SCREW This part replaces 02111-05168.

02112-05167

$1.97

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

SPRING, THROTTLE STOP SCREW

13268-03110

$5.45

16

SCREW, THROTTLE STOP | 1 This part replaces 13267-15110.

13267-40230

$9.85

16

SCREW, THROTTLE STOP | 2

13267-16601

Unavailable

17

SPRING, PILOT SCREW

13268-01010

$5.28

18

SCREW, PILOT

13269-15010

Unavailable

19

SPRING, STARTER | 1

13417-09210

Unavailable

19

SPRING, STARTER | 2; TO 13417-18630

13417-20010

Unavailable

20

CAP, STARTER VALVE

13418-09110

$12.47

21

COVER, STARTER VALVE

13682-09210

$2.92

22

NOZZLE, NEEDLE | 1; P-2

09494-00054

Unavailable

22

NOZZLE, NEEDLE | 2; P-6

09494-00065

Unavailable

22

NOZZLE, NEEDLE | P-0, OPT This part replaces 09494-00052.

09494-00054

Unavailable

23

VALVE, THROTTLE | 1; CA:2.0

13551-16600

Unavailable

23

VALVE, THROTTLE | 2; CA:2.0

13551-16601

Unavailable

24

SPRING | 1 This part replaces 13573-16600.

13573-16601

Unavailable

24

SPRING, THROTTLE VALVE | 2

13573-16601

Unavailable

25

NEEDLE, JET | 1; 5EP06

13383-16600

Unavailable

25

NEEDLE, JET | 2; 5DP10

13383-16601

Unavailable

26

CLIP

13394-10010

$5.45

27

NUT, CABLE ADJUSTER

13661-16600

$4.64

28

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

29

BOOT, CABLE ADJUSTER

13681-16600

$3.77

30

SEAT, THROTTLE VALVE SPRING

13581-16600

Unavailable

31

PLUNGER, STARTER

13411-18010

Unavailable

32

JET, MAIN (120) | 2; OPT #120 This part replaces 09491-24005.

09491-24016

$11.38

32

JET, MAIN (115) | 2; OPT #115 This part replaces 09491-23002.

09491-23011

$9.63

32

JET, MAIN (112.5) | OPT, #112.5 This part replaces 09491-22005.

09491-22015

$9.69

33

JET, MAIN (105) | OPT, #105 This part replaces 09491-21003.

09491-21016

$12.13

33

JET, MAIN (#107.5) | OPT #107.5 This part replaces 09491-21006.

09491-21014

$11.83

33

JET, MAIN (110) | OPT #110 This part replaces 09491-22004.

09491-22016

$10.06

33

JET, MAIN (127.5) | OPT #127.5 This part replaces 09491-25003.

09491-25011

$11.38

33

JET, MAIN (130) | OPT #130 This part replaces 09491-26004.

09491-26011

$11.38

33

JET, MAIN (135) | OPT #135 This part replaces 09491-27002.

09491-27009

$11.92
