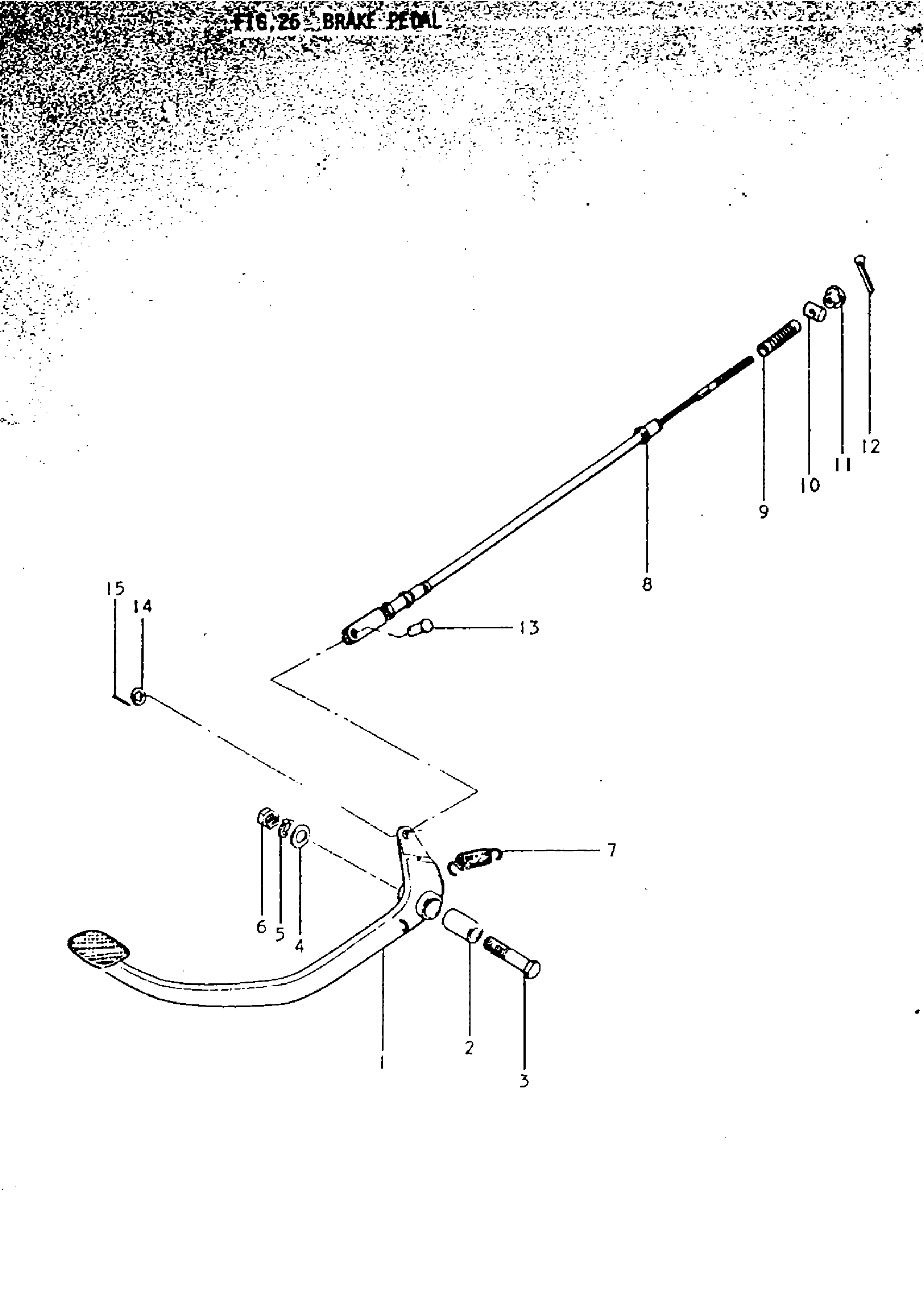

Suzuki TS250 (1970) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-16400

Unavailable

2

SPACER | 10.4x16x30

09180-10001

$3.58

3

BOLT | 10x50

09100-10014

Unavailable

4

WASHER This part replaces 08322-21108.

08322-01107

$2.15

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

NUT This part replaces 08312-11108.

08310-00107

$2.19

7

SPRING

09443-14003

Unavailable

8

CABLE ASSY, REAR BRAKE | Includes Item(s) 9 - 11

58500-16400

Unavailable

9

BOOT

09287-05001

Unavailable

10

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

11

.NUT This part replaces 09150-06001.

09150-06010

$3.10

12

COTTER PIN

04111-20128

Unavailable

13

PIN

09200-05001

$1.65

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

COTTER PIN

04111-20128

Unavailable
