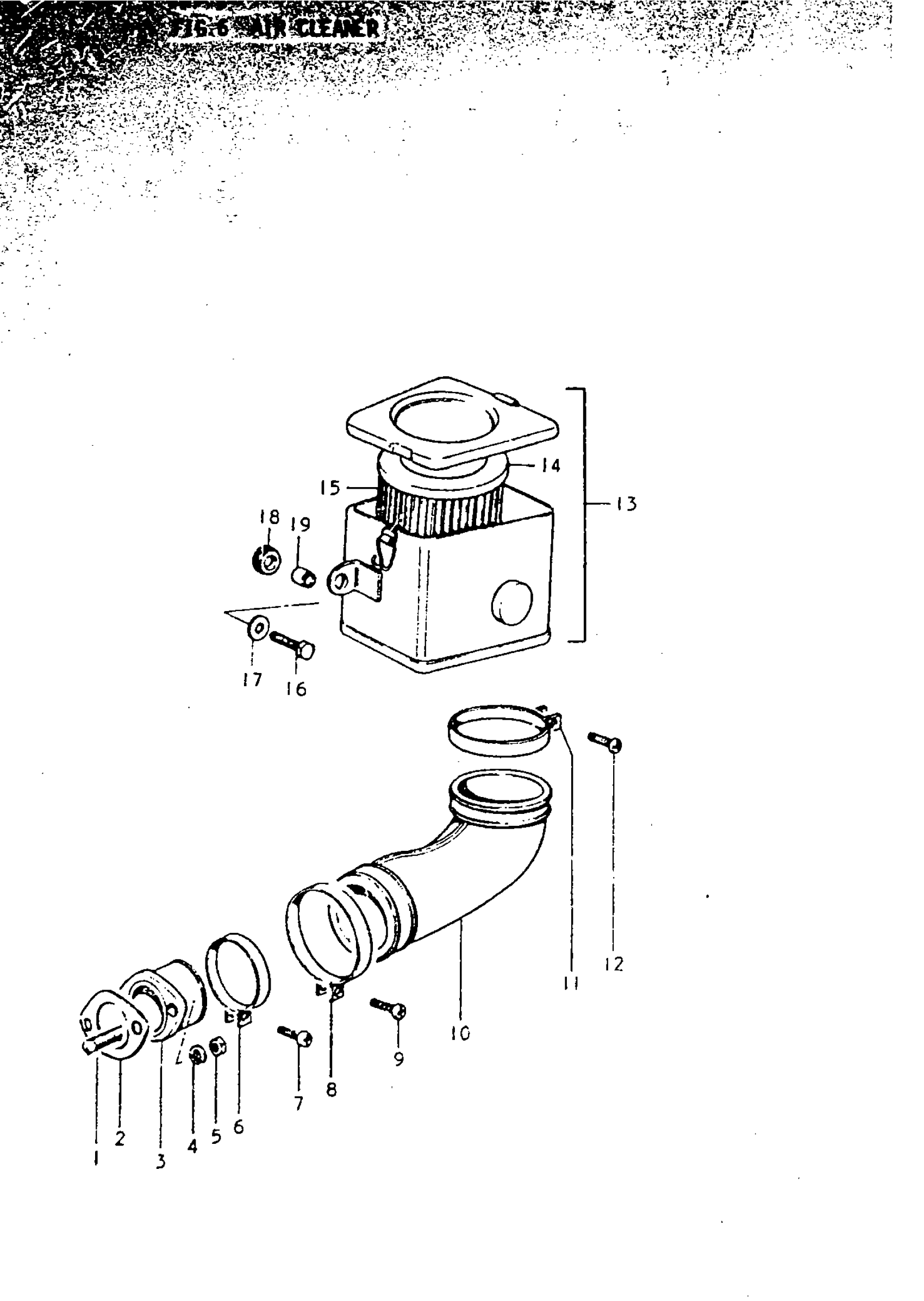

Suzuki TS250 (1970) AIR CLEANER Diagram

#

Description
Price

1

STUD BOLT This part replaces 01421-08168.

01421-0816A

$1.78

2

GASKET, CARBURETOR

13125-15000

Unavailable

3

PIPE, INTAKE This part replaces 13110-16400.

13110-16500

Unavailable

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

NUT This part replaces 08312-11088.

08310-00087

$2.13

6

CLAMP (A)

09402-00071

Unavailable

7

SCREW

02111-05208

Unavailable

8

CLAMP This part replaces 09402-00092.

09402-66306

$6.42

9

SCREW

02111-05258

Unavailable

10

HOSE, AIR CLEANER

13881-16400

Unavailable

11

CLAMP This part replaces 09402-00188.

09402-70306-XC0

$5.55

12

SCREW

02111-05208

Unavailable

13

CLEANER ASSY, AIR | Includes Item(s) 14 - 15

13700-16411

Unavailable

14

FILTER | TO 13780-30610

13780-16411

Unavailable

15

ELEMENT

13781-30610

Unavailable

16

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

17

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

18

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

19

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48
