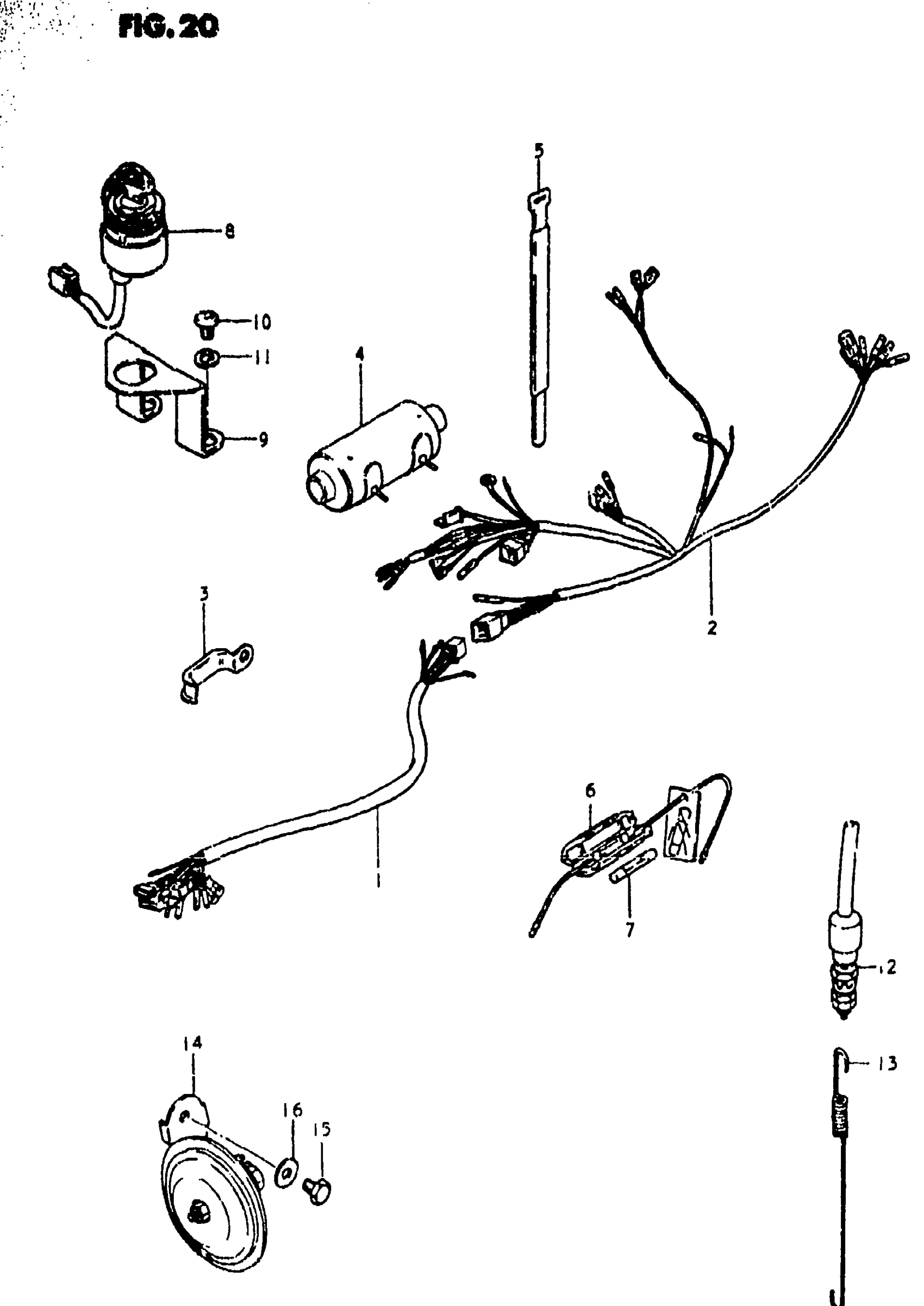

Suzuki TS185 (1981) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS NO.1

36610-30910

Unavailable

2

WIRING HARNESS NO.2 | MODEL T This part replaces 36620-30910.

36620-30911

Unavailable

2

WIRING HARNESS NO.2 | MODEL X

36620-30911

Unavailable

3

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

4

BOOT

36618-30610

$8.83

5

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

5

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

5

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

6

FUSE CASE ASSY | Includes Item(s) 7 This part replaces 36740-15010.

36740-15011

$9.38

7

FUSE (15A)

09481-15001

$2.06

8

SWITCH ASSY IGN This part replaces 37110-48500.

37110-48501

$108.97

9

BRACKET

37115-48501

Unavailable

10

SCREW This part replaces 02112-06108.

02112-06107

$1.49

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SWITCH, REAR BRAKE LAMP This part replaces 37740-04570.

37740-48071

$19.18

13

SPRING

09448-11004

$3.13

14

NO DESCRIPTION AVAILABLE This part replaces 38500-48580.

38500-48581

Unavailable

15

BOLT This part replaces 01107-06108.

01500-06107

$2.06

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13
