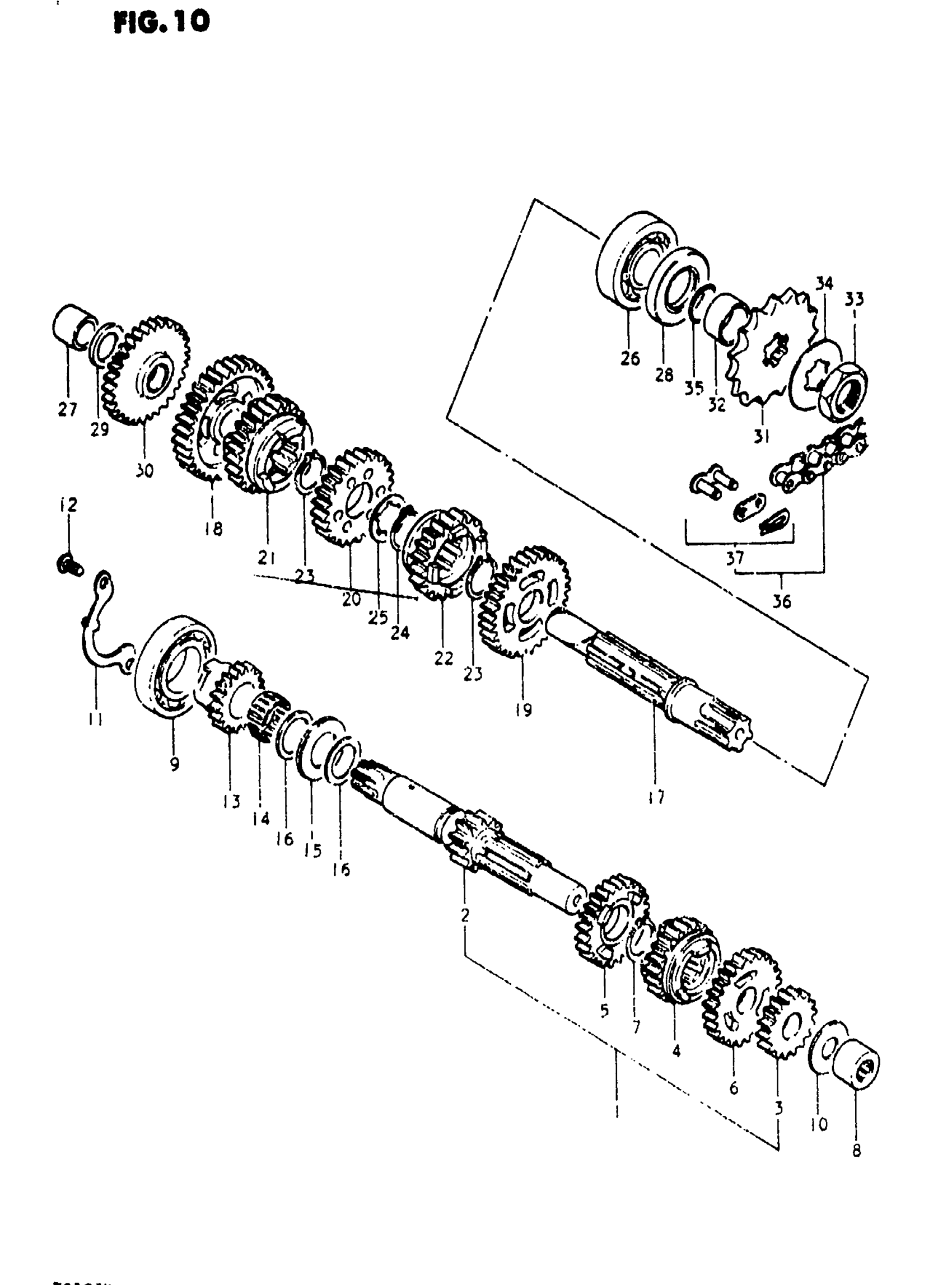

Suzuki TS185 (1981) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-29007

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 24121-29003.

24121-29004

Unavailable

3

GEAR, 2ND DRIVE (NT:16)

24221-28001

Unavailable

4

GEAR, 3RD DRIVE (NT:20)

24231-28003

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 24241-28000.

24241-28001

Unavailable

6

GEAR, 5TH DRIVE (NT:25)

24250-28000

Unavailable

7

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

8

BEARING, LH

09263-15009

$13.17

9

BALL BEARING This part replaces 08110-60060.

08113-60060

$24.18

10

WASHER

08211-15301

$2.45

11

HOLDER, BEARING

24741-28001

Unavailable

12

SCREW This part replaces 02112-06128.

02112-06127

$1.84

13

GEAR, KICK DRIVEN (NT:18)

26281-36200

$71.33

14

BEARING

09263-19006

$27.08

15

BEARING

09263-21006

$15.48

16

WASHER

09160-21007

$2.92

17

DRIVESHAFT

24131-28001

Unavailable

18

GEAR, 1ST DRIVEN (NT:33)

24310-28000

Unavailable

19

GEAR, 2ND DRIVEN (NT:29)

24321-28001

$85.15

20

NO DESCRIPTION AVAILABLE This part replaces 24331-28001.

24331-28002

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 24341-28002.

24341-28003

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 24351-28001.

24351-28002

Unavailable

23

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

24

CIRCLIP

09380-20006

$2.90

25

LOCK WASHER, LH This part replaces 09167-20007.

09167-20022

Unavailable

26

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$23.28

27

BUSHING

09303-15004

$5.07

28

SEAL,OIL,25X44X This part replaces 09283-25009.

09283-25107

$6.02

29

WASHER

08211-15301

$2.45

30

NO DESCRIPTION AVAILABLE This part replaces 26260-28002.

26260-28003

Unavailable

31

SPROCKET,ENGINE This part replaces 27511-29001.

27511-29002

$29.88

32

SPACER

09180-20039

$7.31

33

NUT

09140-20001

$3.37

34

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

35

O RING

09280-20001

$1.65

36

CHAIN,DRIVE ASS | Includes Item(s) 37 - 37 This part replaces 27600-36600.

27600-46K00-116

$167.95

37

JOINT This part replaces 27620-29310.

27620-29311

Unavailable

37

JOINT (RK)

27620-28220

Unavailable
