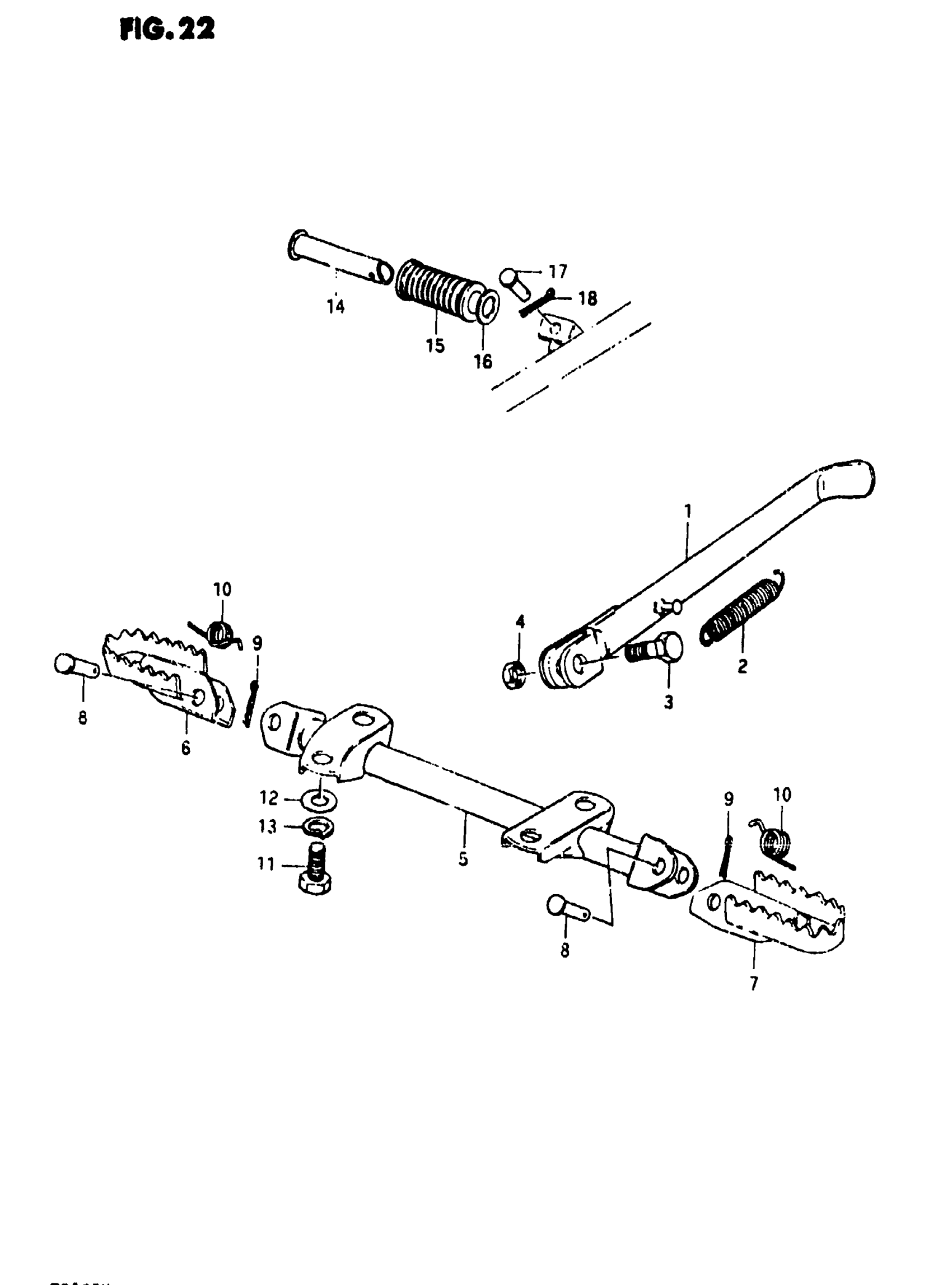

Suzuki TS185 (1981) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP

42310-48500

Unavailable

2

SPRING

09443-14017

$3.04

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

BAR, FRONT FOOTREST

43510-29303

Unavailable

6

FOOTREST, RH

43550-29300

$22.22

7

FOOTREST, LH

43560-29300

$19.25

8

PIN

09200-10008

$2.62

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

10

SPRING

09448-15004

$2.34

11

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

14

BAR, PILLION FOOTREST

43610-03001

$6.52

15

RUBBER

43612-03001

$5.15

16

WASHER This part replaces 09160-19006.

09160-19024

$2.65

17

PIN

09200-06010

$1.72

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
