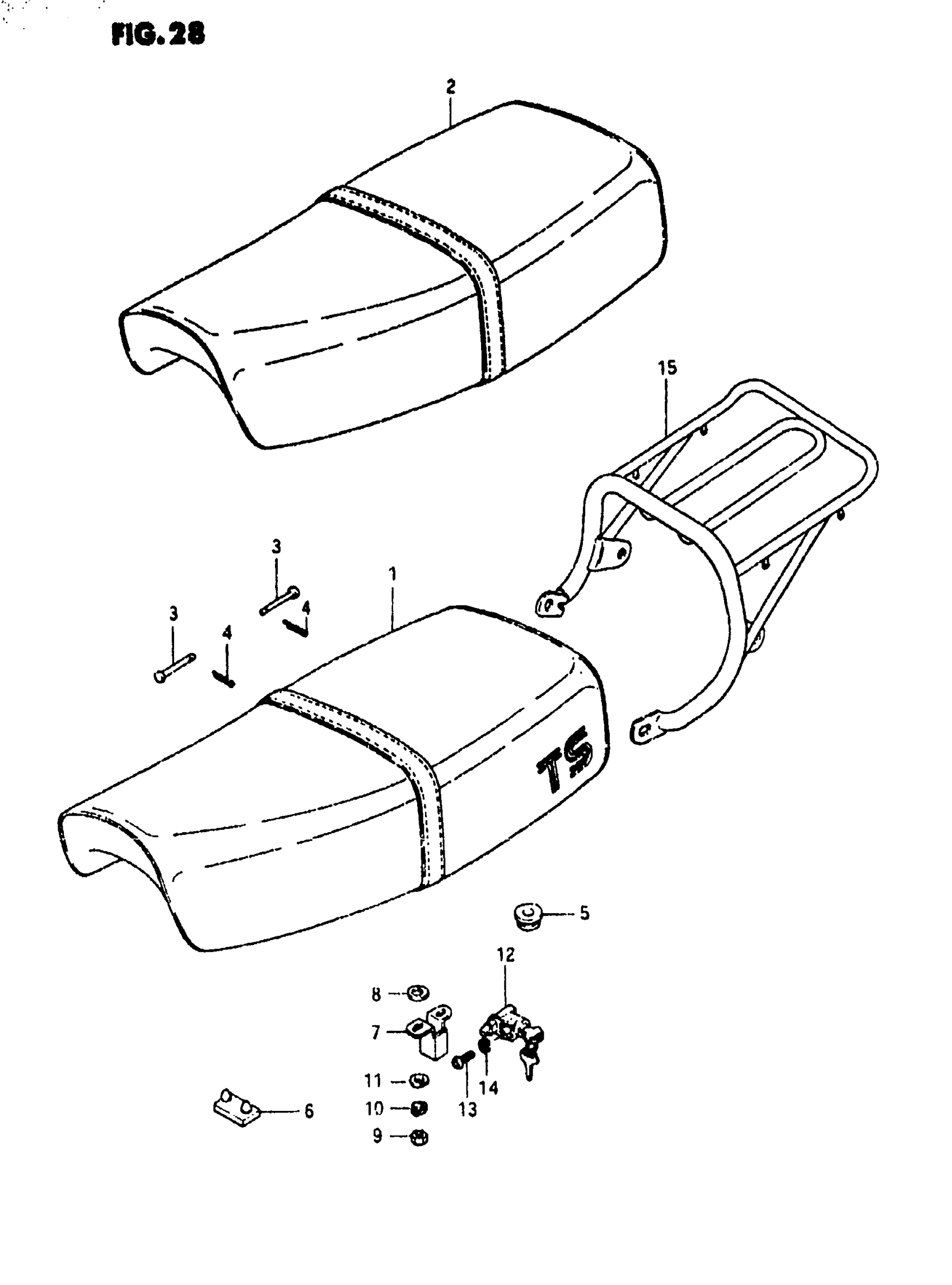

Suzuki TS185 (1981) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 45100-29920-866.

45100-29940-48F

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 45100-29940-866.

45100-29940-48F

Unavailable

3

PIN

09200-06018

$2.06

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION

09320-20004

$2.92

6

CUSHION

09321-08010

$3.85

7

PLATE, CLAMP GUIDE

45213-29300

Unavailable

8

SHIM (8.5x18x1.0)

09160-08043

$1.83

9

.NUT This part replaces 08310-11068.

08310-00067

$2.13

10

LOCK WASHER This part replaces 08321-31068.

08321-01067

$2.13

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

SEAT LOCK SET

95700-30832

$74.08

13

SCREW This part replaces 02112-05128.

02112-05127

$1.97

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

CARRIER (OPT)

46310-48500

$142.43
