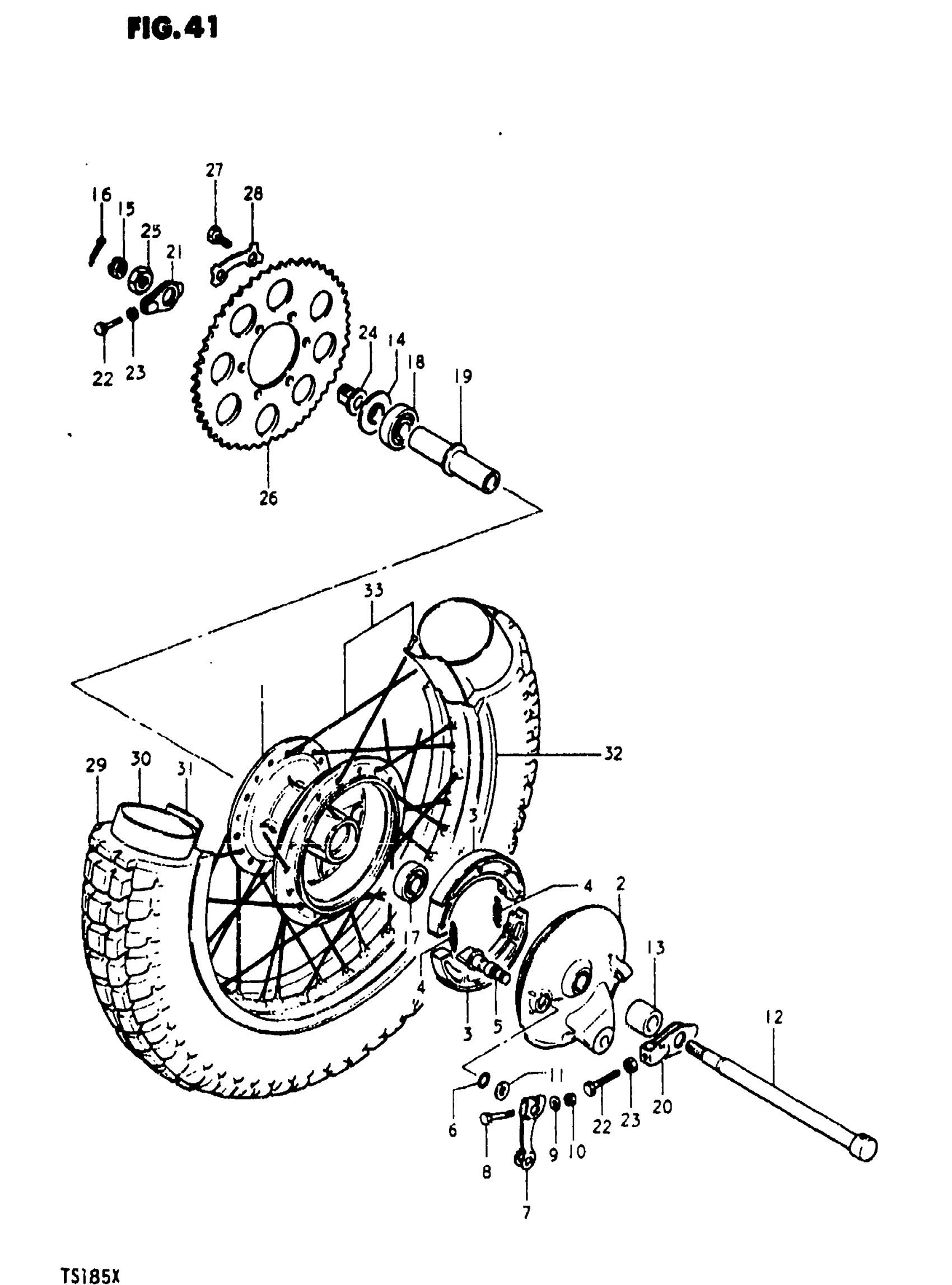

Suzuki TS185 (1981) REAR WHEEL Diagram

NO DESCRIPTION AVAILABLE This part replaces 64110-38001.

64110-38002

Unavailable

PANEL, BRAKE ANCHER

64210-48000

Unavailable

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

SPRING This part replaces 09443-07001.

09443-07025

$2.08

CAM, BRAKE This part replaces 54441-29302.

54441-29305

$20.02

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

LEVER, BRAKE CAM This part replaces 64451-30500.

64451-30501

$20.06

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

WASHER This part replaces 08322-21068.

08322-01067

$2.13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

WASHER This part replaces 09160-14001.

09160-14055

$2.39

AXLE,RR This part replaces 64711-29300.

64711-29301

$62.07

SPACER, RH (15.2x22x26)

09180-15038

$7.77

SPACER, LH

64750-29300

$12.40

NUT This part replaces 08314-31128.

08314-3112A

$2.41

PIN This part replaces 04111-30308.

04111-3030A

$1.49

BEARING, RH

08143-62027

$16.01

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

SPACER, REAR HUB BEARING

64730-28001

Unavailable

ADJUSTER,CHAIN, This part replaces 61410-28004.

61410-28005

$10.09

LH CHAIN ADJUST This part replaces 61420-28003.

61420-28004

$11.48

BOLT (8x40)

09100-08146

$2.82

NUT This part replaces 08310-12088.

08310-00087

$2.13

SPACER, CHAIN ADJUSTER LH

64791-28001

$23.32

NUT This part replaces 09140-18005.

09140-18501

$2.93

SPROCKET, REAR (NT:39)

64511-29000

$66.18

BOLT (8x34)

09100-08094

$2.71

WASHER

09169-08013

$2.23

TIRE, REAR (4.10-18) | IRC

65100-48500

Unavailable

TUBE ASSY, WHEEL INNER | IRC This part replaces 65200-18010.

65200-44AA0

$53.43

IN TUBE PROTECT | IRC This part replaces 55261-11010.

55261-26F10

$4.39

RIM, WHEEL (1.85-18)

65311-48500

Unavailable

SPOKE SET

65320-28021

$57.37
