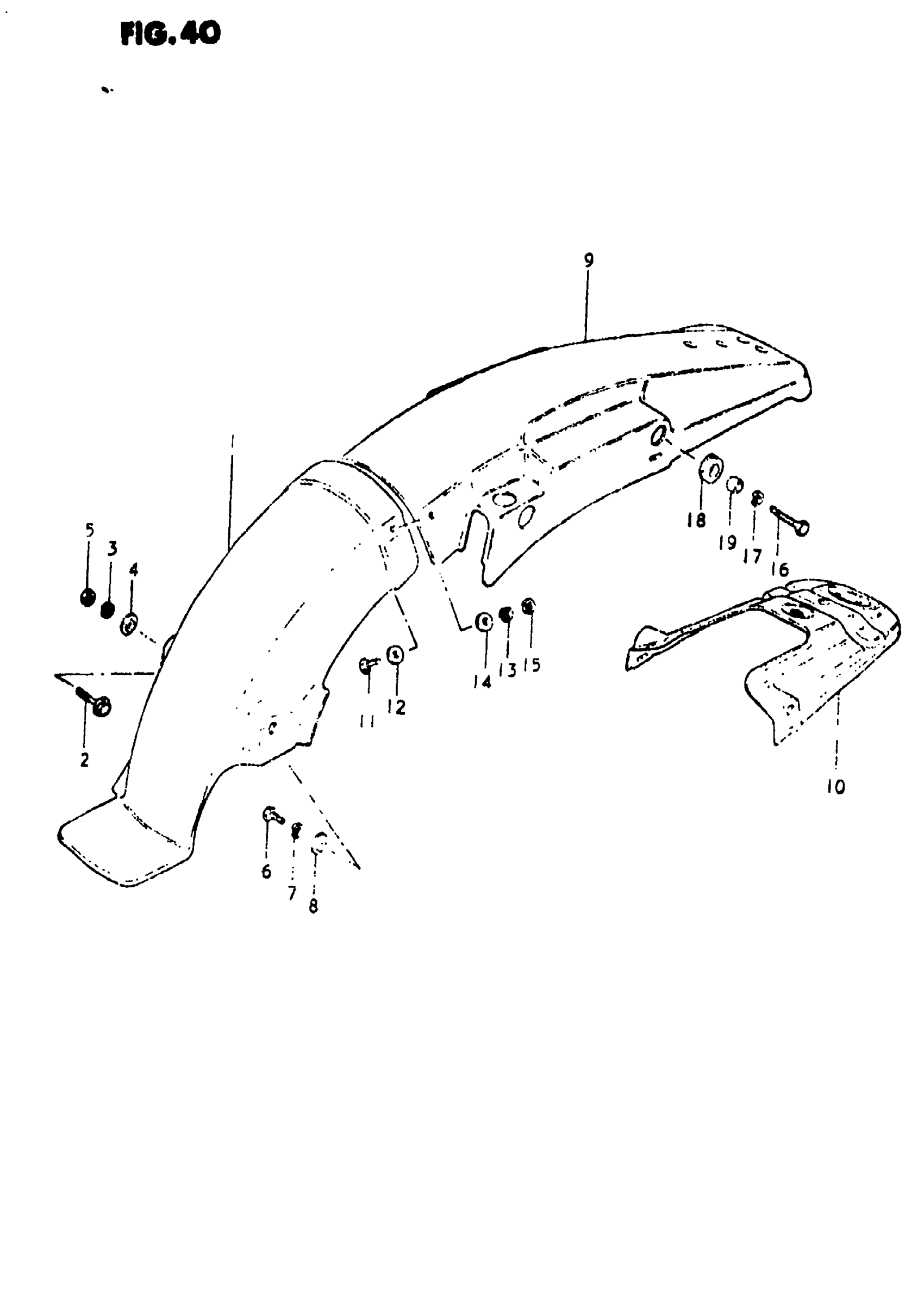

Suzuki TS185 (1981) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63112-29900.

63112-29901

Unavailable

2

BOLT This part replaces 01517-06168.

01550-06167

$2.30

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER

09169-06010

$2.60

5

.NUT This part replaces 08310-11068.

08310-00067

$2.13

6

BOLT This part replaces 01107-06128.

01500-06127

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER

09169-06010

$2.60

9

FENDER, REAR (BLUE)

63113-48501-08Y

Unavailable

10

REINFORCEMENT

63120-48501

Unavailable

11

BOLT This part replaces 01107-05168.

01500-0516B

$2.15

12

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

WASHER (5.2X16X1)

09160-05013

$1.49

15

NUT This part replaces 08310-11058.

08310-00057

$1.84

16

BOLT This part replaces 01107-08308.

01500-08307

$3.04

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

19

SPACER This part replaces 09180-08021.

09180-08188

$2.56
