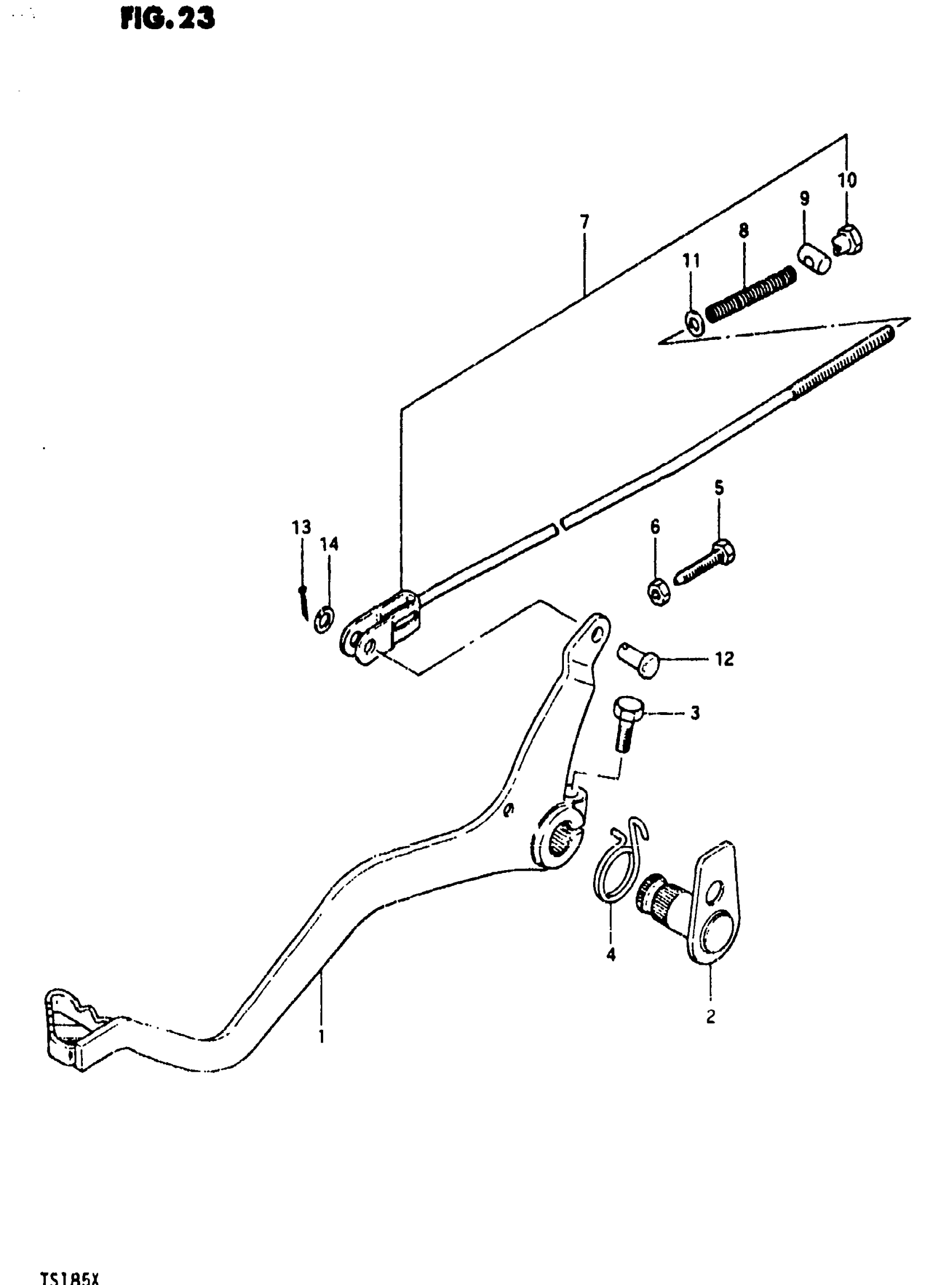

Suzuki TS185 (1981) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-48210

Unavailable

2

ARM, PEDAL LOD

43120-48210

$32.92

3

BOLT This part replaces 01107-06208.

01500-06207

$2.28

4

SPRING

09448-25001

$4.15

5

BOLT (6x27)

09100-06009

$1.91

6

.NUT This part replaces 08310-11068.

08310-00067

$2.13

7

LOD, REAR BRAKE | Includes Item(s) 8 - 14

43300-29910

$18.02

8

SPRING

09440-09004

$2.20

9

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

10

.NUT This part replaces 09150-06001.

09150-06010

$3.10

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

PIN

09200-06013

$2.00

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13
