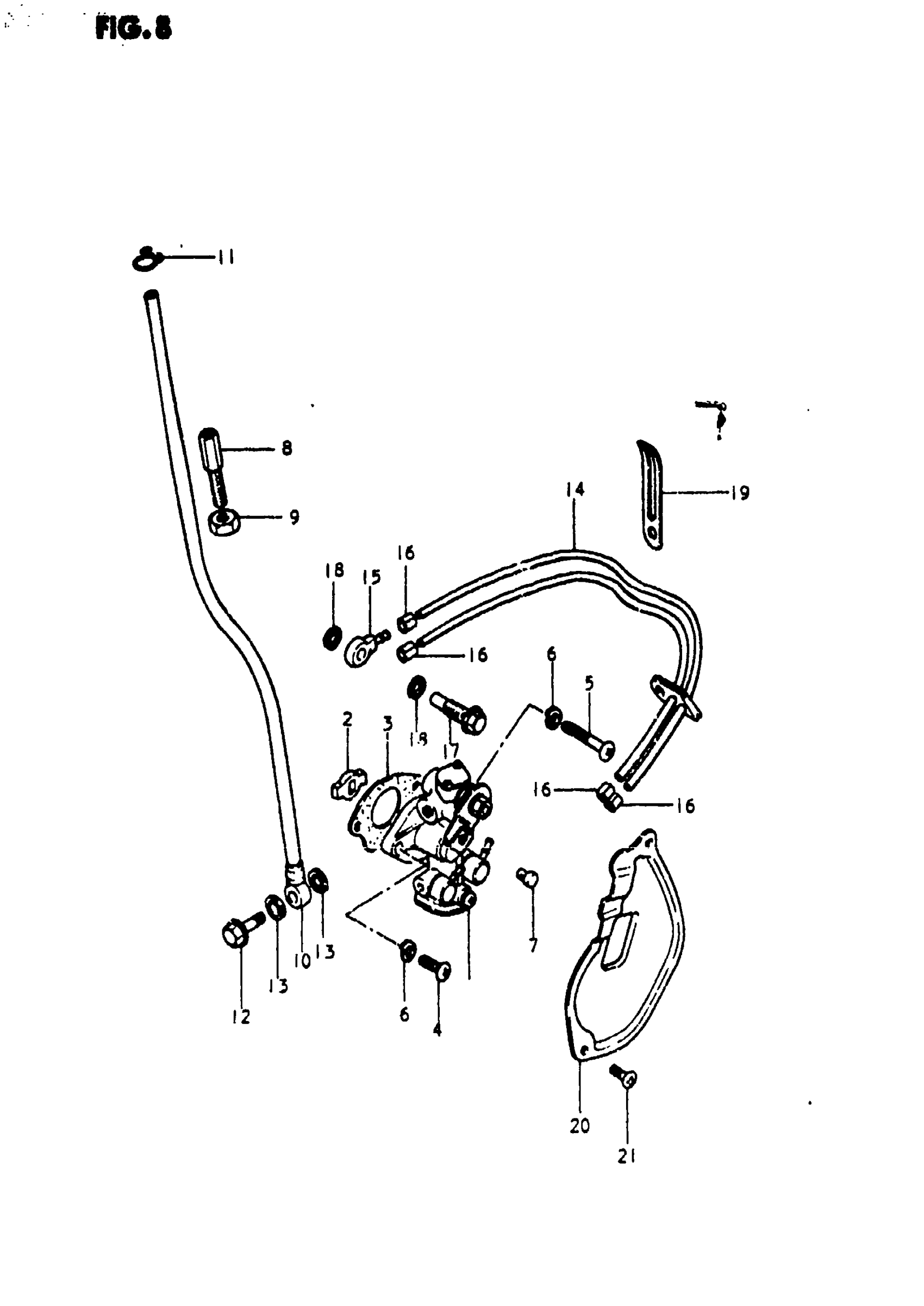

Suzuki TS185 (1981) OIL PUMP Diagram

NO DESCRIPTION AVAILABLE This part replaces 16100-29910.

16100-29911

Unavailable

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

GASKET

16731-03101

$2.81

SCREW This part replaces 02112-05168.

02112-05167

$1.97

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$5.05

ADJUSTER, CABLE

09119-08014

$3.55

NUT This part replaces 08310-12088.

08310-00087

$2.13

HOSE, OIL (L:512!97) This part replaces 16810-29300.

16810-07520

Unavailable

CLAMP

09401-08401

$1.54

UNION BOLT

09360-06003

$3.76

GASKET

09168-06004

$1.49

HOSE,OIL NO.2 This part replaces 16820-29900.

16820-29901

$6.83

UNION This part replaces 09363-02001.

09363-02002

$8.23

CLIP

09401-04401

$2.06

UNION BOLT, CYLINDER

09360-06009

$6.83

GASKET

09168-06004

$1.49

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

CAP, INSPECTION

11380-27300

$8.12

SCREW This part replaces 02112-06108.

02112-06107

$1.49
