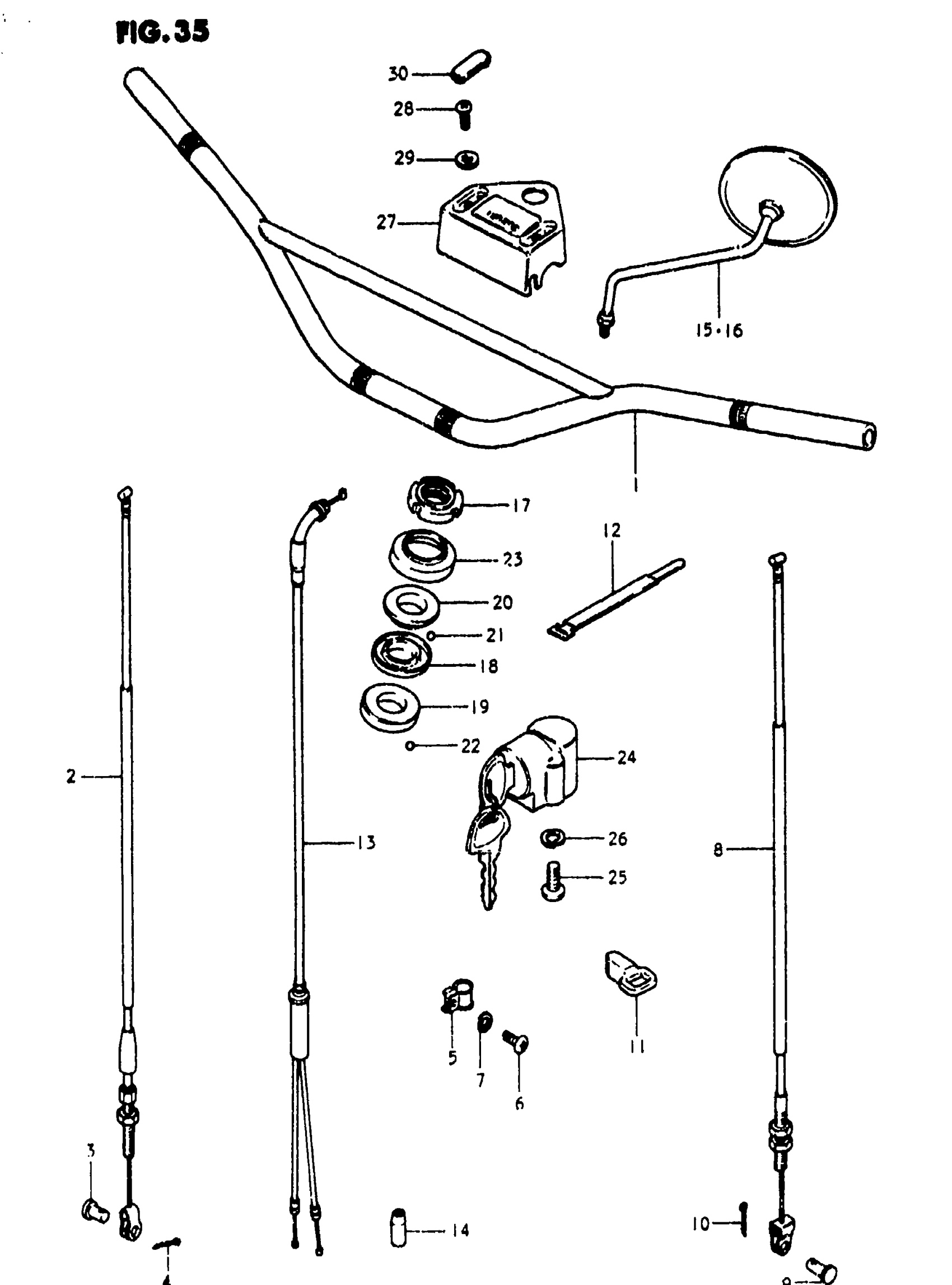

Suzuki TS185 (1981) HANDLEBAR Diagram

HANDLEBAR | MODEL T This part replaces 56110-29404-291.

56110-29405-13L

$251.76

HANDLEBAR | MODEL X This part replaces 56110-29302.

56110-29405-08C

Unavailable

CABLE, FR BRAKE This part replaces 58110-29300.

58110-29303

$40.57

PIN

09200-06013

$2.00

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

GUIDE, CABLE | MODEL T This part replaces 58621-32400.

58621-40401

Unavailable

GUIDE | MODEL X

58621-40401

Unavailable

SCREW This part replaces 02112-06108.

02112-06107

$1.49

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

CABLE,CLUTCH This part replaces 58200-29900.

58200-46090

$14.75

PIN

09200-06011

Unavailable

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

GUIDE,CLUTCH CA This part replaces 58621-29301.

58621-29302

$3.55

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

CABLE ASSY,THRO | MODEL T This part replaces 58300-29900.

58300-29503

$18.45

CABLE ASSY,THRO | MODEL X This part replaces 58300-29901.

58300-29503

$18.45

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

MIRROR ASSY,RR This part replaces 56500-45012.

56500-45014

$64.82

MIRROR ASSY,RR This part replaces 56600-45012.

56600-45014

$64.82

NUT, STEERING STEM

51631-28000

$17.37

RACE,STEERING INNER UPPER

51611-20002

$11.95

RACE, STEERING INNER LOWER

51611-33002

$13.81

RACE,STEERING OUTER UPPER

51621-28000

$11.95

STEEL BALL

06111-06003

$1.49

STEEL BALL

06111-08003

$1.49

DUST SEAL,STEERING UPPER

51643-25001

$4.43

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

SCREW This part replaces 02112-05128.

02112-05127

$1.97

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

COVER STEERING This part replaces 56171-48501.

56171-48502

$24.60

SCREW This part replaces 02112-06128.

02112-06127

$1.84

WASHER This part replaces 08322-21068.

08322-01067

$2.13

CAP PILOT BOX This part replaces 36388-48500.

36388-48501

$5.50
